Simrad

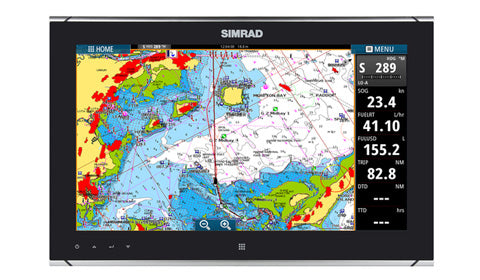

Simrad MO16-T 16 inch Touchscreen High Bright monitor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad MO16-T is a 15.6-inch widescreen high-bright marine monitor with full multi-touch control, designed to maximise viewing area while minimising dash footprint. The 1000-nit, 1366 x 768 display stays clearly visible in direct sunlight, and a low 8 mm flush-mount profile gives a clean glass bridge finish. Both silver and black bezel trims are supplied to complement any helm.
Multi-touch gestures such as pinch-to-zoom make operating a Simrad glass bridge as intuitive as a tablet, and the monitor can also serve as a second screen for other HDMI-capable displays. HDMI, DVI and two composite inputs accept a wide range of devices, with picture-in-picture and on-glass menu keys for setup. NMEA 2000 connectivity supports Simrad backlight control, and a mount-from-front option keeps installation quick and cost-effective. Video cable not included.
PRODUCT DETAILS
- 15.6-inch high-bright multi-touch marine monitor
- 1000-nit sunlight-viewable display, 1366 x 768 resolution
- Slim 8 mm flush-mount glass bridge profile
- Full multi-touch control with pinch-to-zoom
- HDMI, DVI and two composite video inputs
- NMEA 2000 connectivity for Simrad backlight control
- Picture-in-picture with on-glass menu keys
- Mount-from-front option; silver and black bezels included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Screen size | 15.6" widescreen |
| Native resolution | 1366 x 768 |
| Brightness | 1000 nit |
| Touchscreen | Multi-touch |
Connectivity
| Video inputs | 1x HDMI, 1x DVI, 2x composite |
| Network | NMEA 2000 (backlight control) |
Power
| Supply voltage | 10 - 31.2 V DC |
| Power consumption | 20 W |
Physical
| Dimensions (WxHxD) | 400 x 260 x 74 mm |
| Weight | 3.60 kg |
| Flush-mount profile | 8 mm |
Environmental
| Water ingress | IPx6 (dash mounted, front), IPx2 (rear) |
| Operating temperature | -15°C to +55°C |
