Simrad

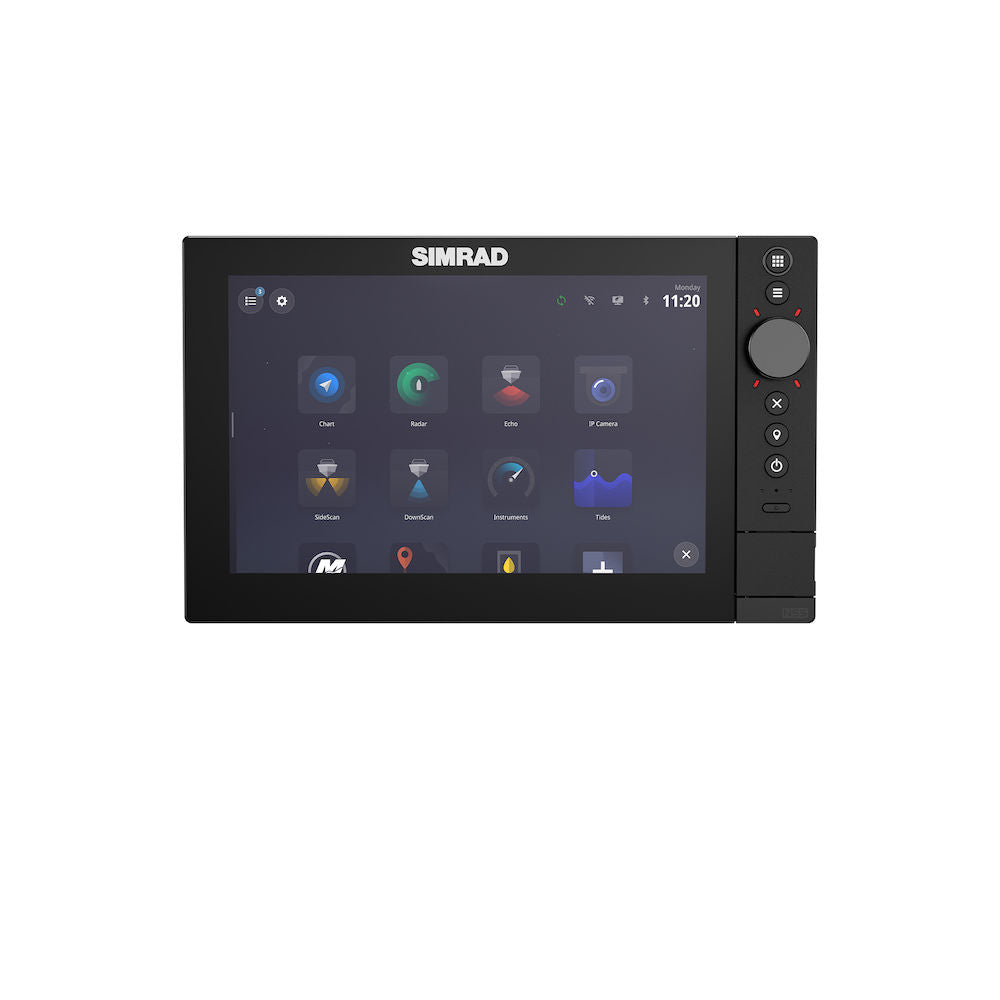

Simrad NSS 4 - 10" Chartplotter Without Built-in Sonar
£2,539.99
/
Tax included.
Shipping calculated at checkout.
000-16275-001
The Simrad NSS 4 10-inch chartplotter, redesigned around a powerful Qualcomm 8-core processor for smooth, fast operation. Touchscreen, rotary dial and keypad work together for full control. This version ships without built-in sonar, with echosounder capability available through an optional external module. Wi-Fi 5 and Gigabit Ethernet are built in.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Navico Extended Warranty
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Redesigned inside and out, NSS® 4 is sleeker, faster and smarter. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful Qualcomm® 8-core processor delivers smoother transitions and faster updates.
PRODUCT DETAILS
- Redesigned 10-inch display with 1200 nits brightness and ultra-wide 80-degree viewing angles
- Powerful Qualcomm 8-core processor for smooth transitions and fast updates
- Triple control: touchscreen, rotary scroll wheel and keypad
- Built-in 10 Hz GNSS receiver (GPS, GLONASS, Galileo, Beidou, QZSS, SBAS)
- Echosounder function can be added with an optional external sonar module
- Wi-Fi 5, X-coded M12 Gigabit Ethernet and NMEA 2000 networking
- IPX6 and IPX7 waterproof rating
- Gimbal bracket or rear mount with supplied hardware
- NSS 4 display unit (10 inch, no sonar)
- Dash gasket
- Sun cover
- Power cable
- Fuse and fuse holder
- Gimbal mount kit (metal bracket, screws and knobs)
- Rear mount kit (brackets, threaded studs, thumb nuts and Allen key)
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 10 inch |
| Resolution | 1280 x 800 px |
| Brightness | 1200 nits (typical) |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right (typical at contrast ratio 10) |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 28 W |
| Fuse rating | 5 A |
| Protection | Reverse polarity and over-voltage (max 32 V) |
Environment
| Operating temperature range | -15 C to 55 C |
| Storage temperature range | -20 C to 60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Connectivity
| GNSS receiver | 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS; SBAS (WAAS) |
| Wi-Fi | Wi-Fi 5 (IEEE 802.11ac) |
| Ethernet | 1 port (X-coded M12 Gigabit) and 1 port (yellow 5-pin) |
| NMEA 2000 | 1 port (Micro-C connector) |
| Video | 1 port video input |
| Data card slot | 2x microSD (SDHC, SDXC) |
Physical
| Dimensions (W x H x D) | 313.76 x 197.27 x 79.55 mm |
| Weight (display only) | 1.8 kg |
| Compass safe distance | 35 cm |
| Mounting type | Gimbal bracket mount or rear mount |
General
| Echosounder | No built-in sonar; echosounder function can be added with an optional external sonar module |
What size and resolution is the screen?
The NSS 4 10-inch has a 10-inch full multi-touch display with a resolution of 1280 x 800 pixels and 1200 nits typical brightness.
Does this model have built-in sonar?
No. This is the chartplotter-only version without a built-in echosounder. Echosounder function can be added with an optional external sonar module.
Does it have a built-in GPS?
Yes. It has a built-in 10 Hz GNSS receiver for GPS and GLONASS, with support for Galileo, Beidou, QZSS and SBAS (WAAS).
How does it connect to other devices?
It has one NMEA 2000 port (Micro-C), Ethernet (an X-coded M12 Gigabit port plus a yellow 5-pin port), Wi-Fi 5 (802.11ac) and a video input.
What is the waterproof rating and supply voltage?
The unit is rated to IPX6 and IPX7 and runs on a 12/24 V DC supply (10 to 31.2 V DC), drawing up to 28 W.
What warranty does it come with?
The NSS 4 is supplied with a 2 year warranty.
