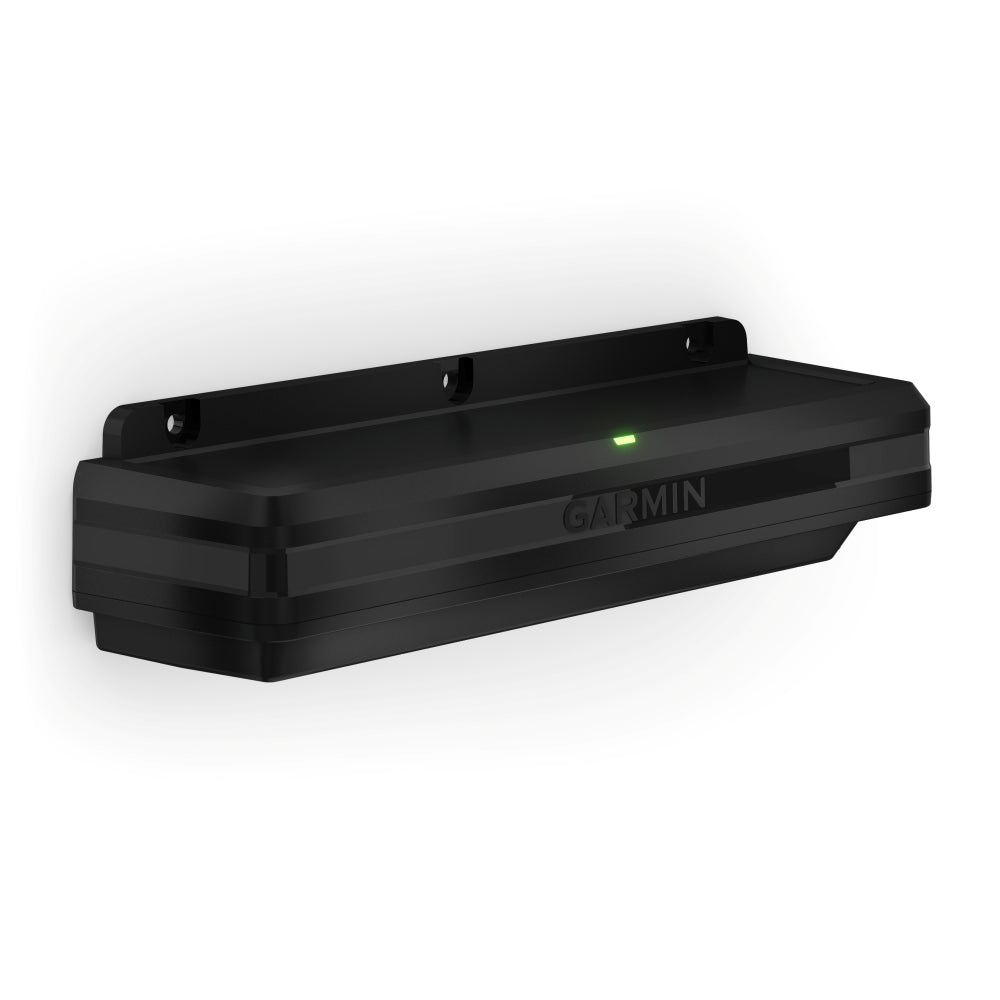

Garmin Spectra™, LC302 LED Control Module
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Spectra LC302 LED control module lets you control onboard LED lighting from your existing Garmin and Fusion electronics, and is the higher-current module in the Spectra range for installations with larger lighting loads. Connected to the boat NMEA 2000 network, it allows lighting colours, effects and brightness to be set from a compatible Garmin chartplotter, a compatible Fusion stereo or the ActiveCaptain app, and lights can be synchronised with music when used with a Fusion system.
The module takes a dedicated 12 or 24 Vdc power feed separate from the NMEA 2000 network and supports a range of LED types including RGB, RGBW, CRGBW and single-channel. It uses a 6 A slow-blow fuse and is sealed to IP67 for the marine environment. It must be used only for LED lighting and not for navigation lights or non-LED lighting.
PRODUCT DETAILS
- Higher-current LED lighting control module
- Control from a Garmin chartplotter, Fusion stereo or ActiveCaptain app
- Connects to the NMEA 2000 network
- Supports RGB, RGBW, CRGBW and single-channel LEDs
- Synchronises lighting with music on a Fusion system
- 12 or 24 Vdc operation with 6 A slow-blow fuse
- Sealed to IP67 for the marine environment
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Input voltage | 12 Vdc systems: 10.8 to 16.0 Vdc; 24 Vdc systems: 21.6 to 32.0 Vdc |
| Fuse | 6 A slow-blow |
| Output | Up to 2 A per LED wiring harness |
Environmental
| Operating temperature | 0 to 50 C (32 to 122 F) |
| Storage temperature | -20 to 70 C (-4 to 158 F) |
| Water resistance | IP67 |
Physical
| Compass-safe distance | 20 cm (7 7/8 in.) |
Connectivity
| NMEA 2000 LEN | 2 |
