Garmin

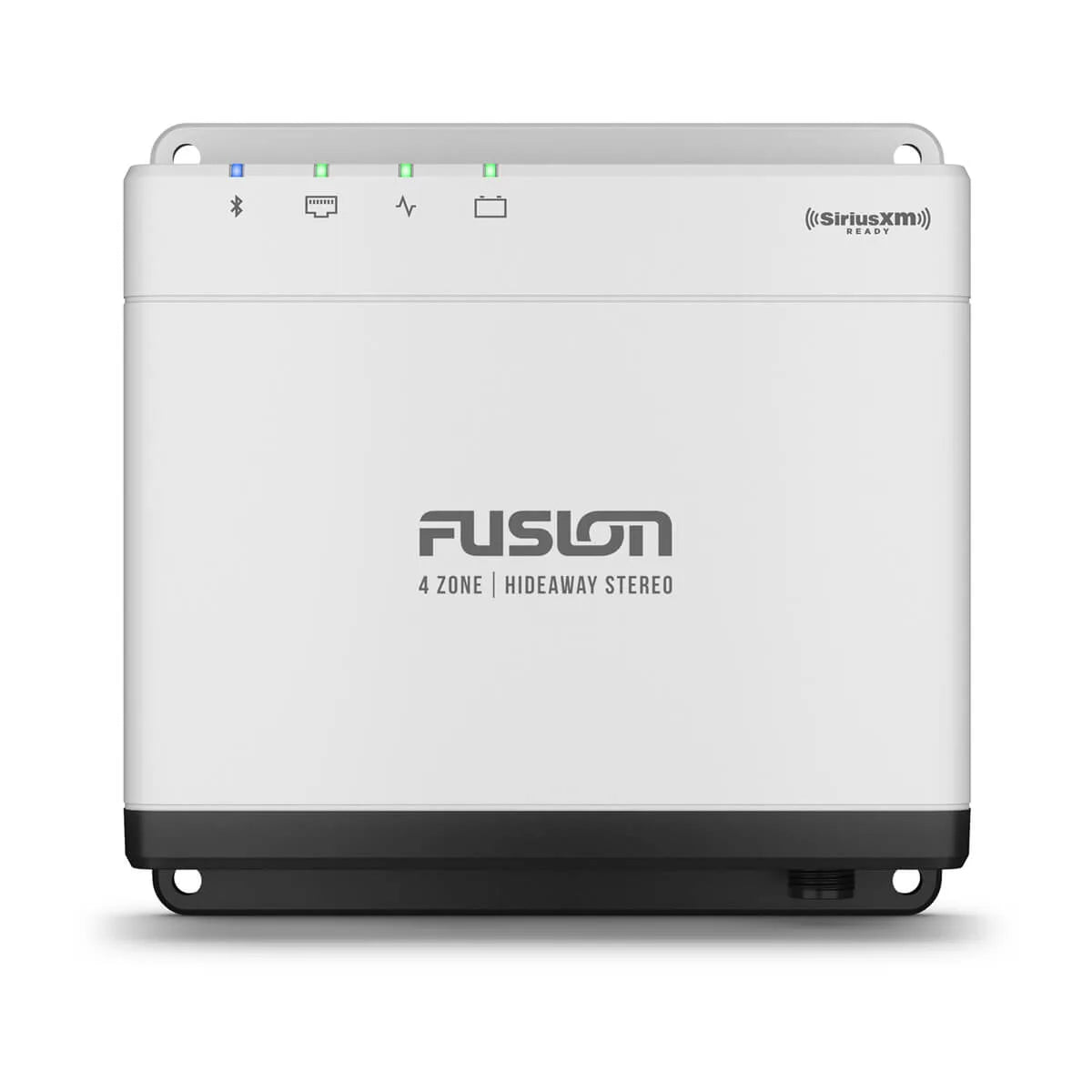

Fusion Apollo MS-WB675 Marine Hideaway Stereo
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Fusion Apollo WB675 hideaway stereo is compact in design yet offers superior audio quality across up to four separate zones you can control independently. With no front panel to fit, it installs discreetly out of sight and is operated through a compatible remote, multifunction display or the Fusion-Link app.
Wi-Fi streaming and Apple AirPlay bring high-quality audio to the boat, while Fusion Digital Signal Processing tunes each zone for the best possible sound. PartyBus networking, Bluetooth, USB, AM/FM, optical audio, DAB+ (module required) and NMEA 2000 connectivity make the WB675 a flexible heart for a premium concealed audio system.
PRODUCT DETAILS
- Compact hideaway design controls up to four separate audio zones
- Wi-Fi and Apple AirPlay streaming for high-quality audio
- Fusion DSP tunes each zone for superior sound quality
- Optical audio input plus Bluetooth, USB, AM/FM and DAB+ ready
- PartyBus networking and NMEA 2000 connectivity for MFD control
- Apollo WB675 hideaway stereo
- Wiring harness
- Mounting hardware
- Stealth antenna
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Built-in amplifier power | 26 W RMS x 4 (4 Ohm), 43 W RMS x 4 (2 Ohm) |
| Peak power | 280 W |
| Amplifier class | Class-D (2 Ohm stereo-stable) |
| Zones | 4 |
| DSP | Built-in Fusion Digital Signal Processing |
| Pre-amp / RCA outputs | RCA pre-out, line-out and subwoofer output |
Sources
| Bluetooth | Yes |
| USB | Yes |
| AM/FM tuner | Yes |
| DAB+ | Optional (DAB+ module required) |
| AUX | Yes |
| Optical audio | Yes |
| Wi-Fi / app | Built-in Wi-Fi and AirPlay streaming, Fusion-Link app |
Connectivity
| NMEA 2000 | Yes (LEN 1, 50 mA) |
| Ethernet (PartyBus) | Yes (wired) |
| Wired remote support | Yes (Apollo ERX400 / NRX remotes) |
Installation
| Mounting | Hideaway / concealed mount |
| Dimensions (H x W x D) | 130 x 130 x 56 mm |
General
| Power supply | 10.8 to 16 V DC |
| Warranty | 2 years |
