Navico
NMEA0183 interface
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This Navico NMEA 0183 interface provides a bi-directional gateway between a NMEA 2000 network and NMEA 0183 devices, letting older or third-party equipment exchange data with a modern Simrad, Lowrance or B&G system. It supports NMEA 0183 version 4.1 and lets you filter the incoming and outgoing sentences and set the transmit frequency, so only the data you need is passed across at the rate you choose.

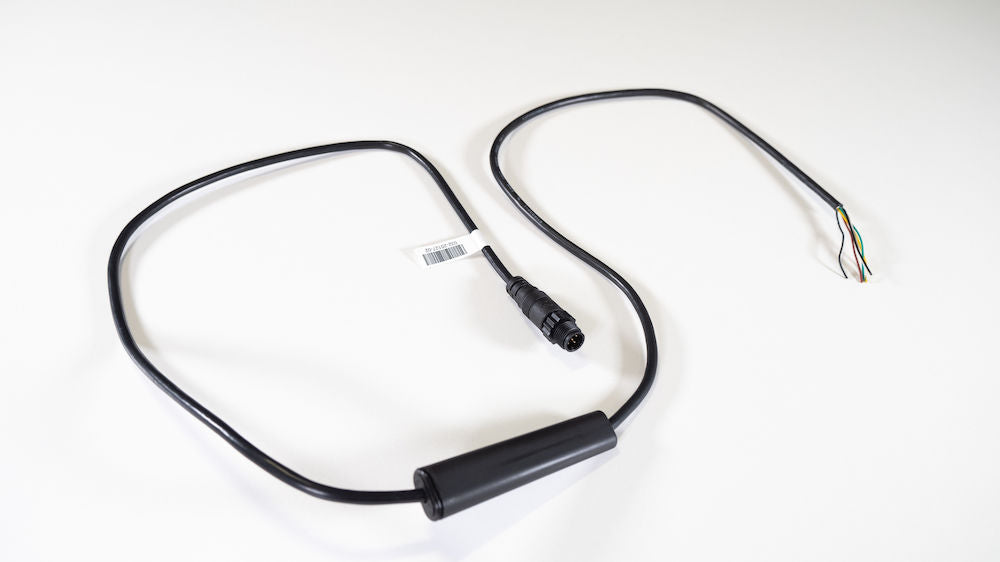

The interface is NMEA 2000 compliant and connects to the backbone with a Micro-C cable, while a 1.8 m Micro-C to bare-wire tail handles the NMEA 0183 connection. It is a simple way to bring legacy instruments, radios or sensors into a current networked helm.
PRODUCT DETAILS
- Bi-directional NMEA 2000 to NMEA 0183 gateway
- Supports NMEA 0183 version 4.1
- Configurable sentence filtering and transmit frequency
- NMEA 2000 compliant, Micro-C connection
- Supplied with a 1.8 m Micro-C to bare-wire cable
- Compatible with Simrad, Lowrance and B&G displays and instruments
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connectivity
| Network | NMEA 2000 (Micro-C) |
| Legacy protocol | NMEA 0183 version 4.1 |
| Direction | Bi-directional gateway |
| Supplied cable | 1.8 m Micro-C to bare wire |
