Actisense NMEA 0183 PC Opto-isolator cable, RS232 DB9 female, shielded (isolated to PC)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

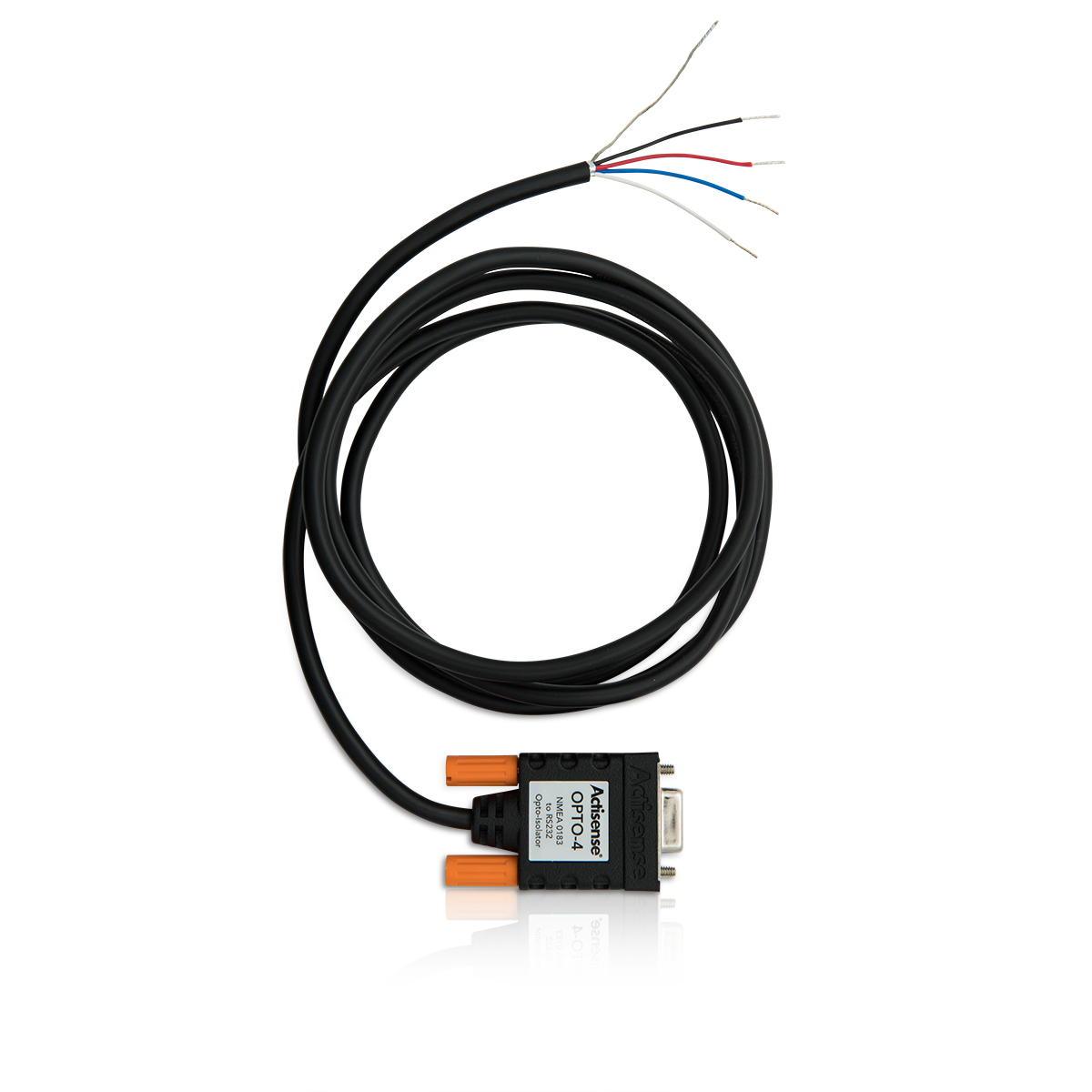

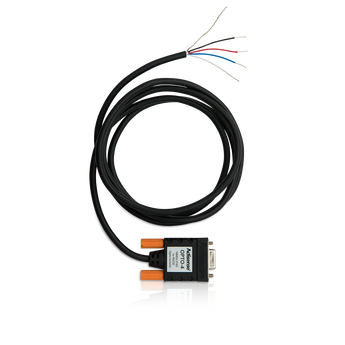

The Actisense OPTO-4 is a serial opto-isolator cable that provides a safe, low-cost way to connect an NMEA 0183 system to a PC. From version 2.0 onwards the NMEA 0183 specification requires isolated, differential listener inputs, but a standard PC RS232 port is neither isolated nor differential. The OPTO-4 bridges that gap, allowing an RS422 or standard RS232 connection to meet the NMEA 0183 listener requirement and protecting equipment from the ground loops common in a marine environment.
The RS232 end is a female 9-pin D-Sub (DB9) connector following the standard RS232 pin-out, and the cable powers itself from the RS232 port's TX and handshaking lines, so in most installations no external supply is needed. An over-moulded case gives excellent water resistance and a small footprint for tight installations.
PRODUCT DETAILS
- Isolates an NMEA 0183 connection to a PC to prevent ground loop damage
- Female 9-pin D-Sub (DB9) RS232 connector with standard pin-out
- Powers itself from the RS232 TX and handshaking lines
- Shielded, over-moulded case for water resistance and a small footprint
- Interfaces RS422 and standard RS232 devices to meet NMEA 0183 listener spec
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connection
| PC Connector | Female 9-pin D-Sub (DB9), standard RS232 pin-out |
| Compatibility | RS422 and standard RS232 NMEA 0183 talkers |
Power
| Source | Self-powered from RS232 TX, RTS and DTR lines (9V to 15V external optional) |
Mechanical
| Construction | Shielded, over-moulded case |
General
| Guarantee | 3 years |
