Garmin
GMR Fantom 12x, Top Assy, Pedestal
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

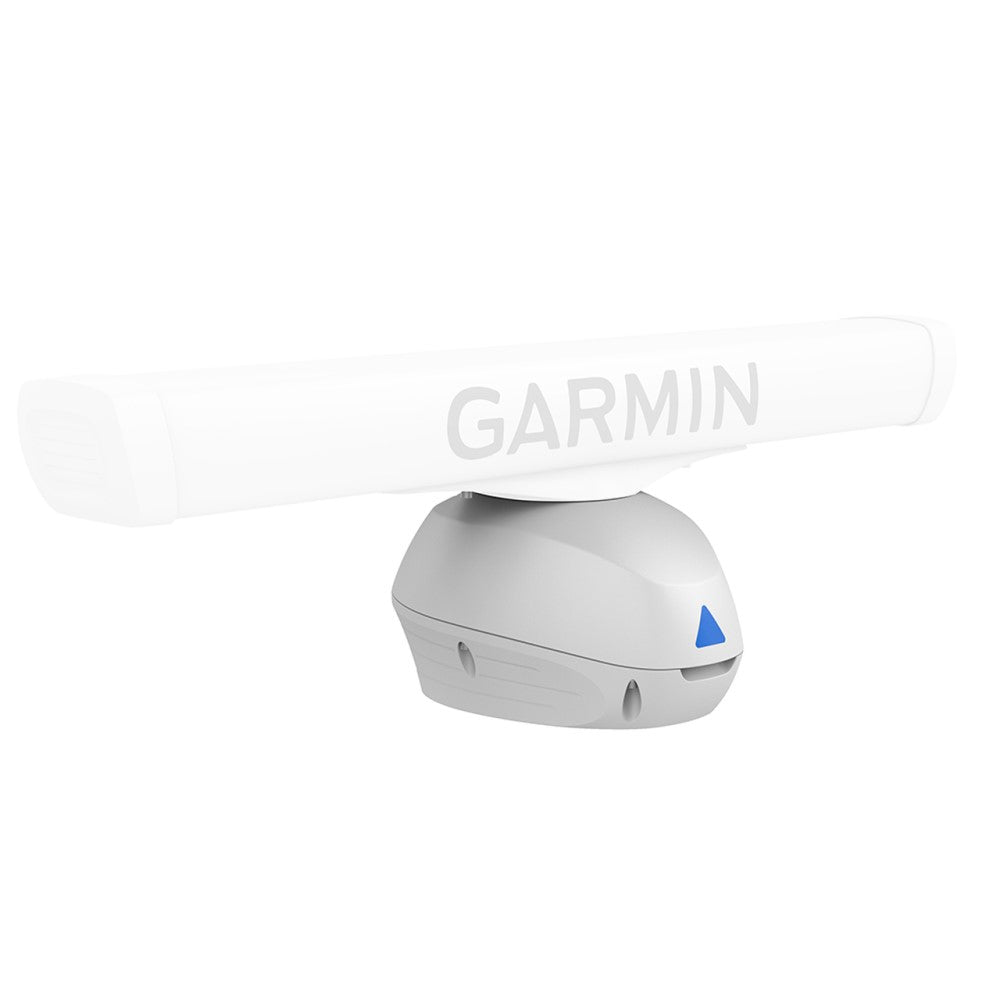

This is the pedestal top assembly, the rotating drive base, for the Garmin GMR Fantom 12x 40W solid-state open-array radar. The antenna array and cable are not included, so it serves as a replacement or service part for an existing Fantom 12x open-array system. Fit a compatible Fantom 4 ft or 6 ft open array to complete the scanner.
The Fantom platform uses 40 W solid-state pulse-compression transmission with MotionScope Doppler processing to highlight moving targets and aid collision avoidance. It detects out to 72 nautical miles, supports MARPA and dual-range, and connects to compatible Garmin chartplotters over the Garmin Marine Network.
PRODUCT DETAILS
- Pedestal top assembly only, no antenna or cable
- 40 W solid-state pulse-compression platform
- MotionScope Doppler highlights moving targets
- Detection range up to 72 nautical miles
- MARPA, dual-range and Garmin Marine Network
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Product Type | Open-array radar pedestal top assembly (drive base) - antenna sold separately |
| Series | GMR Fantom 12x (40W solid-state CHIRP) |
| Connectivity | Garmin Marine Network |
Radar
| Radar Type | Solid-state pulse-compression with MotionScope Doppler |
| Peak Transmit Power | 40 W |
| Maximum Range | 72 nautical miles |
| Antenna Rotation Speed | 24 and 48 rpm |
| Target Tracking | MARPA, up to 10 targets |
| Dual Range | Yes |
| Compatible Antennas | GMR Fantom 4 ft and 6 ft open arrays |
Physical
| Input Voltage | 10 to 32 V DC |
| Weight | 15.8 kg (34.8 lb) |
