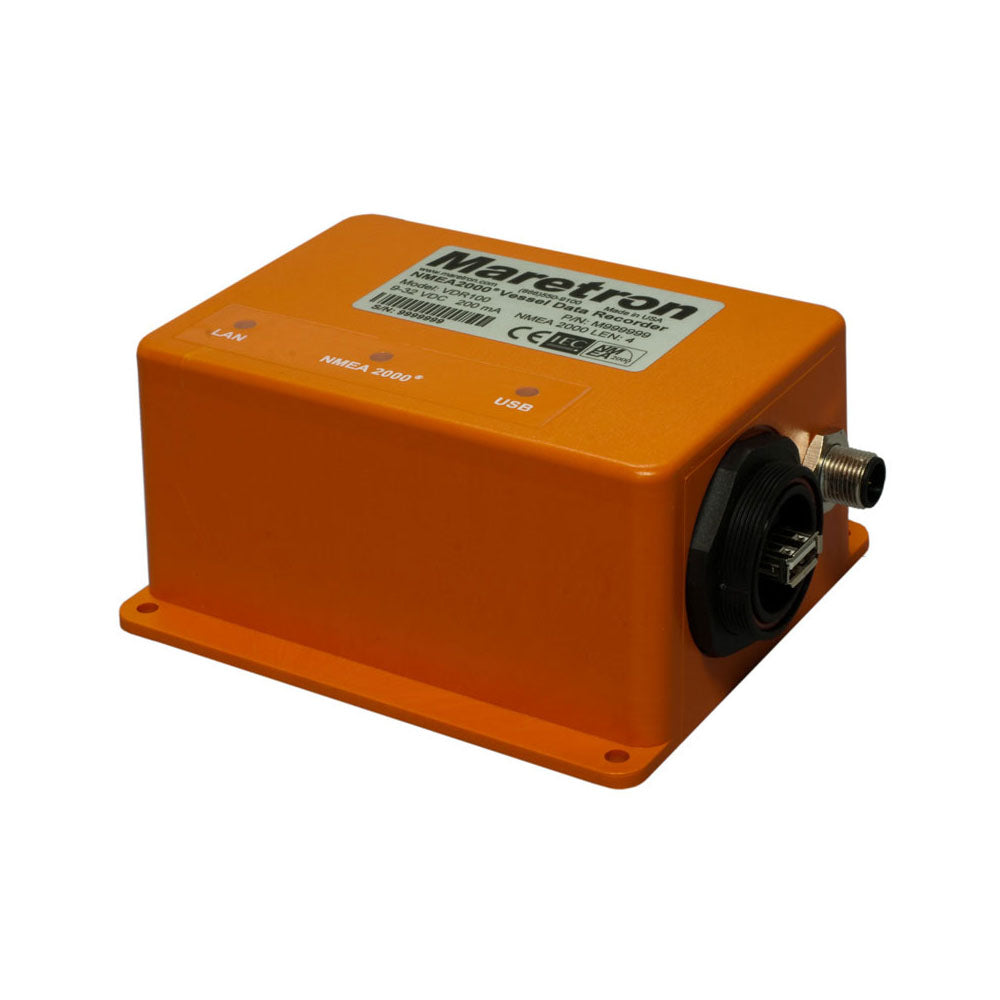

Maretron Vessel Data Recorder Includes M003029
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron VDR100 Vessel Data Recorder captures messages transmitted from every product interconnected on your NMEA 2000 network. The recorded data can be used for performance analysis, vessel tracking, preventive maintenance, network diagnostics and warranty or accident investigation, helping to reduce operating cost and improve safety. Data is stored on solid-state memory via a removable USB flash drive housed under a waterproof cover, and a circular buffer ensures the latest data is always preserved by overwriting the oldest only once memory is full.
The supplied 16GB USB flash drive holds weeks or more of data, and a larger drive can store a year or more. To analyse the recordings, simply remove the drive and run Maretron's free N2KExtractor software on a PC or Mac, which builds a comma-delimited CSV file for graphing in a spreadsheet. A built-in 100 Mb/s Ethernet interface also allows recorded data to be accessed over a LAN from a connected PC running N2KExtractor.
PRODUCT DETAILS
- Records data from every product on the NMEA 2000 network
- Solid-state storage on a removable USB flash drive (16GB supplied)
- Circular buffer preserves latest data, overwriting oldest when full
- Free N2KExtractor software exports CSV for spreadsheet analysis
- 100 Mb/s Ethernet interface for LAN access to recorded data
- Rugged IP67 waterproof housing with waterproof USB cover
- VDR100 Vessel Data Recorder
- 16GB USB Flash Drive (M003029)
- Waterproof USB Flash Drive cover
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | < 200mA |
| Load Equivalence Number (LEN) | 4 |
| Reverse Battery Protection | Yes, indefinitely |
| Load Dump Protection | Yes, energy rated per SAE J1113 |
Interface
| NMEA 2000 Connector | DeviceNet Micro-C (industry standard waterproof) |
| NMEA 2000 Isolation | Opto-isolated |
| USB Standard | USB 2.0 |
| USB Connector | USB Type A (waterproof, for USB flash memory) |
| Ethernet Interface | 100 Mb/s (LAN access via N2KExtractor) |
| Ethernet Connector | RJ-45 (industry standard waterproof) |
Mechanical
| Size | 5.000" x 4.500" x 2.375" (127mm x 114mm x 60mm) including mounting flanges |
| Weight | 12 oz. (340 g) |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -25C to 55C |
| Storage Temperature | -40C to 70C |
NMEA 2000
| NMEA 2000 Standard | Level A |
| PGNs Recorded | All |
Certifications
| Compliance | IEC 61162-3, IEC 60945, FCC and CE Mark |
