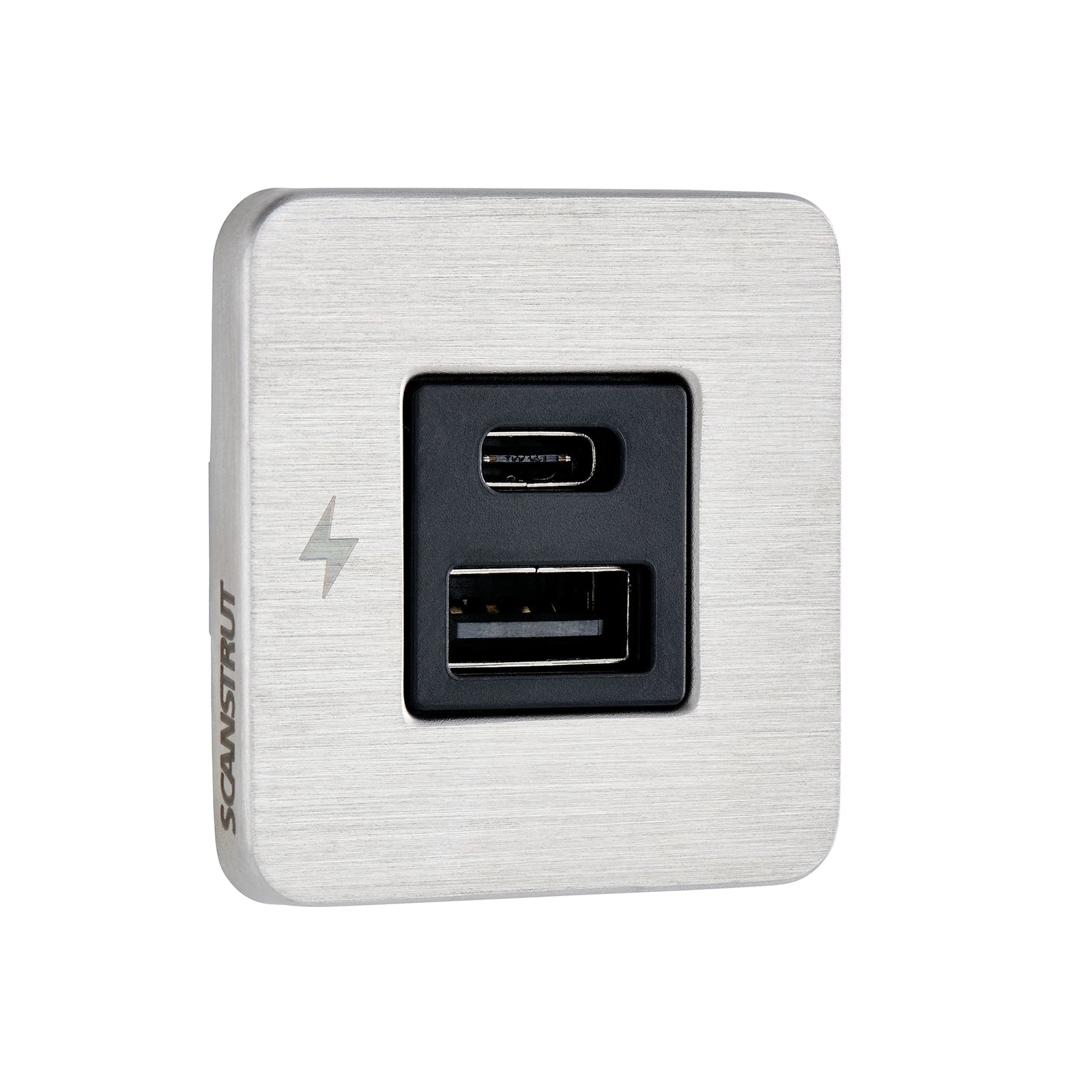

Scanstrut TILE - USB-A / USB-C Interiors Charging Socket Brushed Stainless Bezel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut TILE Series offers sleek, high-performance charging solutions designed specifically for marine interiors. This model combines a USB-A and a USB-C port behind a brushed stainless steel bezel, giving a premium finish that complements helm panels, galleys and cabin spaces.
Built for use on 12V and 24V systems, TILE delivers fast charging for everyday devices while keeping a compact, low-profile footprint. Conformal-coated electronics provide the corrosion resistance needed for life on the water.
PRODUCT DETAILS
- Dual USB-A and USB-C interior charging socket
- Fast charge - 36W on a 12V system, up to 60W on a 24V system
- QC and PD fast-charge protocols for phones, tablets and modern laptops
- Ultra-low profile with a tiny 40mm footprint
- Premium 316 brushed stainless steel bezel
- Conformal coated electronics protected against moisture
- Quick install with a 29mm hole saw
- 12V and 24V compatible (10-32V DC)
- TILE USB-A / USB-C charging socket with 316 brushed stainless steel bezel
- Fixing ring
- No.4 x 25mm (1") fixing screws
- Installation instructions and cutting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Range | TILE Series interior charging socket |
| Bezel Finish | 316 brushed stainless steel |
| Protection | Conformal coated electronics, protected against moisture |
Connectivity
| Port Configuration | 1 x USB-A and 1 x USB-C |
| Charging Protocols | USB-A: QC 3; USB-C: PD 3, QC 4 |
| USB-A Output | 5V/9V/12V at 3A max |
| USB-C Output | 5V/9V/12V at 3A (12V system); up to 20V at 3A (24V system) |
| Total Output | 36W max on 12V system, 60W max on 24V system |
Electrical
| Input Voltage | 10-32V DC (12/24V system) |
| Input Current (max) | 6A (10A fuse recommended) |
| Standby Draw | Less than 0.1W |
| Cable | 18 AWG, minimum bend radius 15mm |
Dimensions
| Bezel (stainless) | 40.40mm (1.59") square |
| Overall Depth | 66.5mm (2.62") |
| Barrel Diameter | 28mm (1.10") |
| Cut-out / Hole Saw | 29mm (1.14") |
| Flying Lead | Approx 150mm (5.9") |
| Min Panel Thickness | 3mm (0.12") |
Approvals
| Certifications | CE, FCC, UKCA, C-Tick, RoHS, WEEE, UN ECE R10 |
