Scanstrut SC-USB-F1 Flip Pro Charger for USB-A and USB-C (12V / 24V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

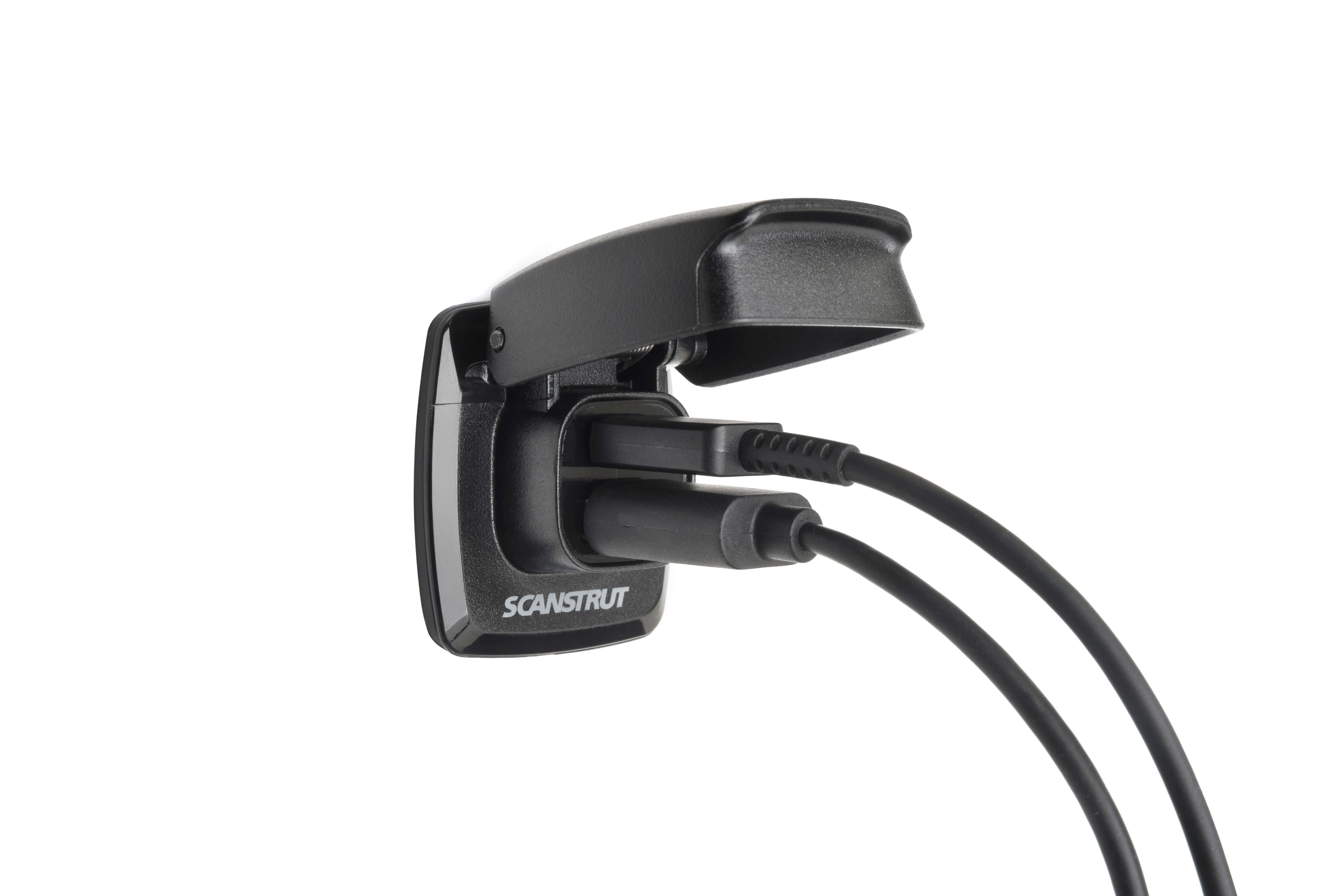

Flip Pro is the original ultra-fast USB charger from Scanstrut, built for 12V or 24V systems and featuring one USB-A and one USB-C port for the optimum choice of connection. It charges at up to 36W on a 12V system or up to 60W on a 24V system, making it ideal for fast-charging phones, large tablets and modern laptops via USB-C.
Constructed from premium marine-grade materials with a super-compact footprint, Flip Pro is IPX4 waterproof with the cover closed and completely washdown-ready. A spring-loaded cap stays tightly closed to protect the ports from the elements, then locks open to shield your cables while charging.
PRODUCT DETAILS
- Dual USB-A and USB-C charge socket
- Fast charge (60W max) up to 2 devices at a time - 36W on 12V, 60W on 24V
- Spring-loaded waterproof cap locks open to protect cables when in use
- IPX4 waterproof when the lid is closed, fully washdown ready
- Marine-grade materials, UV resistant with a 316 stainless hinge and spring
- Super-compact footprint, easy install
- 12V and 24V compatible (10-32V DC)
- Flip Pro USB-A / USB-C charge socket
- Front-fit bezel
- Gasket
- Fixing screws
- Installation instructions and cutting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Range | Flip Pro |
| Lid | Spring-loaded waterproof cap, locks open when in use |
| Materials | Marine-grade, UV resistant, 316 stainless hinge and spring |
Connectivity
| Port Configuration | 1 x USB-A and 1 x USB-C |
| USB-C Output | 5V/9V/12V at 3A (12V system); up to 20V at 3A (24V system) |
| USB-A Output | 5V/9V at 1.5A; 12V at 1.5A/3A max |
| Total Output | 36W max on 12V system, 60W max on 24V system |
Electrical
| Input Voltage | 10-32V DC (12/24V system) |
| Input Current (max) | 6A |
| Standby Draw | 0.01W |
| Connection | 6.3 x 0.8mm spade connectors |
Dimensions
| Bezel | 40.0mm (1.58") square |
| Overall Depth | 52.8mm (2.08") |
| Min Panel Thickness | 3mm (0.11") |
| Max Panel Thickness | 25mm (1") |
Environment
| Waterproof Rating | IPX4 (lid closed) |
Approvals
| Certifications | CE, FCC, UKCA, C-Tick, RoHS |
