Scanstrut
Rokk Wireless - Cove LED 3 Coil 15W Phone Charging Pocket 12/24V
£184.99
/
Tax included.
Shipping calculated at checkout.
SC-CW-10GT

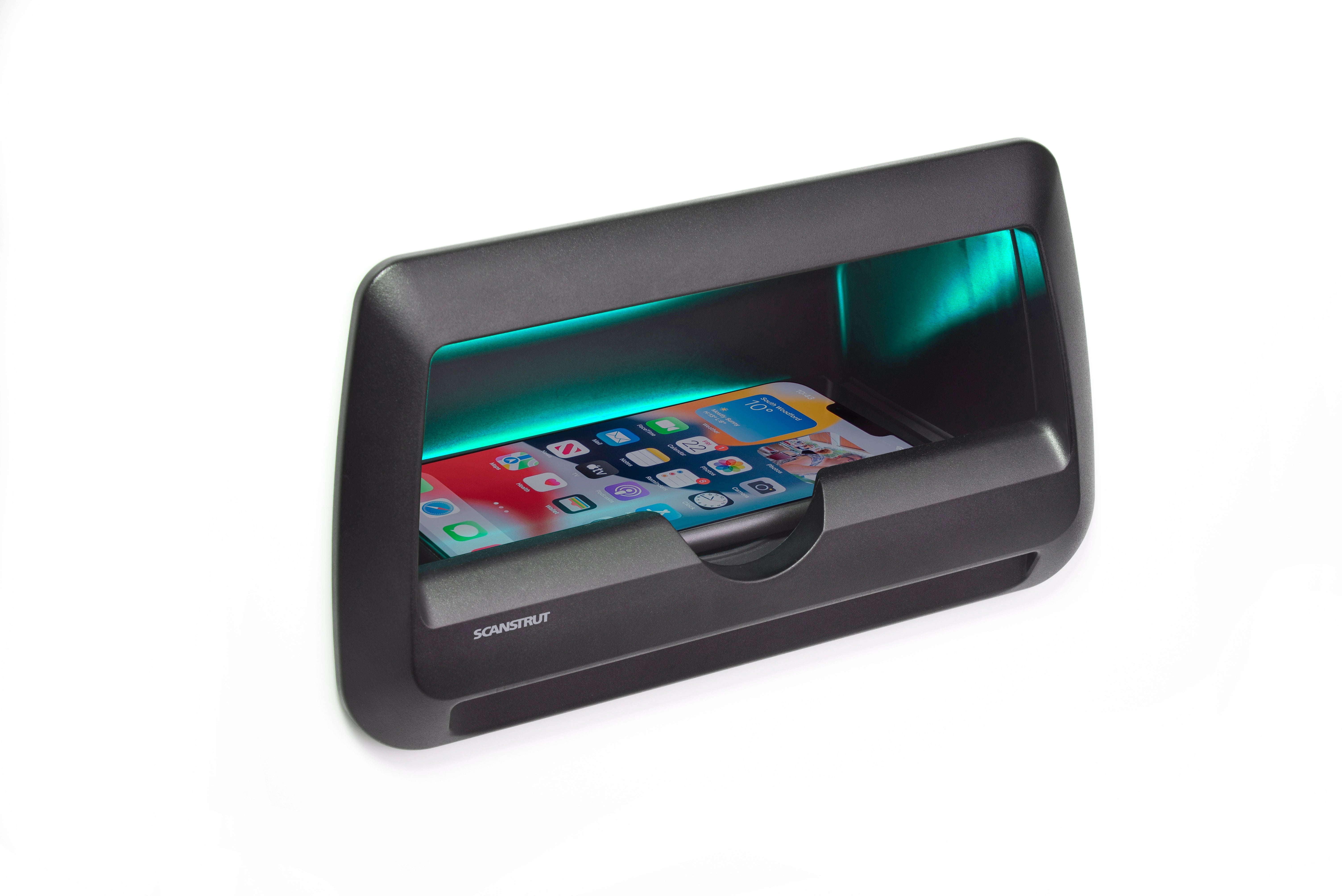

Cove LED 15W 3-Coil is a three-coil charging pocket with LED indication, made for integration into consoles, seating and cabinetry. Slide a phone into the pocket and it charges instantly, with the wider three-coil array making placement easy. Waterproof and wired for 12/24V.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Cove LED, now with 15W three-coil technology. This LED-lit charging pocket integrates neatly into consoles, seating, cabinetry and more, combining a secure home for a phone with clear charging indication.
Slide the phone into the pocket and charging begins instantly, while the three-coil array widens the charging area for easy placement. Fully waterproof and wired for 12/24V, it is built for both marine and RV interiors.
PRODUCT DETAILS
- 15W three-coil charging with overlapping coils for no dead space
- Integrated RGB LED backlight (9-15V DC) for ambient lighting
- Intelligent charging mirrors phone movement to maintain a constant charge at sea or off-road
- IPX6 waterproof front and back
- Pocket design - slide the phone in to start charging instantly
- Perfect for integration into consoles, seating and cabinetry
- Engineered for thermal management to perform in hot climates above 30C (86F)
- 12V and 24V compatible (10-30V DC)
- 5-year warranty
- Cove LED 3-coil 15W pocket unit
- Bezel
- RGB LED driver
- 4 x countersunk fixing screws plus 4 bezel screws
- Installation instructions and cutting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Range | ROKK Wireless 15W 3-Coil |
| Wireless Standard | Qi compatible, three-coil |
| Installation | Pocket with RGB LED backlight, integrates into consoles and cabinetry |
Electrical
| Input Voltage | 10-30V DC (12/24V system) |
| Input Current (max) | 2A |
| Output Power (max) | 15W (12V, 1.25A) |
| Standby Power (max) | Less than 1.2W |
| RGB LED Input Voltage | 9-15V DC |
| RGB LED Input Current (max) | 0.2A |
Dimensions
| Width | 124.4mm (4.9") |
| Length | 218.4mm (8.6") |
| Max Phone Length | 175.3mm (6.9") |
Environment
| Waterproof Rating | IPX6 front and back |
Approvals
| Certifications | CE, UKCA, FCC, RoHS, C-Tick, UN ECE R10, E24, PSE |
Can the charger be installed using mains power?
The ROKK Wireless range is designed for 12/24V electrical systems, but we can supply transformers that enable them to be fitted to a mains supply. As each country has its own power specification, please contact technical@scanstrut.com for more information.
Can I mount the charger overhead or in any orientation?
Yes, you can mount it in any orientation.
Will it charge through my waterproof phone case?
Yes, it will charge through any case under 3mm thick that does not contain any metal.
