Scanstrut APT-LB-01 Central Lightbar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

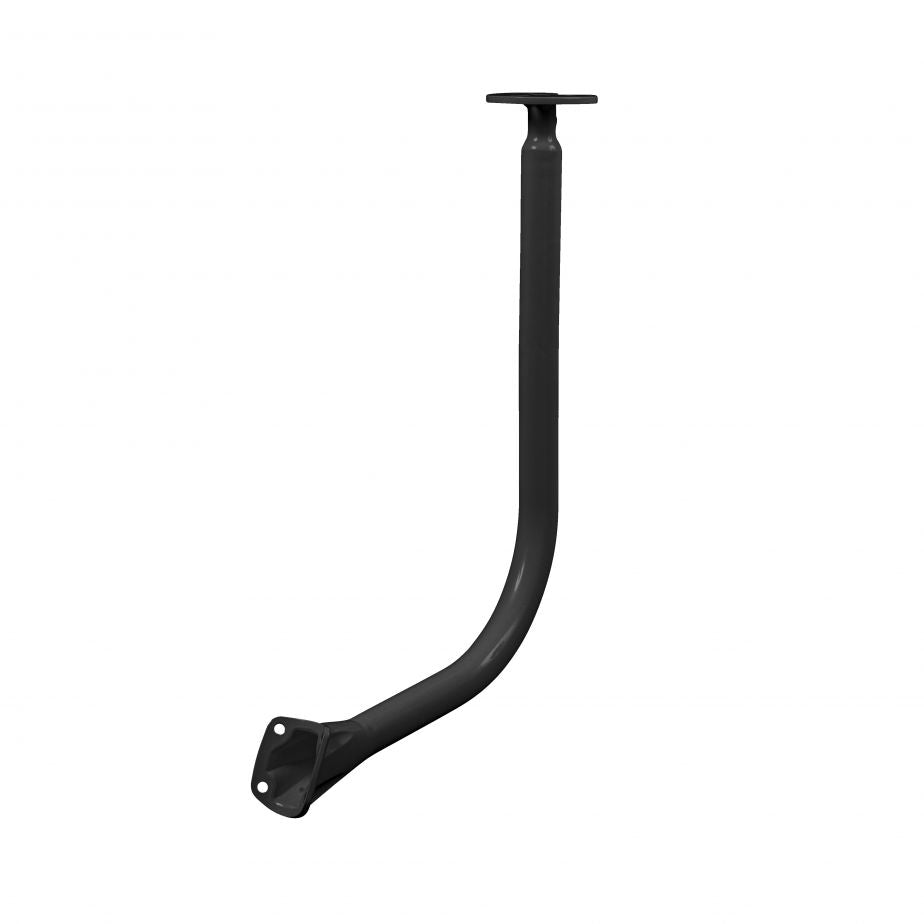

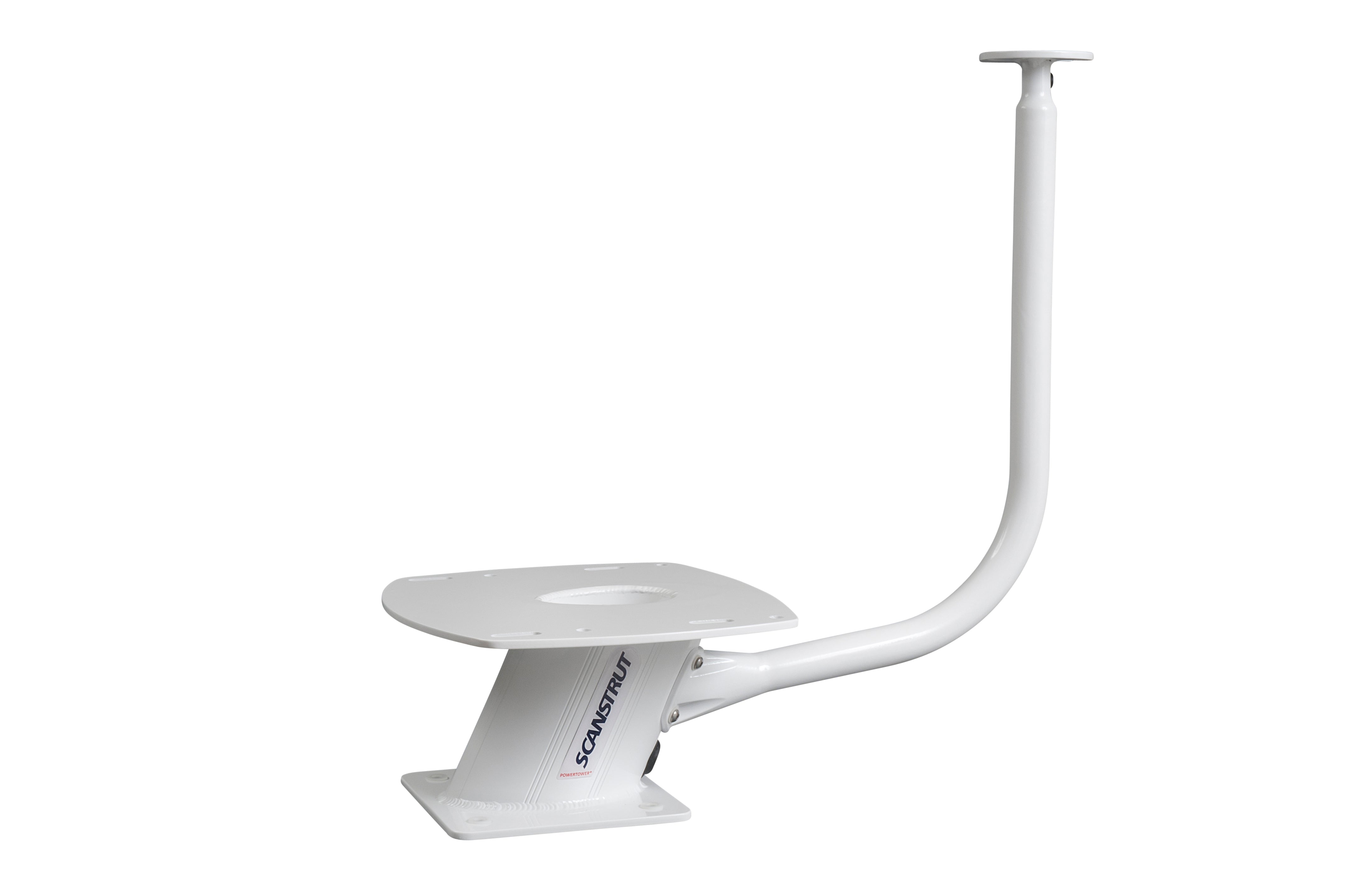

The APT-LB-01 is a central light bar accessory for the Scanstrut aft-leaning Aluminium PowerTower range, providing a neat central mounting position for a navigation light behind the radar.
It bolts straight to the back of the APT-150-01 or APT-250-01 PowerTower and is finished to match using the unique Scanstrut four-step marine paint system, so it withstands the same harsh marine conditions as the mount itself.
PRODUCT DETAILS
- Mounts a navigation light centrally above an aft-leaning PowerTower
- Compatible with leading Hella, Aquasignal, Perko and Lopolight lights
- Internal cable routing through the bar
- Aluminium construction for marine durability
- Central light bar
- Small grommet
- Large grommet
- Small blanking grommet
- Bondloc 243 thread lock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Central navigation light bar for aft-leaning PowerTowers |
| Maximum load per light position | 1.0kg |
Dimensions
| Width | 262mm (10.31") |
Fixing
| Light mounting hole | 50mm (1.97") and 38mm bosses |
Compatibility
| Compatible navigation lights | Hella NaviLED 360, Hella 2984 Series; Aquasignal Series 40, Series 25; Perko 0200 Series, 0455/0466 Series; Lopolight Masthead |
| Fits PowerTowers | Aft-leaning PowerTowers (APT-150-01, APT-250-01) |
Materials
| Material | Aluminium |
