Scanstrut APT-LB-GPS2-01 Central Bar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

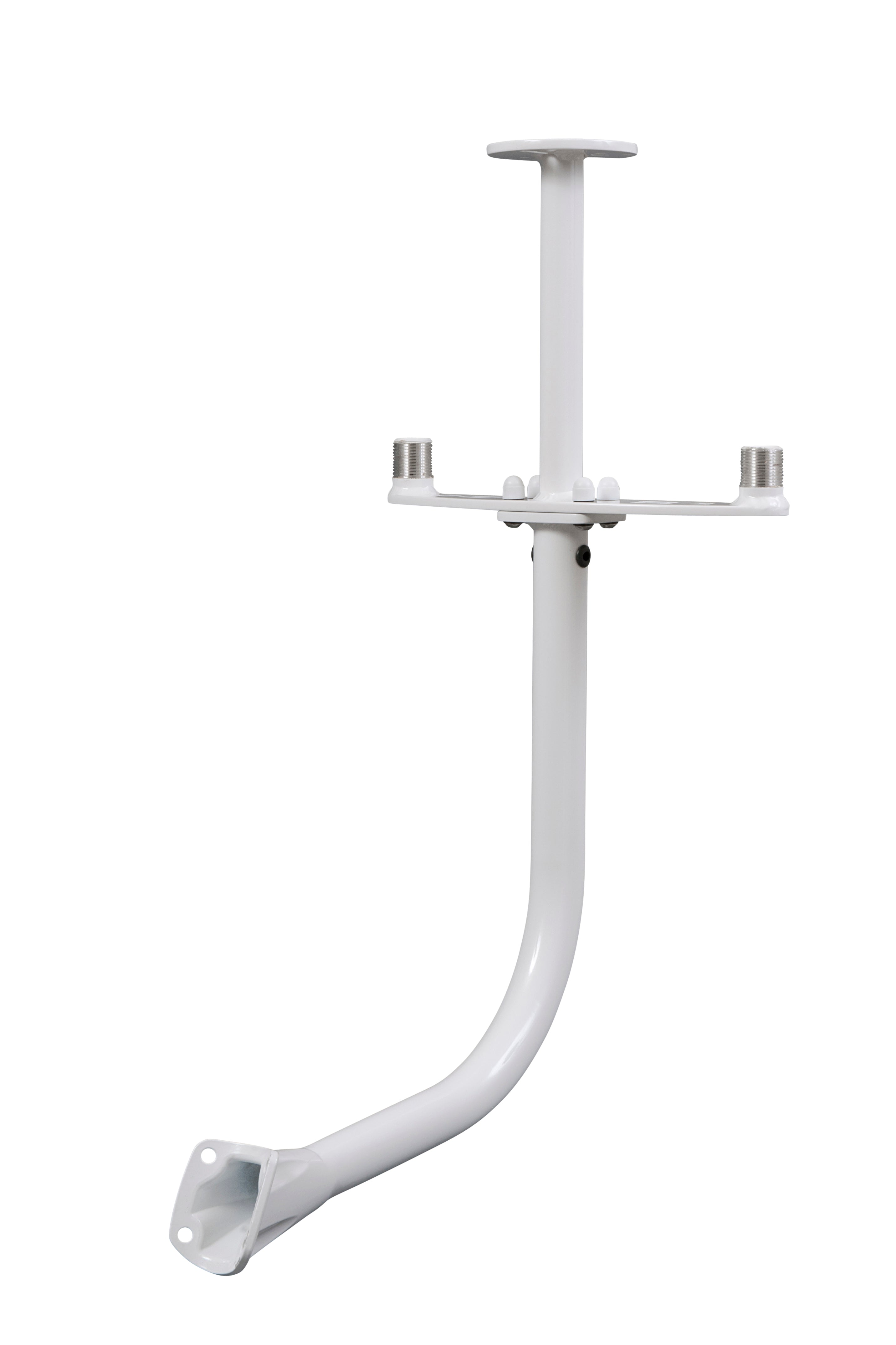

The APT-LB-GPS2-01 is a central bar accessory for the Scanstrut aft-leaning Aluminium PowerTower range, fitted with spreaders to carry two antennas and a single navigation light together behind the radar.
It bolts straight to the back of the aft-leaning PowerTower and is finished to match using the unique Scanstrut four-step marine paint system, so it withstands the same harsh marine conditions as the mount itself.
PRODUCT DETAILS
- Carries two antennas and one navigation light on a single bar
- Centrally mounts above a PowerTower for clean sightlines
- Compatible with leading Hella, Aquasignal, Perko and Lopolight lights
- Internal cable routing through the bar
- LB-GPS2 base and top
- 4x M6x25mm bolts
- 12x M6 nylon insulator washers
- 4x M6 nyloc nuts
- 4x M6 nut covers
- 3x small grommet
- Large grommet
- Small blanking grommet
- 2x cable ties
- Bondloc 243 thread lock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Central bar for two antennas plus one navigation light |
| Maximum load per position | 0.5kg |
Dimensions
| Width | 262mm (10.31") |
| Depth | 250mm (9.84") |
Fixing
| Light mounting hole | 50mm (1.97") and 38mm bosses |
Compatibility
| Compatible navigation lights | Hella NaviLED Pro, Hella 2984 Series; Aquasignal Series 40, Series 25; Perko 0200 Series, 0455/0466 Series; Lopolight Masthead |
Materials
| Material | Aluminium |
