Scanstrut LMB-F1 Self Levelling Radar Mount – Backstay
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut LMB-F1 is a self-levelling backstay radar mount that holds your radar steady and level with the horizon, even as the boat heels under sail or rolls in a seaway. A fine-tuned damping system reacts to changes in heel angle, so the radome stays horizontal and continues to give a clear, reliable picture when you need it most.
This forward-leaning version mounts ahead of the backstay and stands 2.6m (8'6") high, lifting the radar well clear of crew and deck gear while keeping the aft deck free from obstruction. Positioning the dome forward also helps keep it away from sources of interference.
Built around a machined aluminium damping chamber and a 316 stainless steel radar cradle, the LMB-F1 is entirely maintenance-free and needs no power to operate. It is designed to fit the most up-to-date radars from Garmin, Raymarine and B&G.
PRODUCT DETAILS
- Self-levelling design keeps the radar scanner horizontal as the yacht heels (plus or minus 8 degrees)
- Mounts a single radome to the backstay, clear of the deck and rigging
- Fits backstay cables from 7mm to 14mm diameter
- Supplied with a 2580mm (102") mounting pole in two sections with a joiner
- Can be deck, transom or chainplate mounted using the optional chainplate adapter
- Optional 0.65M and 1.3M pole extensions available

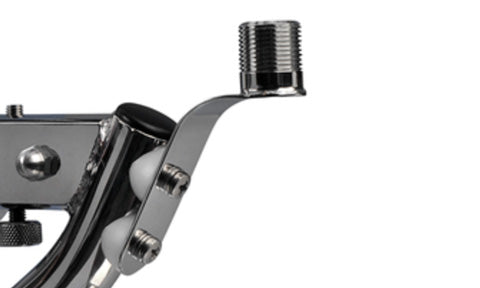

- GPS antenna can be added using the LM-GPS bracket

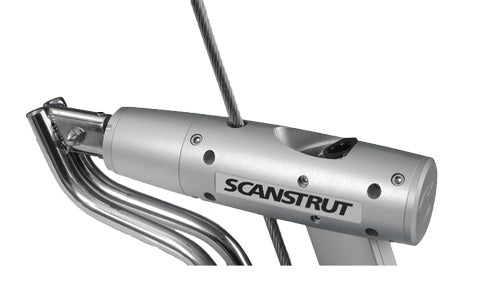

- Self-levelling backstay radar mount assembly

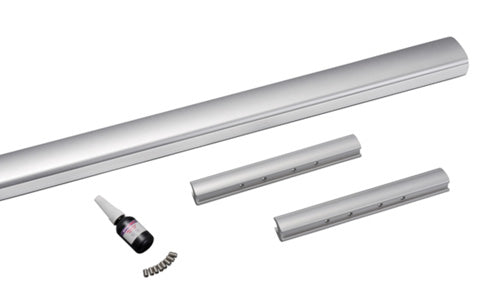

- Mounting pole (2 x 1.3M lengths with joiner piece)
- Backstay clamp components
- M8 and M6 stainless steel fixings, washers, Nyloc nuts and spring washers
- M8 castle nut and split pin
- M8 thumbscrews
- Nylon spacers, shoulders and washers
- Threadlock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Backstay-mounted self-levelling radar mount |
| Self-levelling range | Plus or minus 8 degrees |
| Radar capacity | Single radome (GPS antenna can be added using part LM-GPS) |
Dimensions
| Approx. dome offset (forward) | 240mm (9.4") |
| Approx. dome offset (aft) | 145mm (5.7") |
| Mounting pole length | 2580mm / 102" (supplied as 2 x 1.3M lengths with a joiner piece) |
| Base footprint | 30mm (1.2") x 43.5mm (1.5") |
| Deck mounting hole centres | 112 - 148mm (4.4" - 5.8") |
| Radar scanner standoff | 20 - 50mm (0.8" - 2.0") |
Fixing
| Base fixing holes | 2 x diameter 8mm |
| Backstay cable diameter | 7mm to 14mm (0.27" to 0.55") |
Compatibility
| Optional pole extensions | LMB-EXTSHORT (0.65M), LMB-EXTLONG (1.3M) |
| Optional accessories | Chainplate adapter for transom or chainplate mounting; LM-GPS GPS antenna bracket |
| Mounting positions | Deck mounted, transom mounted or chainplate mounted |
