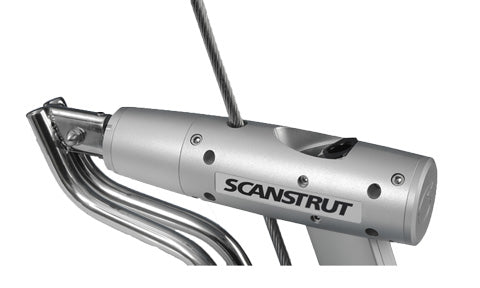

Scanstrut LMB-F2 Self Levelling Radar Mount – Backstay
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut LMB-F2 is a self-levelling backstay radar mount that keeps your radar steady and level with the horizon as the boat heels under sail or rolls offshore. A fine-tuned damping system reacts to changes in heel angle, holding the radome horizontal so it delivers a clear, dependable picture in challenging conditions.
This forward-leaning version mounts ahead of the backstay and stands 2.6m (8'6") high, raising the radar clear of crew and deck gear while leaving the aft deck unobstructed and helping keep the dome away from interference. The LMB-F2 is configured to carry the heavier Furuno domes.
Constructed around a machined aluminium damping chamber and a 316 stainless steel radar cradle, it is entirely maintenance-free and requires no power. It is designed to fit the most up-to-date radars from Furuno.
PRODUCT DETAILS
- Self-levelling design keeps the radar scanner horizontal as the yacht heels (plus or minus 8 degrees)
- Mounts a single radome to the backstay, clear of the deck and rigging
- Fits backstay cables from 7mm to 14mm diameter
- Supplied with a 2580mm (102") mounting pole in two sections with a joiner
- Can be deck, transom or chainplate mounted using the optional chainplate adapter
- Optional 0.65M and 1.3M pole extensions available
- GPS antenna can be added using the LM-GPS bracket
- Self-levelling backstay radar mount assembly
- Mounting pole (2 x 1.3M lengths with joiner piece)
- Backstay clamp components
- M8 and M6 stainless steel fixings, washers, Nyloc nuts and spring washers
- M8 castle nut and split pin
- M8 thumbscrews
- Nylon spacers, shoulders and washers
- Threadlock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Backstay-mounted self-levelling radar mount |
| Self-levelling range | Plus or minus 8 degrees |
| Radar capacity | Single radome (GPS antenna can be added using part LM-GPS) |
Dimensions
| Approx. dome offset (forward) | 240mm (9.4") |
| Approx. dome offset (aft) | 145mm (5.7") |
| Mounting pole length | 2580mm / 102" (supplied as 2 x 1.3M lengths with a joiner piece) |
| Base footprint | 30mm (1.2") x 43.5mm (1.5") |
| Deck mounting hole centres | 112 - 148mm (4.4" - 5.8") |
| Radar scanner standoff | 20 - 50mm (0.8" - 2.0") |
Fixing
| Base fixing holes | 2 x diameter 8mm |
| Backstay cable diameter | 7mm to 14mm (0.27" to 0.55") |
Compatibility
| Optional pole extensions | LMB-EXTSHORT (0.65M), LMB-EXTLONG (1.3M) |
| Optional accessories | Chainplate adapter for transom or chainplate mounting; LM-GPS GPS antenna bracket |
| Mounting positions | Deck mounted, transom mounted or chainplate mounted |
