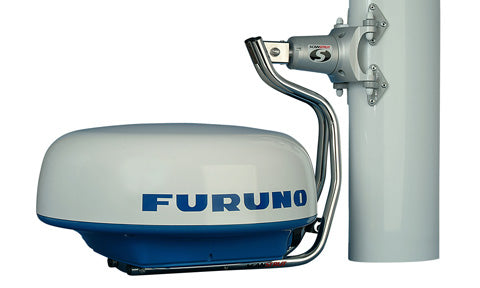

Scanstrut LMM-2 Self Levelling Radar Mount – Mast
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut LMM-2 is a self-levelling mast mount that keeps your radar steady and level with the horizon as the boat heels under sail or rolls offshore. Holding the radome horizontal allows the radar to give a clear, dependable picture in the conditions where a fixed mount would lose its return.
Mounted on the mast, the LMM-2 uses a fine-tuned hydraulic damping system that reacts to major changes in the boat's heel angle, positioning the radar high on the rig for the widest coverage. This version is configured to carry the heavier Furuno domes.
The mount is entirely maintenance-free and requires no power to operate. It is designed to fit the most up-to-date radars from Furuno.
PRODUCT DETAILS
- Self-levelling design keeps the radar scanner horizontal as the yacht heels (plus or minus 8 degrees)
- Mounts a single radome directly to an aluminium mast
- Suits aluminium masts with a minimum width of 65mm (2.6") and wall thickness of 2mm to 5mm
- Designed to detach from the mast under overload or impact to protect the rig
- Supplied with a stainless steel safety lanyard that independently retains the radar
- Offset mounting holes accommodate Raymarine domes
- Mast self-levelling radar mount assembly with mounting feet
- Stainless steel safety lanyard with lacing eye
- 4.8 x 12mm pop rivets (x12) and 4.8 x 12mm rivets (x2)
- M6 x 35mm and M6 x 20mm bolts with M6 Nyloc nuts, washers, spring washers and domed caps
- M8 castle nut, M8 x 36mm bolt, washers and split pin
- IP grommet
- Cable ties (x4)
- Threadlock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Mast-mounted self-levelling radar mount |
| Self-levelling range | Plus or minus 8 degrees |
| Radar capacity | Single radome (GPS antenna can be added) |
| Safety feature | Designed to detach from the mast in the event of an overload or impact; supplied with a safety lanyard |
Fixing
| Minimum mast width | 65mm (2.6") |
| Mast wall thickness | 2mm (5/64") to 5mm (3/16") |
| Rivet drill size | Diameter 4.8mm (3/16") |
Materials
| Suitable mast material | Aluminium masts (consult Scanstrut for non-aluminium masts) |
Compatibility
| Radar fixing pattern | Offset mounting holes for Raymarine domes (excluding Quantum, which mounts centrally) |
