Scanstrut

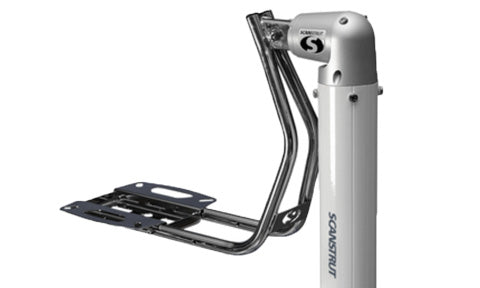

Scanstrut LMP-2 Self Levelling Radar Mount – Pole
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut LMP-2 is a self-levelling pole mount that keeps your radar steady and level with the horizon as the boat heels under sail or rolls offshore. Holding the radome horizontal allows the radar to give a clear, dependable picture in the conditions where a fixed pole mount would lose its return.
Designed to fit onto a radar pole, the LMP-2 uses a fine-tuned hydraulic damping system that reacts to major changes in the boat's heel angle, and comes with the base and pole clamps needed to fit it. This version is configured to carry the heavier Furuno domes.
The mount is entirely maintenance-free and requires no power to operate. It is designed to fit the most up-to-date radars from Furuno.
PRODUCT DETAILS
- Self-levelling design keeps the radar scanner horizontal as the yacht heels
- Pole mount holds a single radome clear of the deck and rigging
- Supplied with a 3" pole and 1200mm adjustable strut (other strut lengths available)
- Strut fits a 25mm (1") rail as standard, with 32mm (1.25") rail clamps also available
- Adjustable base for fine levelling on deck
- Self-levelling radar mount with 3" pole
- 1200mm adjustable strut
- Adjustable base
- Deck pad eye
- 3" pole clamp and rail stand off
- Cover strip
- M6 and M8 stainless steel fixings
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Pole-mounted self-levelling radar mount |
| Radar capacity | Single radome |
Dimensions
| Approx. dome offset | 150mm / 5.9" |
| Pole | 3" pole, 2.5M long (2580mm / 102" max overall) |
| Strut length (standard) | 1200mm (600mm, 900mm and 1800mm also available) |
| Radar scanner width (max) | 164mm / 6.4" |
| Adjustable base width | 90mm / 3.54" |
Fixing
| Deck pad eye fixing | 4 x M6, hole centres 64mm (2.52") x 47.6mm (1.87") |
| Adjustable base fixing | 3 x M8, 60mm (2.36") centres |
Compatibility
| Rail clamp | To fit 25mm (1") rail as standard; 32mm (1.25") rail clamps also available |
No videos available for this product.
No frequently asked questions for this product.
