Scanstrut

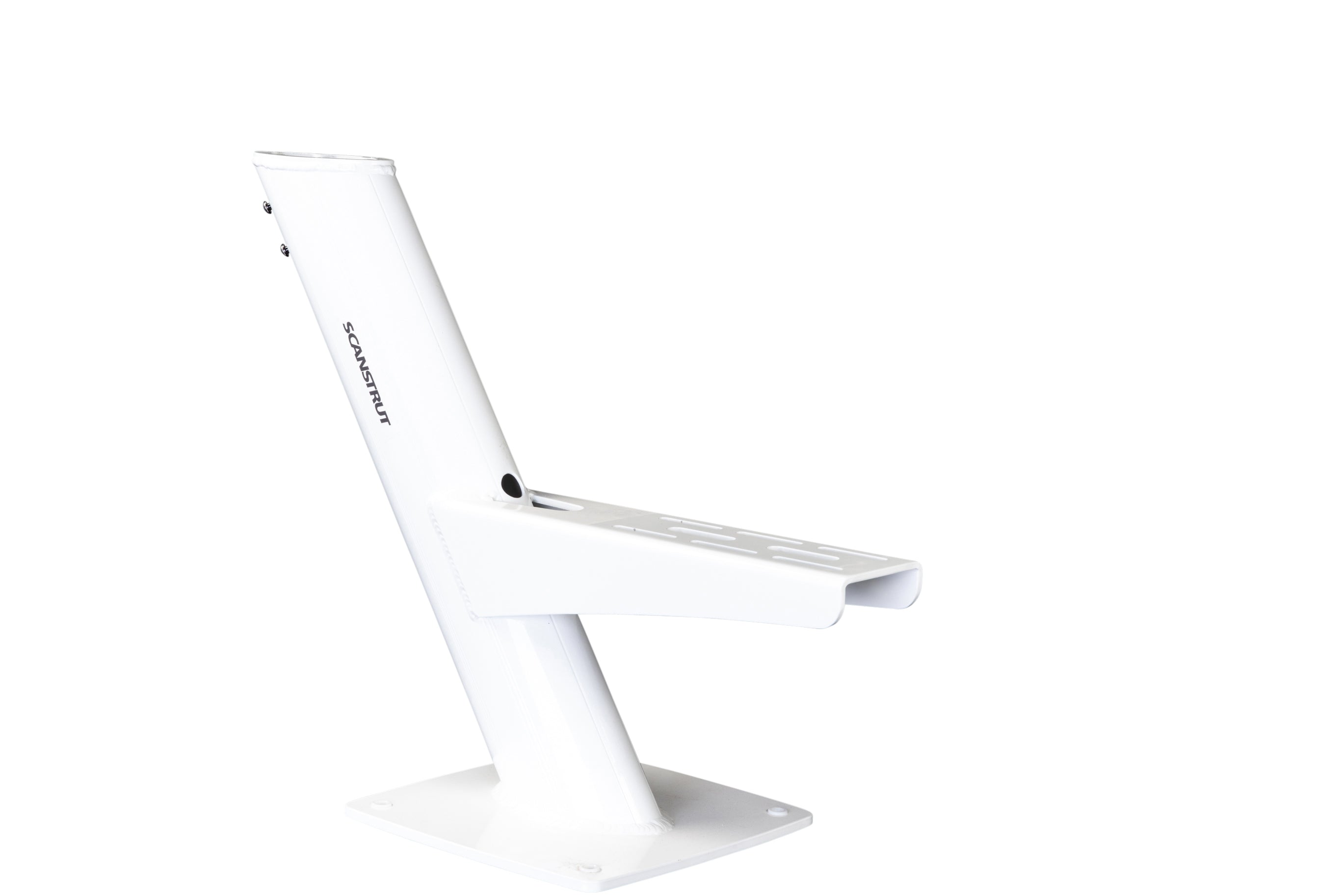

Scanstrut Modular Dual PowerTower® Radome Strut
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Modular Dual PowerTower is a compact, fully customisable mounting system that lets you build the ultimate combination of equipment for your boat on a single footprint. The DPT-R radome strut is designed to carry a closed-dome radar together with a Satcom dome, camera or Starlink, with or without navigation lights.
Constructed from premium marine-grade aluminium and finished with the unique Scanstrut four-step marine paint system, it is engineered for the harshest conditions at sea. The radar bolts straight on using pre-drilled holes, so there is no need to cut its connectors and no marine sealant is required.
This strut does not include a base or top plate; the appropriate plates are ordered separately to match your chosen equipment combination, and a single central light bar can be bolted to the back of the mount.
PRODUCT DETAILS
- Stacks a radar radome and a satcom dome or camera on one mount
- Modular plates carry two devices from a single deck penetration
- Aluminium construction for marine durability
- Optional central light bar mounting point
- Dual PowerTower with radome plate and satcom or camera plate
- 4x M6x16mm bolts
- 2x cable grommet
- DPT gasket
- 4x M10 nylon shoulder washers
- Blanking plug
- Base seal
- Plate fixing hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Modular dual PowerTower, radome strut |
Dimensions
| Overall height | 525mm (20.67") |
| Base footprint | 291mm x 230mm (11.46" x 9.06") |
Fixing
| Base hole diameter | 12.30mm (0.48") |
| Cable hole-saw size | 50-70mm (2" - 2.75") |
| Fixing drill bit | 10.5mm (27/64") |
| Deck fasteners | 4x M10 x 25mm+ (not supplied) |
Materials
| Material | Aluminium |
