Scanstrut PTM-R1-S40 Tapered Radar Mast
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

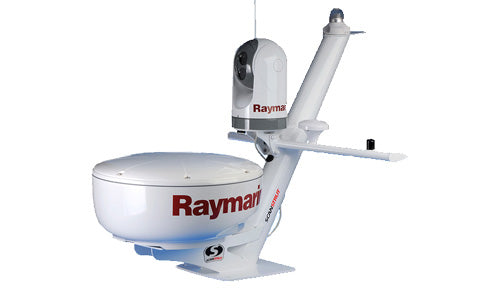

The Scanstrut PTM-R1-S40 Tapered Mast is the all-in-one combination mount that brings your radar, Satcom, lights, GPS and VHF antennas, cameras and search lights together on one streamlined tapered mast, with each item perfectly positioned for maximum performance.
This 3 Device configuration adds dedicated Satcom provision: it is designed to fit one radar, one 40cm Satcom dome and one vessel camera, with space for up to four antennas and a navlight. It accepts 18" and 24" radomes, the hollow wings and stem keep all cabling concealed, and the compact base footprint matches that of the Dual PowerTower. The wings are removable for low-cost shipping and the undrilled top plate takes a custom light.
Made from marine-grade aluminium and finished with a four-step paint system, the PTM-R1-S40 keeps a full electronics package neatly arranged and protected in even the harshest conditions.
PRODUCT DETAILS
- Tapered radar mast carries a radar plus camera and antennas on a single self-supporting pole
- Supplied with a dedicated Simrad mounting plate (DPT-S-PLATE-02)
- Overall height 808mm (31.83")
- Adjustable radar plate (210mm to 330mm travel) sets the scanner level
- Supplied with a FLIR M100/M200 series camera plate
- Integrated GPS / VHF / Navtex antenna wings (1" x 14 TPI, up to 1.5kg per wing)
- Large 446mm x 393.2mm base plate spreads the load on deck
- Tapered radar mast (PTM-R-S40)
- Left-hand and right-hand mounting wings
- Radar mounting plate (DPT-R-PLATE-02)
- Simrad mounting plate (DPT-S-PLATE-02)
- FLIR M100/M200 series camera plate
- Two cover plates and base seal
- Cable grommets (diameter 16mm x2, diameter 23mm x3)
- Tube caps and M6 nut covers
- FLIR M100/M200 riser kit (plate, socket head bolts, washers and nuts)
- M6, M8, M10 and M5 stainless steel fixings, washers and nuts
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Product type | Tapered radar mast (Simrad S-series / 40 mounting) |
Dimensions
| Overall mast height | 808mm (31.83") |
| Base to radar plate (min/max) | Min 518mm (20.4") to max 581mm (22.9") |
| Radar plate travel | Min 210mm (8.3") to max 330mm (12") plate centre |
| Base plate size | 446mm (17.56") x 393.2mm (15.48") |
Fixing
| Base plate fixing holes | 4 x diameter 10mm (0.39") |
| Radar plate fixing holes | 4 x diameter 11mm (0.42") and 4 x diameter 9mm (0.35"), on 170mm (6.69") and 141.5mm (5.57") centres |
| Radar mounting plate (DPT-S-PLATE-02) | 4 x diameter 8.5mm (0.33") on 100mm (4.9") centres, 4 x diameter 9mm (0.35") on 134mm (6.3") centres and 4 x diameter 8mm (0.31") on 233mm (9.9") centres |
Compatibility
| Camera mounting | Supplied with a FLIR M100/M200 series camera plate |
| GPS / VHF / Navtex attachment | 1" x 14 TPI thread, small and medium antenna only, max 1.5kg per wing |
