Garmin

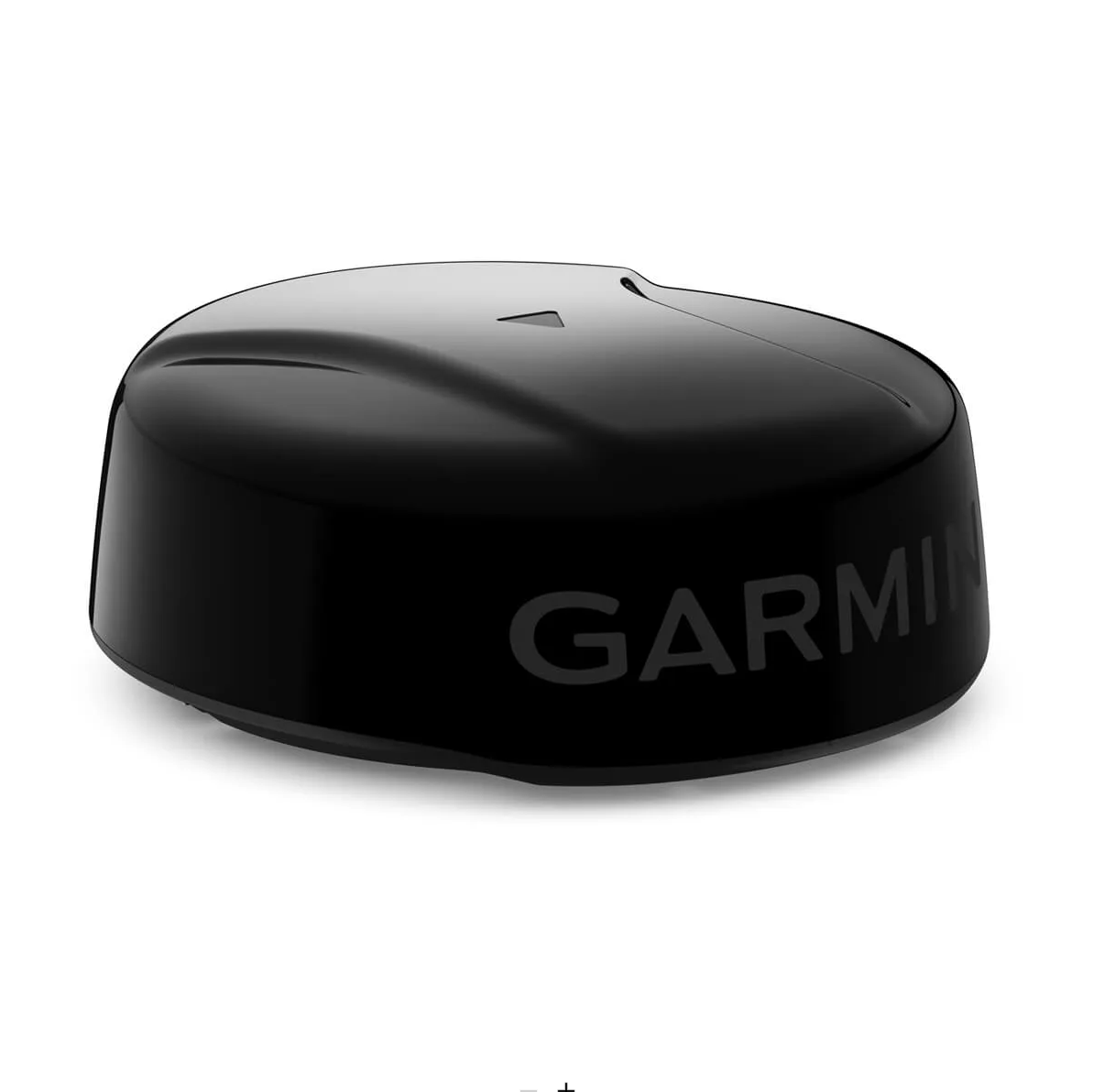

GMR Fantom™ 18x/24x Dome Radar 24x Radome, Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GMR Fantom 24x delivers solid-state radar performance from a 24-inch enclosed radome. Its 50 W of CHIRP pulse-compression power and narrow 3.7-degree horizontal beamwidth give superior target separation and detection from just 6 m out to 48 nautical miles, with no magnetron warm-up time.
MotionScope Doppler technology uses the Doppler effect to detect and highlight moving targets in colour, helping you avoid collisions, locate flocks of birds and track approaching weather at a glance. Antenna rotation of up to 60 RPM keeps the radar picture fast to update even at close range.
The radome connects over Garmin BlueNet and Garmin Marine Network and is controlled entirely from a compatible Garmin chartplotter. This black-housing variant is built for life on the water and operates from -25 to 55 C.
PRODUCT DETAILS
- Solid-state 50 W CHIRP pulse-compression radar with MotionScope Doppler target highlighting
- 24 in enclosed radome with a narrow 3.7-degree horizontal beamwidth for superior target separation
- Detection range from 6 m (20 ft) out to 48 nautical miles
- Antenna rotation up to 60 RPM for fast on-screen redraw
- Dual-range support to view close and long range simultaneously
- Garmin BlueNet and Garmin Marine Network compatible
- Weatherproof black thermoplastic housing rated from -25 to 55 C
- GMR Fantom 24x radome (black)
- Garmin BlueNet network cable
- Power cable with in-line fuse
- Mounting hardware (threaded rods, washers, nuts) and template
- Anti-seize compound
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radar
| Transmitter Type | Solid-state CHIRP pulse compression with MotionScope Doppler |
| Peak Power Output | 50 W |
| Maximum Range | 48 nautical miles |
| Minimum Range | 6 m (20 ft) |
| Antenna Size | 24 in radome (enclosed) |
| Maximum Antenna Rotation Speed | 60 RPM |
| Horizontal Beamwidth | 3.7 degrees |
| Vertical Beamwidth | 25 degrees (12.5 degrees above and below) |
| Transmitter Centre Frequency | 9335 to 9455 MHz |
| Transmitter Maximum Bandwidth | 40 MHz |
Electrical
| Input Voltage | 10 to 32 Vdc, 4 A max. |
| Power Consumption | Standby 4 W max.; Transmitting 33 W max. (Normal), 24 W max. (Power Save) |
| Fuse | 7.5 A |
Connectivity
| Networking | Garmin BlueNet and Garmin Marine Network compatible |
Physical
| Weight | 7.89 kg (17.4 lb) |
| Dimensions (L x W x H) | 645.4 x 642.5 x 250.3 mm (25 7/16 x 25 5/16 x 9 7/8 in) |
| Case Material | Thermoplastic resin |
| Colour | Black |
Environmental
| Operating Temperature Range | -25 to 55 C (-13 to 131 F) |
| Compass-Safe Distance | 89 cm (35 in) |
| Minimum Safe Operating Distance | 100 W/m2 = 0.12 m; 50 W/m2 = 0.17 m; 10 W/m2 = 0.37 m |
