Garmin

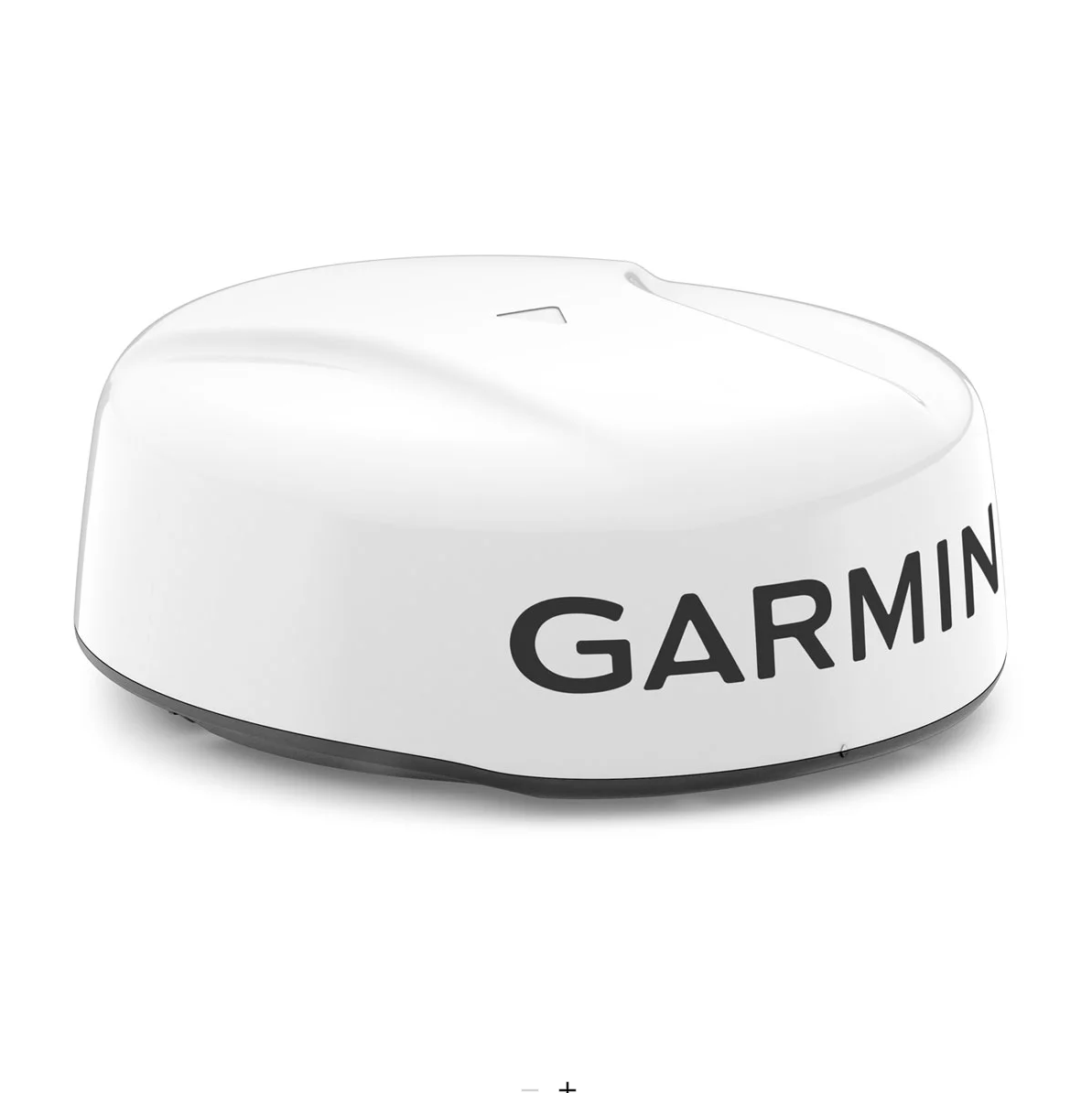

GMR™ 18/24 xHD3 Radome
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GMR 24 xHD3 delivers high-definition magnetron radar from a 24-inch enclosed radome. Its 4 kW of peak power and narrow 3.7-degree horizontal beamwidth give superior target separation and detection from 20 m out to 48 nautical miles, with antenna rotation of up to 60 RPM for a fast on-screen redraw.
Scan averaging filters out sea clutter and interference for cleaner, more consistent targets, while target-size processing uses pulse expansion to optimise on-screen object shapes at all range scales. True echo trails display a historical trail of moving boats to help you quickly identify potential collision threats.
Dual-range with overlay lets you watch close and long range at the same time. The radome connects over Garmin BlueNet and Garmin Marine Network, carries an IPX7 water rating and is controlled entirely from a compatible Garmin chartplotter.
PRODUCT DETAILS
- 24 in magnetron radome with 4 kW of peak power for offshore detection
- Narrow 3.7-degree horizontal beamwidth for superior target separation
- Detection range from 20 m (66 ft) out to 48 nautical miles
- Antenna rotation of up to 60 RPM for a fast on-screen redraw
- Scan averaging, target-size processing and true echo trails
- Dual-range with overlay shows close and long range simultaneously
- Garmin BlueNet and Garmin Marine Network compatible, IPX7 water rating
- GMR 24 xHD3 radome
- Garmin BlueNet network cable
- Power cable with in-line fuse
- Mounting hardware (threaded rods, washers, nuts) and template
- Anti-seize compound
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radar
| Transmitter Type | Magnetron (pulse) with scan averaging, target-size processing and true echo trails |
| Peak Power Output | 4 kW |
| Maximum Range | 48 nautical miles |
| Minimum Range | 20 m (66 ft) |
| Antenna Size | 24 in radome (enclosed) |
| Maximum Antenna Rotation Speed | Up to 60 RPM |
| Horizontal Beamwidth | 3.7 degrees |
| Vertical Beamwidth | 25 degrees |
| Transmission Centre Frequency | 9.38 to 9.44 GHz |
Electrical
| Input Voltage | 11 to 32 Vdc |
| Power Consumption (typical) | Standby 15 W; Transmitting 40 W |
| Fuse | 7.5 A |
Connectivity
| Networking | Garmin BlueNet and Garmin Marine Network compatible |
Physical
| Weight | 8.7 kg (19.2 lb) |
| Dimensions (L x W x H) | 645.4 x 642.5 x 250.3 mm (25 7/16 x 25 5/16 x 9 7/8 in) |
| Case Material | Thermoplastic resin |
Environmental
| Operating Temperature Range | -25 to 70 C (-13 to 158 F) |
| Water Rating | IEC 60529 IPX7 |
| Compass-Safe Distance | 95 cm (3.1 ft) |
| Minimum Safe Operating Distance | 100 W/m2 = 0.08 m; 50 W/m2 = 0.11 m; 10 W/m2 = 0.25 m |
