Garmin

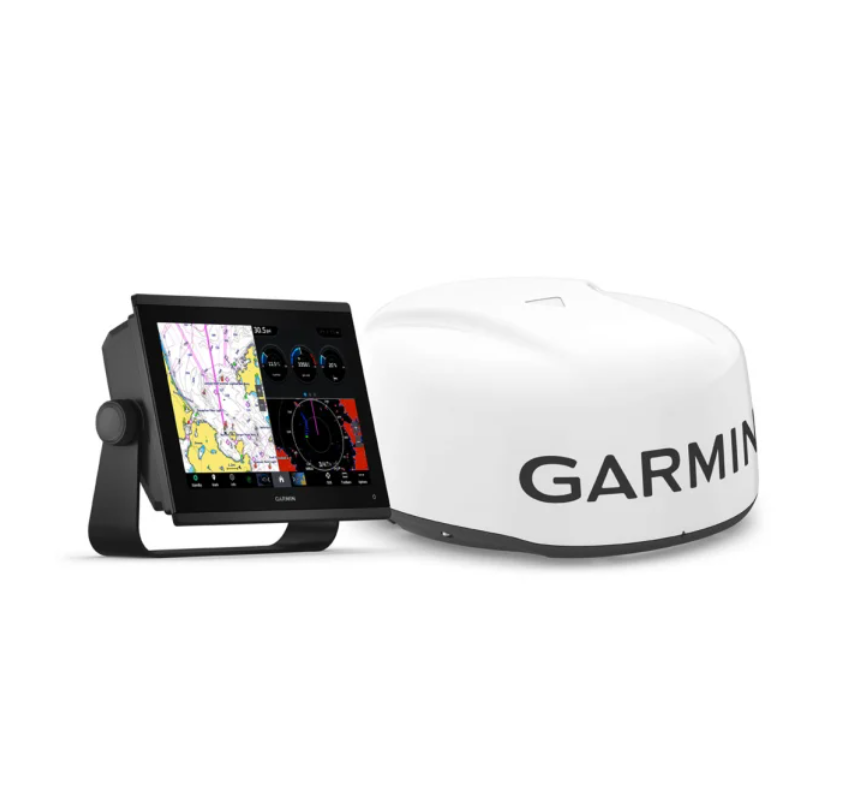

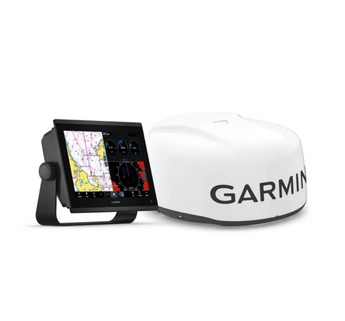

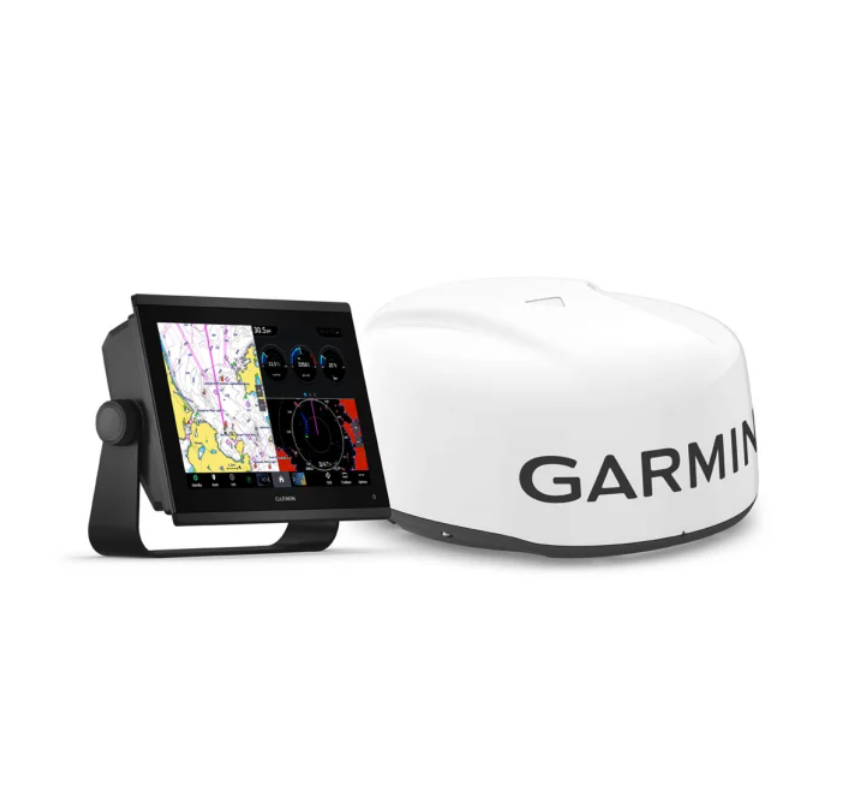

GPSMAP® 1223xsv, With GMR™ 18 HD3 Radome
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1223xsv with GMR 18 HD3 Radome is a ready-to-install radar bundle, combining the 12-inch GPSMAP 1223xsv chartplotter with Garmin's latest-generation 18-inch HD3 dome radar. It adds collision avoidance and weather awareness to a large connected helm.
The GMR 18 HD3 is a magnetron radome delivering 4 kW of peak power, with detection from 20 m out to 36 nm and a refined target picture. It connects using Garmin BlueNet and is compatible with the Garmin Marine Network, so radar imagery can be shown on the chartplotter and overlaid on the chart.
The 1223xsv brings a high-resolution WXGA IPS touchscreen with built-in SideVu, ClearVu and traditional CHIRP sonar, HDMI output, a preloaded worldwide basemap and support for premium Garmin Navionics+ and Garmin Navionics Vision+ charts. Built-in Wi-Fi, NMEA 2000 and NMEA 0183 link the system to the ActiveCaptain app, autopilots, engine data and instruments. Both units are rated to IPX7.
PRODUCT DETAILS
- Complete radar bundle: GPSMAP 1223xsv chartplotter packaged with the Garmin GMR 18 HD3 Radome
- GMR 18 HD3 18-inch magnetron dome delivers 4 kW peak power with up to 36 nm range for collision avoidance and weather tracking
- 12-inch WXGA IPS touchscreen (1280 x 800) with built-in SideVu, ClearVu and traditional CHIRP sonar and HDMI output
- Preloaded worldwide basemap with support for premium Garmin Navionics+ and Garmin Navionics Vision+ cartography
- Built-in Wi-Fi and ActiveCaptain app connectivity for chart updates, smart notifications and Garmin Helm remote control
- GMR 18 HD3 uses Garmin BlueNet and Garmin Marine Network compatibility to overlay radar on the chart
- Both chartplotter and radome rated to IPX7 for the marine environment
- GPSMAP 1223xsv chartplotter
- Garmin GMR 18 HD3 Radome
- Radar network cable
- Radar mounting hardware and template
- Chartplotter bail mount with knobs
- Flush-mount kit and template
- Power/data cable
- NMEA 2000 drop cable and T-connector
- Protective sun cover
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 30.7 cm (12.1 in) diagonal; 262.1 x 164.2 mm viewable |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | IPS touchscreen |
Physical
| Chartplotter dimensions (W x H x D) | 308.3 x 227.6 x 81.8 mm (12 1/8 x 8 15/16 x 3 1/4 in) |
| Chartplotter weight | 3.0 kg (6.6 lb) |
| Compass-safe distance (chartplotter) | 45 cm (17.72 in) |
Electrical
| Chartplotter input voltage | 10 to 32 Vdc |
| Chartplotter typical current draw at 12 Vdc | 1.68 A (sonar model) |
| Chartplotter fuse | 6 A, 125 V fast-acting |
Sonar
| Sonar technologies | Built-in Garmin SideVu, Garmin ClearVu and traditional CHIRP sonar |
| Transducer connector | 12-pin sonar port (transducer sold separately) |
Connectivity
| Wireless | Wi-Fi, 2.4 GHz @ 18.3 dBm maximum |
| Data interfaces | NMEA 2000, NMEA 0183, Garmin Marine Network (Ethernet), J1939 engine network |
| Video | HDMI video out and composite video in (CVBS) |
| Memory card | 2 microSD card slots, 32 GB max card size |
Environmental
| Water rating (chartplotter) | IEC 60529 IPX7 |
Radar
| Included radar | Garmin GMR 18 HD3 Radome, 18 in (45 cm) magnetron dome |
| Radar power output | 4 kW peak |
| Radar maximum range | 36 nm |
| Radar minimum range | 20 m (66 ft) |
| Radar antenna rotation speed | 24 RPM maximum |
| Radar beam width | 5.2 degrees horizontal, 25 degrees vertical |
| Radar transmission frequency | 9.38 to 9.44 GHz |
| Radar weight | 7 kg (15.4 lb) |
| Radar input voltage and fuse | 11 to 32 Vdc; 7.5 A fuse; standby 15 W, transmitting 40 W |
| Radar water rating | IEC 60529 IPX7 |
