Raymarine Axiom Power Cable 1.5m Right-Angled with NMEA 2000 Connector
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

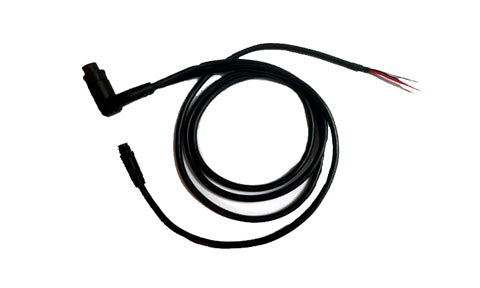

The Raymarine R70561 is a 1.5 m right-angled power and NMEA 2000 cable for Axiom 7, 9 and 12 multifunction displays. The right-angled display connector provides a low-profile exit, making it suitable for flush-mounted or space-constrained helm installations. It combines the DC power feed and NMEA 2000 network connection in a single cable from the display port.
The cable terminates at the display end with the right-angled Axiom multi-way connector and at the supply end with bare, tinned power wires and an NMEA 2000 connector. For a straight connector, use R70523.
PRODUCT DETAILS
- 1.5 m right-angled power cable with integrated NMEA 2000 connector for Axiom 7, 9 and 12
- Right-angled connector provides a low-profile, compact exit at the display
- Combines DC power feed and NMEA 2000 network connection in a single cable
- Straight version available as R70523
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Physical
| Cable length | 1.5 m |
| Connector format | Right-angled |
Connections
| Display connector | Axiom power/data port |
| Network | NMEA 2000 connector |
| Supply end | Bare tinned wires |
