Raymarine 12kW Magnum Radar with 6ft Open Array and 15m RayNet Radar Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

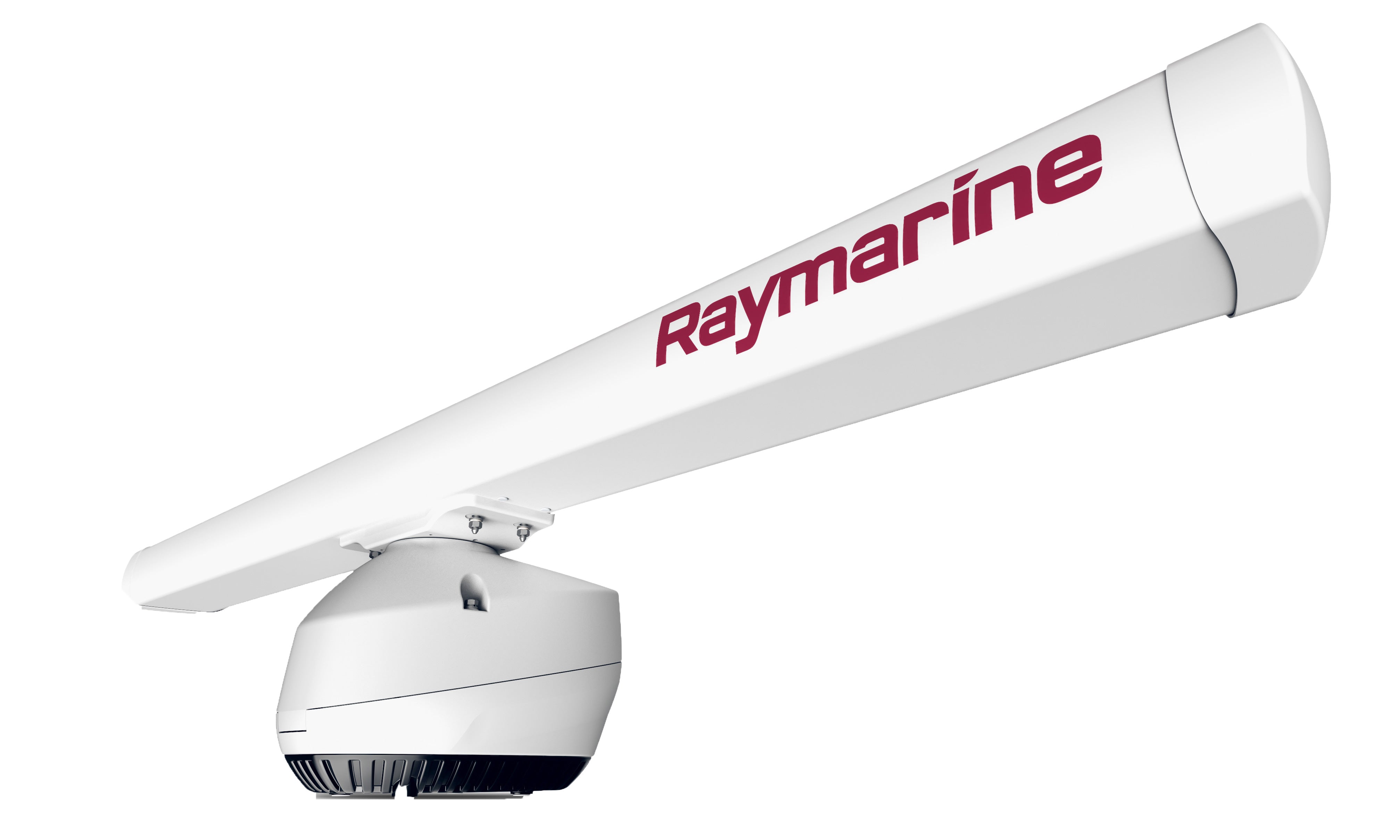

This Raymarine Magnum radar pack is the flagship 12kW open array system, combining the high power Magnum 12kW pedestal with the long 6ft Magnum antenna. The kit ships complete with the 6ft open array, the VCM100 Voltage Converter Module and a 15 m radar RayNet and power cable, plus the lifting sling, fixings and cable tool.
A 12kW transmitter pushes the maximum range scale to 96 nautical miles for the longest reach in the Magnum line, and the 6ft array narrows the horizontal beamwidth to 1.15 degrees for the tightest bearing resolution and best target separation. Evolution 9-axis heading keeps plots locked in real time, automatic MARPA tracks targets and standard Bird Mode finds feeding birds far beyond visual range. The completed scanner links to a compatible Axiom or Axiom 2 display over the supplied RayNet cable.
PRODUCT DETAILS
- Complete 12kW Magnum open array radar pack
- Includes the Magnum 12kW pedestal and 6ft open array
- Longest reach in the Magnum line
- 6ft array gives a 1.15 degree horizontal beamwidth
- Supplied with the VCM100 voltage converter module
- Includes a 15 m radar RayNet and power cable
- 96 nautical mile maximum range scale
- Automatic Bird Mode and MARPA target tracking
- Magnum open array pedestal (scanner)
- Magnum 6ft open array antenna
- VCM100 Voltage Converter Module
- VCM100 cable clamp and mounting screws
- Radar RayNet and power cable, 15 m (49.21 ft)
- Lifting sling
- Denso paste
- Cable tightening tool
- Pedestal fixings: studs x 4, plain washers, spring washers and nuts
- Antenna fixings: threaded alignment guides x 4, plain washers, spring washers and nuts
- Documentation
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 Pro 12 S
Power
| Power consumption (typical) | < 110 W |
| Power consumption (standby) | < 30 W |
| Power consumption (sleep) | < 1.2 W |
| Nominal supply voltage | Using VCM100: 12 V dc / 24 V dc |
| Operating voltage range | Using VCM100: 10.8 V dc to 31.2 V dc |
Physical
| Pedestal dimensions | Height (including antenna): 430 mm (16.9 in); Length: 409 mm (16.1 in); Width: 314 mm (12.3 in) |
| Array length | 4 ft array: 1306 mm (51.4 in); 6 ft array: 1918 mm (75.7 in) |
| Weight | 29 kg (63.93 lbs) |
Environmental
| Waterproof rating | IPx6 |
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Relative humidity | Up to 95% at 35 C (95 F) |
| Maximum wind speed | 85 knots |
Conformance
| Standards | USA: 47CFR FCC Part 2 and Part 80; Canada: RSS138 Iss.1; EU and EFTA: Radio Equipment Directive 2014/53/EU; Australia/New Zealand: ACMA Declaration of Conformity, compliance level 3 |
Compatibility
| Compatible displays | Axiom 2 XL (16, 19, 22 and 24 inch); Axiom 2 Pro (9, 12 and 16 inch RVM and S variants); Axiom+, Axiom XL, Axiom Pro and Axiom. Not compatible with Element. |
Radar
| Maximum range scale | 96 nautical miles |
| Beamwidth (horizontal) | 4 ft array: 1.85 degrees (nominal); 6 ft array: 1.15 degrees (nominal) |
| Beamwidth (vertical) | 25 degrees (nominal) |
| Peak power output | 12 kW |
| Polarization | Horizontal |
| Transmit frequency | 9405 MHz plus or minus 20 MHz |
| Rotation speed | 24 RPM / 48 RPM |
| Warm-up time | 75 seconds |
| Standby to transmit | 2.5 seconds |
