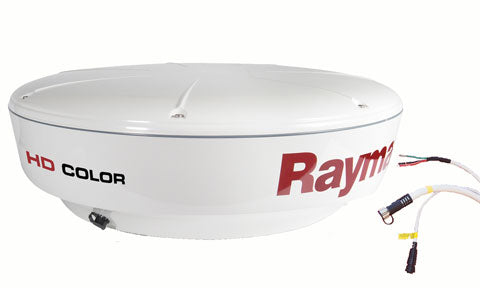

Raymarine RD424HD 4kW 24 inch HD Radome 256 Colour resolution with 10m Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Raymarine RD424HD is a high performance 4kW 24 inch HD radome scanner that delivers trusted radar performance in a compact, lightweight enclosed antenna. Proven magnetron technology and an adaptive digital receiver produce crisp, lifelike 256 colour radar imagery, keeping you aware of traffic, hazards, obstacles and approaching weather day and night, and in dense fog, rain and limited visibility.
Automatic buoy, harbour, coastal, offshore and bird tuning modes optimise target detection, while manual control of tune, gain, colour gain, sea clutter and rain is also available. The 24 inch antenna gives a 3.9 degree horizontal beamwidth, and fast 48 RPM rotation is supported with compatible displays. MARPA target tracking plus radar, chart, AIS and FLIR camera overlay are supported on Raymarine Axiom family and earlier compatible displays. Trusted by the United States Coast Guard.
This package includes a 10 m power and data interconnect cable for connection to a compatible Raymarine multifunction display.
PRODUCT DETAILS
- Powerful 4kW 24 inch HD radome with 48 nautical mile maximum range scale
- 256 colour resolution for crisp, lifelike target presentation
- Adaptive transmitter and receiver for reliable target returns in all sea conditions
- Automatic buoy, harbour, coastal, offshore and bird tuning modes
- Manual tune, gain, colour gain, sea clutter and rain adjustment
- Narrow 3.9 degree horizontal beamwidth for sharp bearing resolution
- Fast 48 RPM scanner rotation with compatible displays
- MARPA target tracking plus radar, chart, AIS and FLIR camera overlay
- Compatible with Raymarine Axiom family and earlier multifunction displays
- Supplied with a 10 m power and data interconnect cable
No compatible transducers listed for this product.
Raymarine Radome Cable Earthing Kit
Raymarine Radome Cable Heavy 90deg 15m
Raymarine Radome Cable Heavy 90deg 25m
Raymarine Radome Cable Light 90deg 10m
Raymarine Radome Cable Light 90deg 15m
Raymarine Radome Extension Cable 90 Deg 5m
Raymarine Radome Extension Cable 90 Deg 10m
Raymarine Radome Cable Heavy 90deg 5m
Raymarine Mast Mount Bracket for 24 inch Radome Scanner
Scanstrut Mast Mount Bracket for 18 inch Radome Scanner
Raymarine Radome Stepper Motor (Service Part)
Raymarine 18 inch Radome Top Cover (Service Part)
Raymarine 24 inch Radome Top Cover (Service Part)
Raymarine HD Digital Radome Modulator / PSU PCB, 2024 (Service Part)
Raymarine Digital Radome Modulator / PSU PCB (Service Part)
Digital Dome IF PCB (Spare)
Digital Dome Receptacle Cable (Spare)
Raymarine HD Digital Radome Modulator / PSU PCB (Service Part)
RD424HD Top Cover & Base (Spare)
RD418HD Top Cover & Base (Spare)
Raymarine Radar Guard - For 4KW Radome
No compatible products found.
Performance/Range
| Maximum range scale | 48 nautical miles |
| Rotation speed | 24 rpm nominal, 48 rpm with compatible displays |
Transmitter
| Type | Solid-state modulator, driving magnetron |
| Peak power output | 4 kW |
| Transmitter frequency | 9405 MHz plus or minus 25 MHz |
| Duplexer | Circulator |
Receiver
| Intermediate frequency | 70 MHz |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB (including low noise converter and IF amplifier) |
| Bandwidth | Matched digital filter for each pulse length |
Antenna
| Type | Patch array |
| Beamwidth (horizontal) | 3.9 degrees (nominal) |
| Beamwidth (vertical) | 25 degrees (nominal) |
| Polarization | Horizontal |
Physical
| Dimensions | 652 mm diameter x 247 mm (25.67 in x 9.7 in) |
| Weight | 10 kg (22 lbs) |
Power
| Supply voltage | 12 V dc or 24 V dc nominal (minimum 10.8 V, maximum 33 V) |
| Power consumption | 60 W (25 W standby) |
Environmental
| Waterproof rating | IPX6 |
| Operating temperature range | -25 C to +55 C |
| Humidity | Up to 95% at 35 C |
| Maximum wind speed | 100 knots |
In the Box
| Interconnect cable | 10 m radar power and data interconnect cable supplied |
