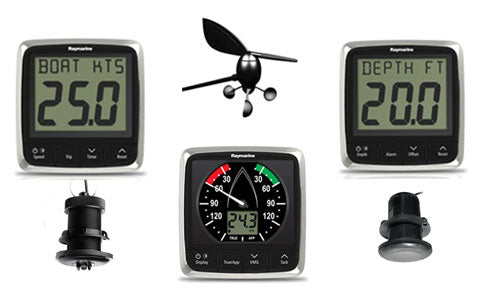

Raymarine i50 and i60 Wind, Speed and Depth Pack

£1,945.00
Tax included.
T70584
The complete Raymarine starter system for sailing yachts: i50 Depth, i50 Speed and i60 Wind displays with P319 depth, P120 speed and short arm masthead wind transducers. Three matched instruments deliver depth, speed and wind at a glance. All network over SeaTalkng with autopilots and chartplotters.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Raymarine i50 and i60 Wind, Speed and Depth pack is the classic three instrument fit for a cruising or racing sailboat: i50 Depth and i50 Speed digital displays, an i60 Wind analogue instrument, plus P319 depth, P120 speed and temperature and short arm masthead wind transducers. Three matched 110 x 115 mm displays line up neatly at the helm.

Each display hosts its own transducer through built in interfaces, then shares everything over SeaTalkng so autopilots, i70s displays and chartplotters see depth, speed and wind from one network. High contrast LCDs, oversized digits and red backlighting keep every readout clear, with group dimming across all three at once.

This is the current part number for the system pack defined in the official i50 and i60 manuals, which cover every component supplied. NMEA 2000 and SeaTalk 1 equipment connects via adaptor cables.

PRODUCT DETAILS

  • Three instruments: i50 Depth, i50 Speed and i60 Wind
  • Three transducers: P319 depth, P120 speed and short arm masthead vane
  • Matched 110 x 115 mm displays for a tidy helm
  • SeaTalkng cabling ready, NMEA 2000 and SeaTalk compatible via adaptors
  • Group dimming across all three displays
  • Current part number for the official i50 and i60 system pack
  • i50 Depth instrument display
  • P319 through hull depth transducer
  • i50 Speed instrument display
  • P120 through hull speed and temperature transducer
  • i60 Wind instrument display
  • Short arm masthead wind vane transducer

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Display

Maximum digit height28 mm
Viewing angle+70° / +70°
BacklightingRed backlighting with local and group dimming control

Physical

Width110.00 mm (4.33 in)
Height115.00 mm (4.53 in)
Depth44.00 mm (1.73 in)

Power

Nominal supply voltage12 V dc
Operating voltage range10 V dc to 16 V dc
Power consumption< 1 W typical (display only); 2.4 W maximum (transducer connected)
Current45 to 65 mA typical (display only); 200 mA maximum (transducer connected)
LEN (NMEA 2000 Load Equivalency Number)4

Connections

Network connections2x SeaTalkng connections (compliant with SeaTalk 1)
Transducer connectionsPer display: i50 Depth 1x depth; i50 Speed 1x speed/temp; i50 Tridata 2x; i60 Wind masthead vane interface

Environmental

Waterproof ratingIPx6
Relative humidity93% max
Operating temperature-20°C to +55°C (-4°F to +131°F)
Storage temperature-30°C to +70°C (-22°F to +158°F)

Conformance

ConformanceEurope 2004/108/EC (EMC)

No videos available for this product.

Can the i50 connect to an NMEA 2000 or older SeaTalk system?
Yes. The i50 is SeaTalkng native with two SeaTalkng connections. NMEA 2000 equipment connects using a SeaTalkng to DeviceNet adaptor cable, and older SeaTalk 1 systems connect through the SeaTalk to SeaTalkng converter kit (E22158).
Can an i50 display data from a transducer connected elsewhere on the network?
Yes. Each i50 can be configured as a master display hosting its own transducer, or as a repeater showing information from another source on the SeaTalkng network.
Does the i60 show true wind as well as apparent wind?
Yes. The i60 Wind calculates both apparent (relative) and true wind speed and angle.
How is the i50 powered?
Normally from the SeaTalkng backbone, with a 12 V dc nominal supply. The manual also covers SeaTalk 1 and direct power connections, and an inline fuse must be fitted to the red power wire if one is not supplied.
