Raymarine i50 Tridata and i60 Wind Pack with Transducers

£1,795.00
Tax included.
T70585

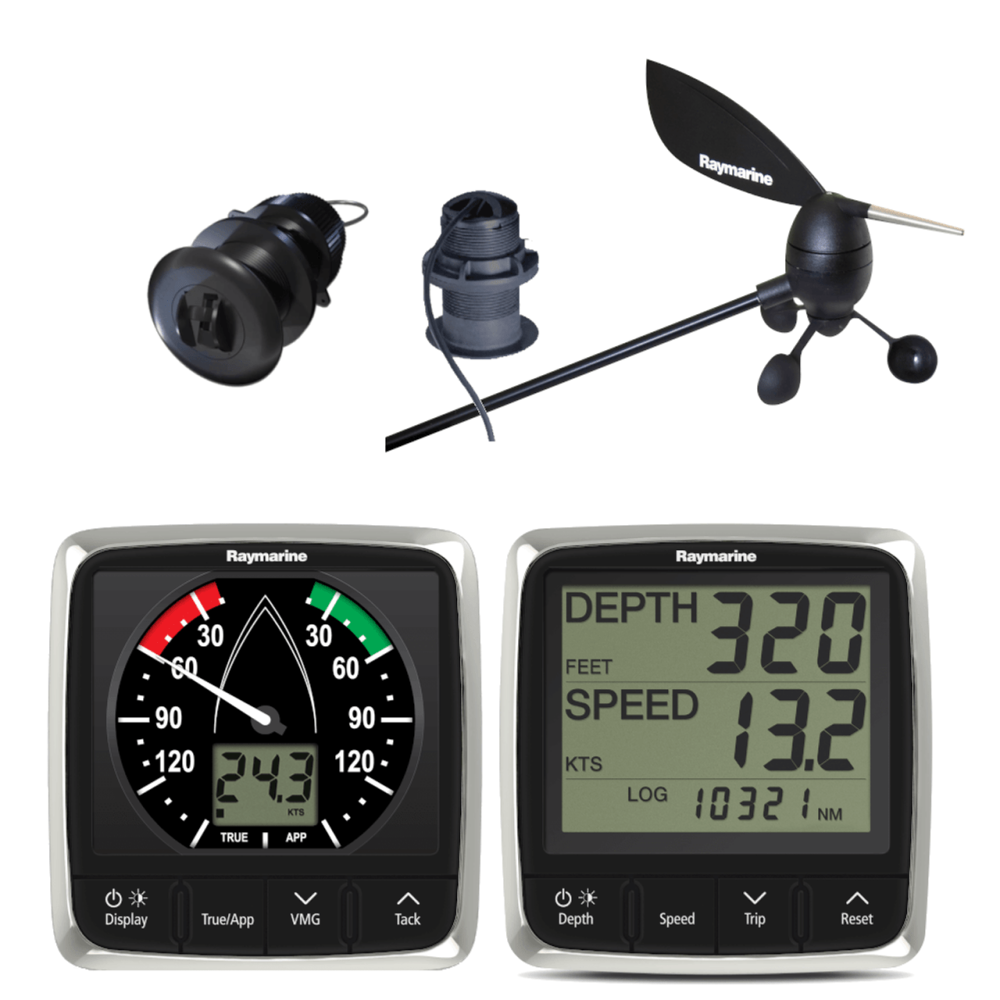

This pack combines the Raymarine i50 Tridata and i60 Wind displays with P120 speed, P319 depth and short arm masthead wind vane transducers. Depth, speed, log and temperature share one 3 line display while wind sweeps the analogue gauge. A complete two instrument sailing package.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

This Raymarine pack covers a sailing yacht's essential instruments with two displays instead of three: the i50 Tridata carries depth, speed, trip, log and water temperature on its 3 line readout, while the i60 Wind presents wind angle on its analogue gauge with wind speed on the LCD. P120 speed and temperature, P319 depth and short arm masthead wind vane transducers complete the system.

The Tridata's twin transducer interfaces host both hull sensors, the i60 connects the masthead vane directly, and both displays share data across the SeaTalkng backbone with autopilots, i70s displays and chartplotters. Red backlighting and group dimming keep the pair matched day and night.

Pack composition follows the SMG trade listing for T70585; the i50 and i60 manuals cover every supplied component. NMEA 2000 and SeaTalk 1 systems connect via adaptor cables.

PRODUCT DETAILS

  • i50 Tridata and i60 Wind displays in one pack
  • P120 speed, P319 depth and short arm masthead vane transducers
  • Depth, speed, log and temperature on the Tridata 3 line display
  • Analogue wind needle with LCD wind speed readout
  • SeaTalkng networking with autopilots and chartplotters
  • Two display fit saves helm space
  • i50 Tridata instrument display
  • P120 through hull speed and temperature transducer
  • P319 through hull depth transducer
  • i60 Wind instrument display
  • Short arm masthead wind vane transducer

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Display

Maximum digit height28 mm
Viewing angle+70° / +70°
BacklightingRed backlighting with local and group dimming control

Physical

Width110.00 mm (4.33 in)
Height115.00 mm (4.53 in)
Depth44.00 mm (1.73 in)

Power

Nominal supply voltage12 V dc
Operating voltage range10 V dc to 16 V dc
Power consumption< 1 W typical (display only); 2.4 W maximum (transducer connected)
Current45 to 65 mA typical (display only); 200 mA maximum (transducer connected)
LEN (NMEA 2000 Load Equivalency Number)4

Connections

Network connections2x SeaTalkng connections (compliant with SeaTalk 1)
Transducer connectionsPer display: i50 Depth 1x depth; i50 Speed 1x speed/temp; i50 Tridata 2x; i60 Wind masthead vane interface

Environmental

Waterproof ratingIPx6
Relative humidity93% max
Operating temperature-20°C to +55°C (-4°F to +131°F)
Storage temperature-30°C to +70°C (-22°F to +158°F)

Conformance

ConformanceEurope 2004/108/EC (EMC)

No videos available for this product.

Can the i50 connect to an NMEA 2000 or older SeaTalk system?
Yes. The i50 is SeaTalkng native with two SeaTalkng connections. NMEA 2000 equipment connects using a SeaTalkng to DeviceNet adaptor cable, and older SeaTalk 1 systems connect through the SeaTalk to SeaTalkng converter kit (E22158).
Can an i50 display data from a transducer connected elsewhere on the network?
Yes. Each i50 can be configured as a master display hosting its own transducer, or as a repeater showing information from another source on the SeaTalkng network.
Does the i60 show true wind as well as apparent wind?
Yes. The i60 Wind calculates both apparent (relative) and true wind speed and angle.
How is the i50 powered?
Normally from the SeaTalkng backbone, with a 12 V dc nominal supply. The manual also covers SeaTalk 1 and direct power connections, and an inline fuse must be fitted to the red power wire if one is not supplied.
