Raymarine
RNS-5 Gigabit Raynet Network Switch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

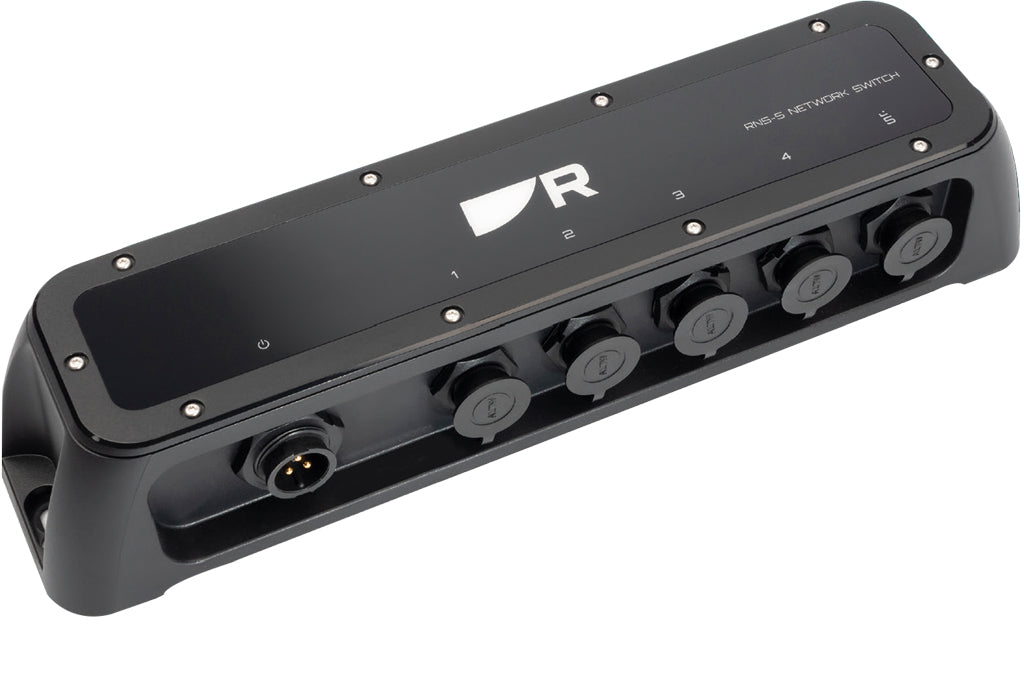

The Raymarine RNS-5 (A80731) is a 5-port Gigabit RayNet network switch designed for expanding integrated Raymarine chartplotter systems. It provides five waterproof RayNet Gigabit Ethernet ports (10/100/1000 Mbits/s), letting Axiom 2 Pro and Axiom 2 XL displays connect simultaneously with radar, RVX1000 or RVM1600 sonar modules, IP cameras and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained for larger installations.
The RNS-5 is rated IPX6 and IPX7 waterproof and operates from 10.8 V to 31.2 V dc, making it suitable for both 12 V and 24 V systems. It is unmanaged for simple plug-and-play operation, with LED power and port status indicators and a bulkhead mounting design.
PRODUCT DETAILS
- 5 x waterproof RayNet Gigabit ports (10/100/1000 Mbits/s) for fast, reliable connectivity
- Connects Axiom 2 displays with radar, sonar modules, IP cameras and FLIR thermal cameras
- Supports YachtSense digital control systems and the YachtSense Link mobile router
- IPX6 and IPX7 waterproof rating for above-deck installations
- Unmanaged - simply plug and play, no configuration required
- Two RNS-5 switches can be daisy-chained; LED status indicators and bulkhead mounting
- 1 x RNS-5 Network Switch, Documentation, Fixing screws (M4, 8.94 x 25 mm) x3, Power cable 1.5 m (4.9 ft)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Raymarine RVM1600 RealVision MAX 3D CHIRP Sonar Module
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 Pro 12 S
Network
| Network connection ports | 5 x waterproof RayNet connection ports (10/100/1000 Mbits/s) |
| IEEE Standard | Conforms to IEEE 802.3at |
Power
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 10.8 V to 31.2 V dc |
| Power consumption | 3 W (maximum) @ 12 V |
| Current | < 600 mA (nominal) @ 12 V |
Environmental
| Waterproof rating | IPX6, IPX7 |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Relative humidity | Up to 93% @ 40 °C (104 °F) |
Physical
| Dimensions (L x W x H) | 286 mm x 72.6 mm x 55.5 mm (11.26 x 2.86 x 2.19 in) |
| Weight | 0.36 kg (0.79 lbs) |
| Port separation distance | 16.7 mm (0.65 in) |
Conformance
| Product markings | UKCA, CE, Australian Tick, WEEE Directive |
| Standards | EN 60945:2002, EN ISO 8846:2017, ICES-003, CFR47 Part 15, IACS section E10 |
