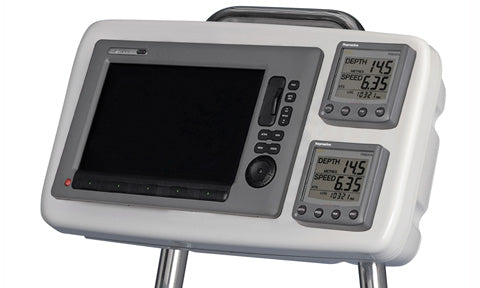

Scanstrut SPH-SYSTEM-W Helm Pod
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SPH-SYSTEM-W SystemPod brings a complete navigation suite together at the helm of your sailing yacht, pairing a main display with standard nav instruments in one integrated housing. A stainless saddle system supports the pedestal tubing for a secure, rigid fit, with a universal helm fixing suited to a wide range of cockpit configurations.
A high tear strength silicone seal keeps the cable entry watertight, and the silicone construction gives excellent resistance to heat and UV. The pod is supplied uncut so each aperture can be cut to match the display and instruments you are fitting.
PRODUCT DETAILS
- Large system helm pod for a main display plus instruments
- 7 degree tilt for an ergonomic viewing angle at the helm
- Clamps to a pedestal guard with 7 to 15 inch tube centres
- Fits stainless steel pedestal guard tube 25 to 33.7mm diameter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | System helm pod for pedestal guard mounting |
| Tilt angle | 7 degrees |
Compatibility
| Display capacity | Large system pod for mounting a display plus instruments together |
Dimensions
| Overall dimensions | 600 x 336 mm (23.6 x 13.2 in) |
| Maximum usable face | 545 x 289 mm (21.5 x 11.4 in) |
| Maximum cut-out area | 541 x 274 mm (21.3 x 10.8 in) |
Fixing
| Pedestal guard fitment | Fits pedestal guards with 177.8mm (7 in) to 381mm (15 in) tube centres |
| Pedestal guard tube | Stainless steel tube 25 to 33.7mm (1 to 1.33 in) diameter |
