Scanstrut
SPH-15-W
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

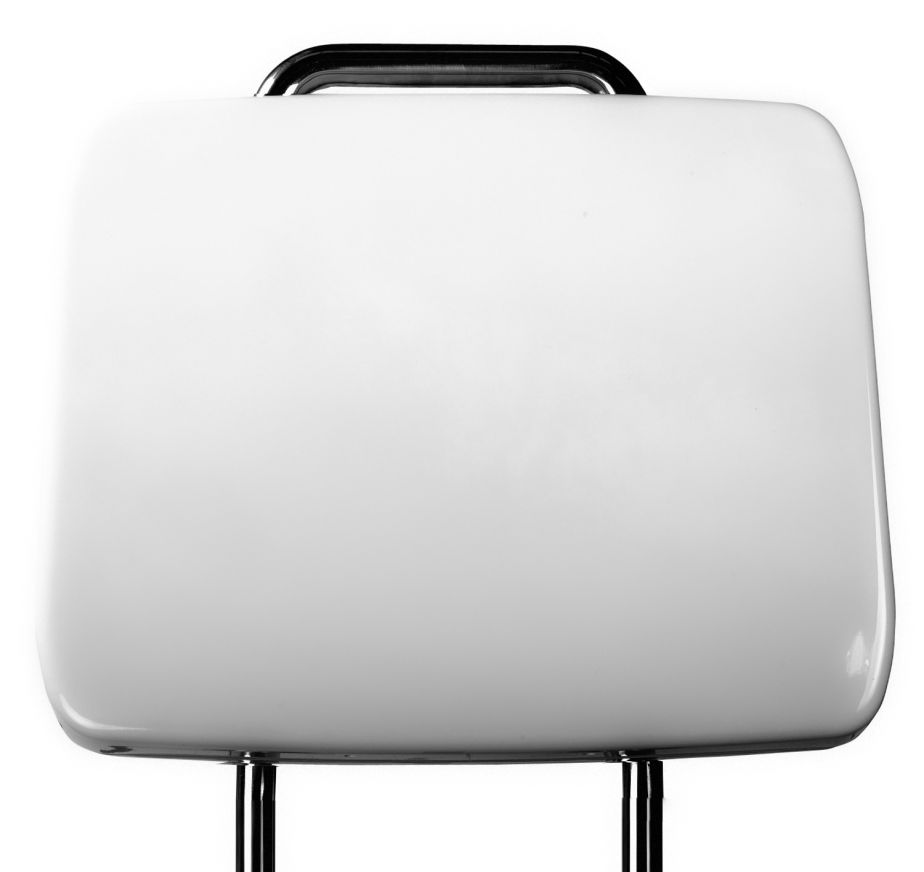

The SPH-15-W HelmPod carries the largest displays of up to 15 inches at the helm of your sailing yacht, giving a commanding view of the chart from the wheel. A stainless saddle system supports the pedestal tubing for a secure, rigid fit, with a universal helm fixing suited to a wide range of cockpit configurations.
A high tear strength silicone seal keeps the cable entry watertight, and the silicone construction resists heat and UV exceptionally well. The pod is supplied uncut so the aperture can be cut to match your chosen multifunction display.
PRODUCT DETAILS
- Helm pod that houses a display up to 15 inches
- 7 degree tilt for an ergonomic viewing angle at the helm
- Clamps to a pedestal guard with 7 to 15 inch tube centres
- Fits stainless steel pedestal guard tube 25 to 33.7mm diameter
- Pod front
- Pod back
- 2 x long saddle packs for pedestal guard clamping
- Stainless steel fixings and bolts
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | Helm pod for pedestal guard mounting |
| Tilt angle | 7 degrees |
Compatibility
| Display capacity | Houses a display up to 15 inch |
Dimensions
| Overall dimensions | 482 x 396 mm (19.0 x 15.6 in) |
| Maximum usable face | 424 x 349 mm (16.7 x 13.7 in) |
| Maximum cut-out area | 423 x 333 mm (16.7 x 13.1 in) |
Fixing
| Pedestal guard fitment | Fits pedestal guards with 177.8mm (7 in) to 381mm (15 in) tube centres |
| Pedestal guard tube | Stainless steel tube 25 to 33.7mm (1 to 1.33 in) diameter, 1.5mm wall minimum |
| Hole saw | 20mm (25/32 in) hole saw for 25mm tube; 25mm (1 in) hole saw for 32mm tube |
