Scanstrut SPR-1u-RM Uncut Rail Mount Instrument ScanPod
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

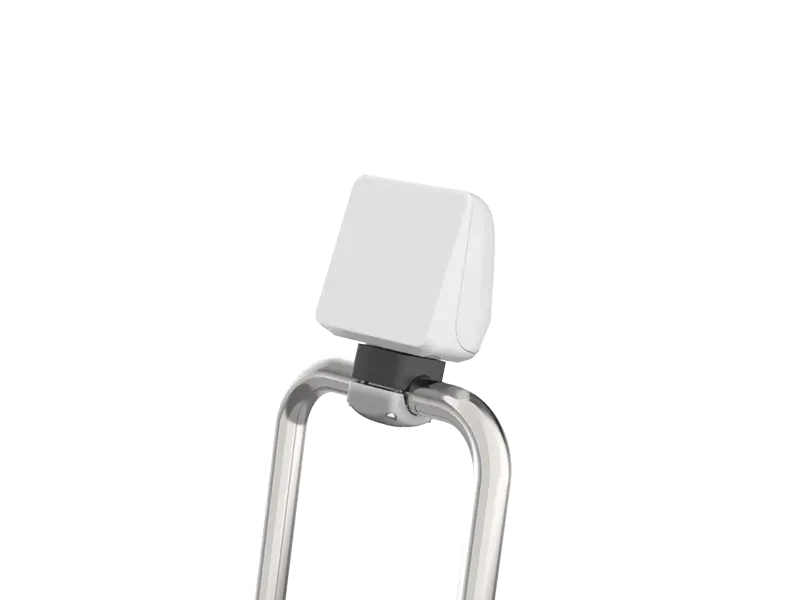

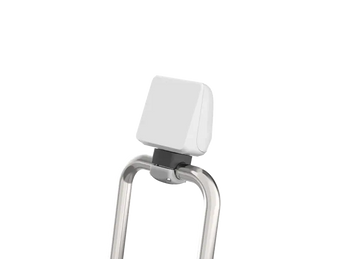

The SPR-1U-RM is the uncut version of the instrument RailPod, supplied with a blank face so the aperture can be cut to match whichever standard nav instrument you are fitting. It mounts on standard and curved rails from 25mm to 33.7mm diameter, ideal where helm space is limited.
Cables route internally through the clamp and onto the rail for a tidy, protected run, and a high tear strength silicone seal keeps water out while resisting heat and UV. The viewing angle is set on installation, and the design allows a quick, safe install and easy servicing.
PRODUCT DETAILS
- Rail-mounted pod with an uncut blank face you cut to suit your device
- Cut-out area up to 120 x 100mm with 90mm of internal depth
- Clamps to rails from 25 to 33.7mm diameter
- Cable routing clearance built into the housing
- Blank pod front with seal fitted (cut to suit your instrument)
- Pod back
- Rail clamp components
- Stainless steel fixings
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | Rail-mounted uncut (blank-face) instrument pod |
Compatibility
| Display capacity | Uncut blank face cut on site to fit a single instrument or small device |
Dimensions
| Overall dimensions | Ø155 x 159 mm (6.1 x 6.3 in) |
| Maximum cut-out area | 120 x 100 mm (4.7 x 3.9 in) |
| Internal depth | 90 mm (3.54 in) max depth; 62 mm (2.44 in) at cut-out area |
Fixing
| Rail clamp diameter | Fits rails 25 to 33.7mm (1 to 1.33 in) diameter |
| Cable routing clearance | Ø23 mm (0.9 in) |
