Scanstrut Black APT-150-01 Aluminium PowerTower aft leaning 150mm / 6" for radomes Scanstrut Black APT-150-01 Aluminium PowerTower aft leaning 150mm / 6" for radomes
Scanstrut Black APT-150-01 Aluminium PowerTower aft leaning 150mm / 6" for radomes

Scanstrut

Scanstrut Black APT-150-01 Aluminium PowerTower aft leaning 150mm / 6" for radomes

£450.00
Tax included. Shipping calculated at checkout.
APT-150-01-BLK

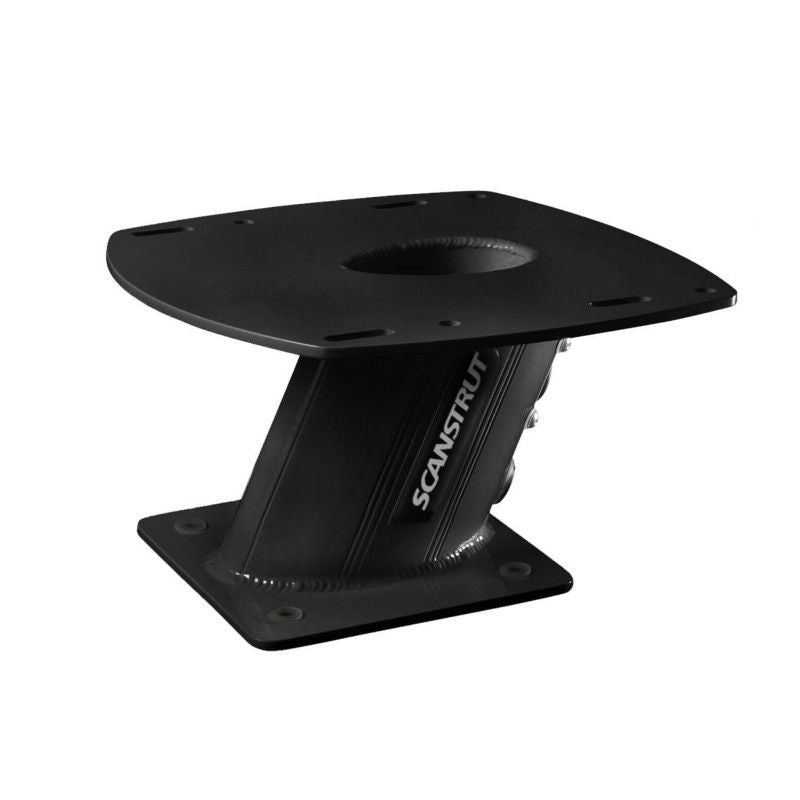

The Scanstrut APT-150-01-BLK is the black version of the 150mm (6") aft-leaning aluminium PowerTower for mounting your radar clear of the horizon. The radome bolts straight on using pre-drilled holes, with no connectors to cut and no marine sealant needed. Designed to fit current radars from Garmin, Lowrance, Raymarine and Simrad.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Aluminium PowerTower raises your radar onto the roof, T-top, flybridge or radar arch of your powerboat for the clearest view of the horizon and the best radar performance in all conditions. The APT-150-01-BLK stands 150mm (6") high in an aft-leaning configuration and is finished in black to complement darker hardtops and arches.

Constructed from premium marine-grade aluminium and protected by the unique Scanstrut four-step marine paint system, it is engineered for life at sea. Pre-drilled mounting holes allow the radome to fasten directly to the tower, so there is no need to cut the radar's connectors and no marine sealant is required.

A matching black central light bar and other accessories can be bolted to the back of the mount, and an optional base wedge is available to adjust the radar pitch.

PRODUCT DETAILS

  • Aft-leaning 25 degree mount for radar radomes
  • Black anodised aluminium finish
  • Integrated DS-30 waterproof deck seal for clean cable routing
  • Internal or external cable routing options
  • Black aluminium PowerTower
  • 4x M6x16mm bolts
  • 4x M4x10mm screws
  • Foam seal
  • Cable grommet
  • Blanking plug
  • 8x M8 nylon insulation washers
  • DS30 deck seal shell and bung set
  • Optional weather seal

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Mount typeAft-leaning radome PowerTower
Lean angle25 degrees
Radome standoff height150mm (5.91")
Deck sealDS-30 Deck Seal included

Dimensions

Base footprint290mm x 280mm (11.42" x 11.02")
Top plate177.8mm x 127mm (7.00" x 5.00")

Fixing

Base hole centres177.8mm x 141.50mm (7.00" x 5.57")
Cable hole-saw size50-52mm (2")
Fixing drill bit8.5mm (21/64")
Deck fasteners4x M8 x 25mm+ (not supplied)

Materials

MaterialAluminium
FinishBlack
