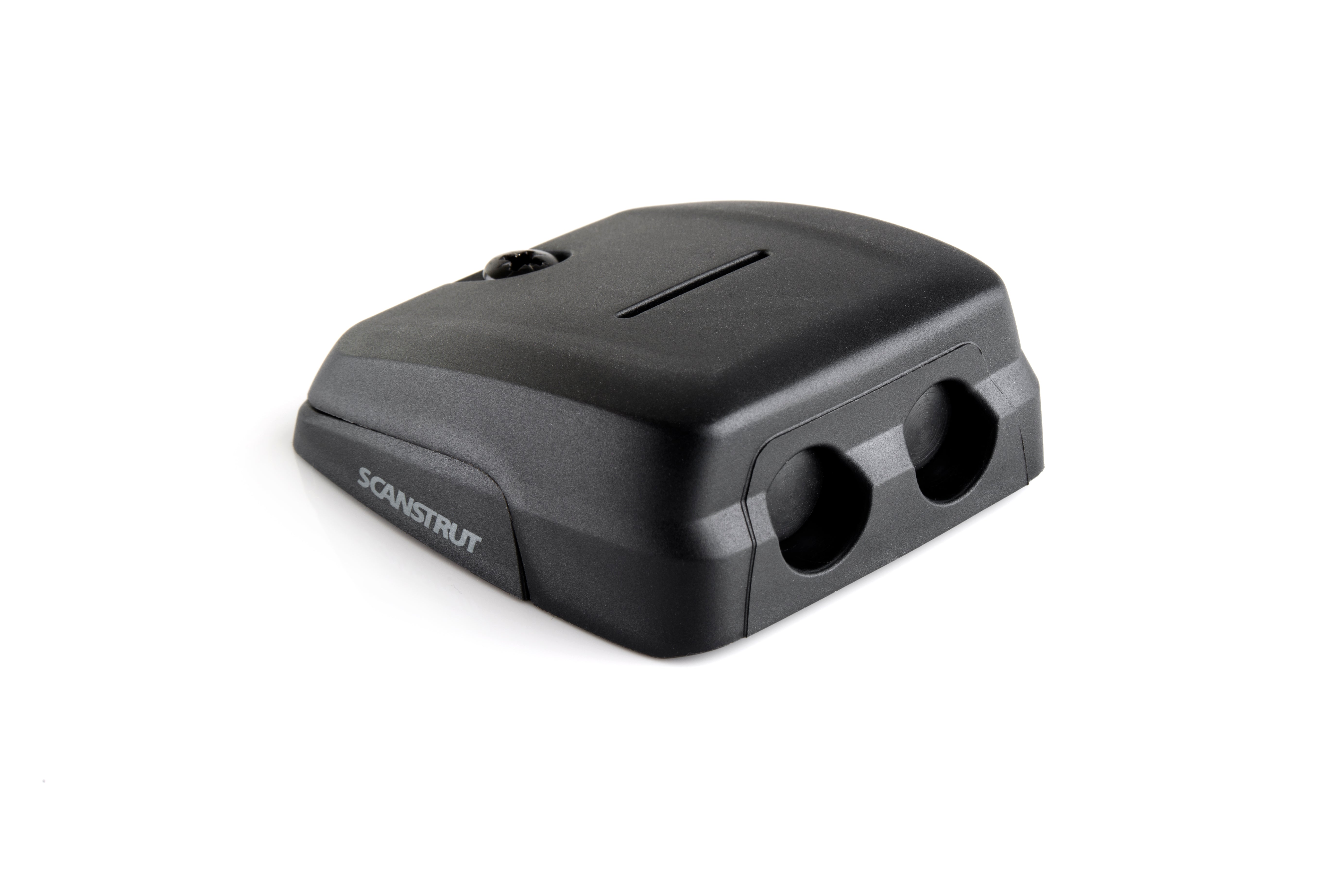

Scanstrut - DS-HD10-BLK Horizontal Double Cable Seal – black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut DS-HD10-BLK feeds two cables up to 10mm each through one horizontal entry, taking the heavier paired runs that a 6mm double seal will not accept. The black finish keeps these larger twin feeds unobtrusive on dark decks and panels.
Made from UV-stable, high-impact plastic, it maintains an IP68 watertight seal with no marine sealant required. Captive nuts keep assembly fast on both cables and allow the seal to be removed and refitted reliably whenever the wiring is serviced.
PRODUCT DETAILS
- Double horizontal cable seal for routing two cables externally to internally
- IP68 watertight seal
- Fits two cables of 6-10 mm in any combination
- Black finish to blend with dark surfaces
- Compact footprint - 66.5 mm W x 75.1 mm L x 28.5 mm H
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- UV-stable, hard-wearing materials with no messy sealant on the bungs
- Cable seal shell x1 (black)
- Base x1
- Gasket x1 (3M waterproof)
- Graduated sealing bungs (6-10 mm, plus blanks)
- 316 stainless steel fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Twin cable (2 cables) |
| Cable diameter range | 2 x 6-10 mm (0.23-0.39 in), any combination |
| Orientation | Horizontal double (side entry) |
| Waterproof rating | IP68 watertight |
Dimensions
| Width | 66.5 mm (2.61 in) |
| Length | 75.1 mm (2.95 in) |
| Height | 28.5 mm (1.12 in) |
Materials
| Trim material | High impact plastic |
| Finish | Black |
| Fixings material | 316 stainless steel |
| Gasket | Waterproof 3M gasket |
| Sealing bungs | Graduated bungs (6-10 mm) included in the package |
