Scanstrut
Starlink Tapered Mast
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

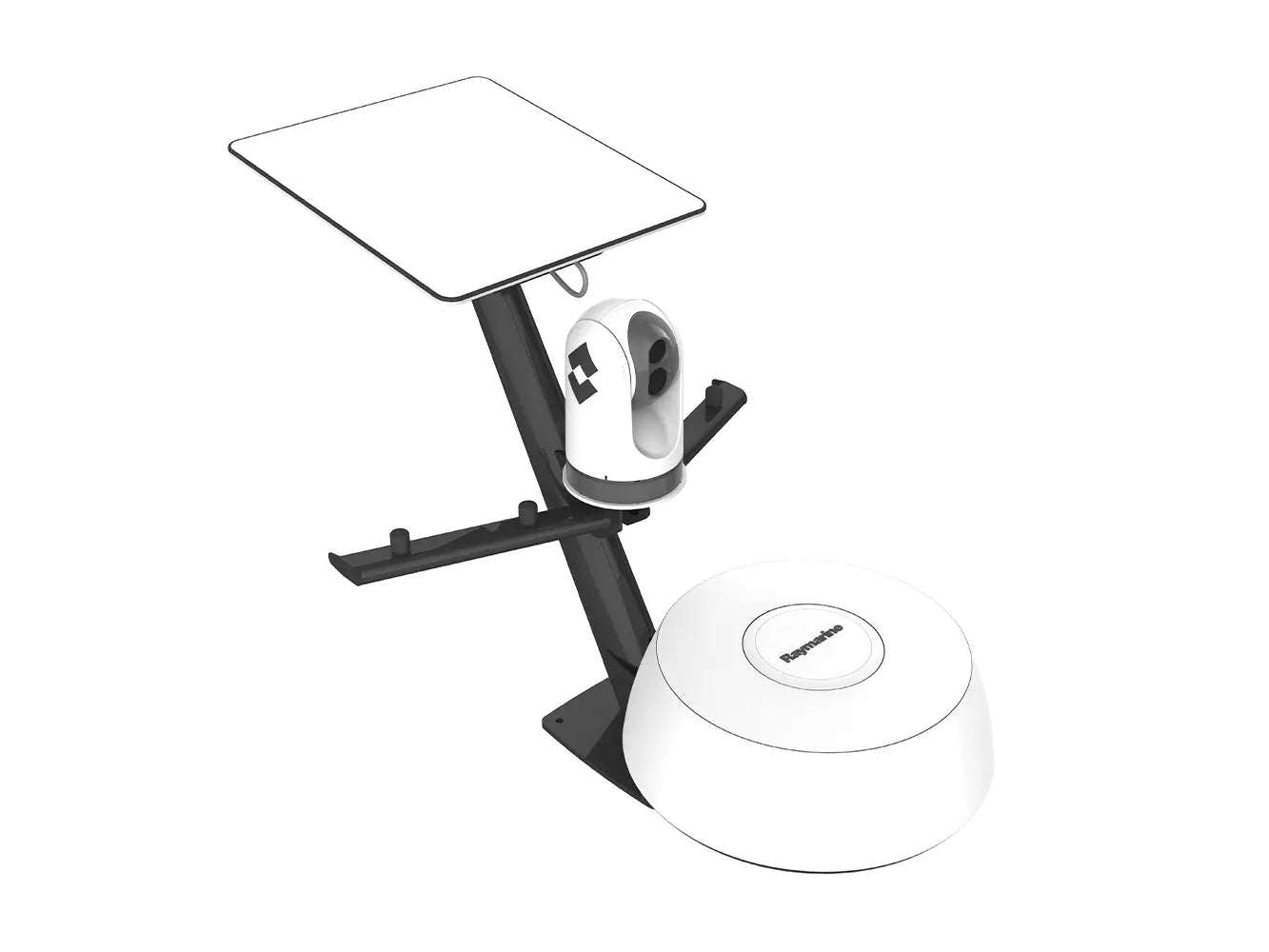

The PTM-R1-SL-BLK is the black-finish version of Scanstrut's most popular tapered mast for the Starlink Flat High-Performance antenna, made from marine-grade aluminium and coated with the unique Scanstrut four-step marine paint system. As a flagship radar mount it allows a single installation to carry Starlink together with radar, a thermal camera, lights, GPS, VHF and other aerials.
Access panels beneath each wing make cable routing straightforward, and the mast is shaped so NMEA connectors fit through without being removed during fitting. Pre-drilled holes let a compatible radar bolt directly to the mast using its own fixings, while the antenna fastens to the top plate.
Paired with a Scanstrut DS30 cable seal the installation is fully watertight, with no need to cut the radar or Starlink connectors and no marine sealant required. The mast is compatible with Raymarine, Garmin, Simrad and Lowrance radars, and the black finish gives a discreet, low-glare appearance.
PRODUCT DETAILS
- Tapered mast in a black finish that combines radar, a thermal camera, Starlink High-Performance and aerials in one sleek unit
- Compatible with Raymarine, Garmin, Simrad and Lowrance radars; supplied with a FLIR M100/M200 camera plate
- Pre-drilled holes let the radar fasten straight to the mast with its own bolts
- Internal cable runs and underside wing access panels keep NMEA connectors intact for a watertight install
- Powder-coated marine-grade aluminium, IP68 rated and tested to 30G shock (Starlink not included)
- PTM-R1-SL tapered mast, black x1
- Left and right PTM wings x1 each
- Starlink mounting wedge x1
- FLIR M100/M200 camera plate and riser kit x1
- Base seal and grommets
- Mounting bolts, washers, nuts and nut covers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Tapered mast for Starlink, thermal camera and radar (black) |
| Finish | Black |
| Mast height | 808mm (31.83in) |
| Environmental rating | IP68; tested to 30G shock, salt spray and PROP65 compliant |
Compatibility
| Fits antenna | Starlink Flat High-Performance (not included) |
| Radar compatibility | Raymarine, Garmin, Simrad and Lowrance radars |
| Camera compatibility | FLIR M100/M200 series (camera plate supplied) |
| Aerial mounts | GPS / VHF / Navtex on each wing (1in x 14 TPI), small and medium antennas only, max 1.5kg per wing |
Materials
| Construction | Powder-coated marine-grade aluminium |
Fixing
| Mounting | Pre-drilled holes; radar fastens straight to the mast with its own bolts. Base plate Ø10mm (0.39in) x4 fixings |
Dimensions
| Base plate | 446 x 393.2mm (17.56 x 15.48in) |
