Shakespeare 4710 Low Profile Stainless Steel Flange Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

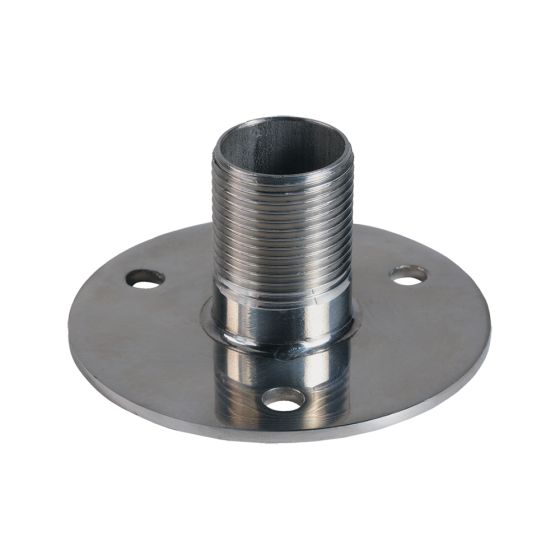

The Shakespeare 4710 is a compact, heavy-duty stainless steel flange mount for GPS, radar, marine TV and shorter VHF antennas. Standing only 25mm high on a 70mm round base, it gives a clean, low profile fixing to a deck, bulkhead or the top of a radar arch.
The mount carries a standard 1 inch by 14 TPI male thread to suit most marine antenna ferrules and is rated for antennas up to 5 feet. It is a fixed mount, so it does not tilt for lowering the antenna and is best suited to permanent installations where a low, rigid base is preferred.
PRODUCT DETAILS
- Heavy-duty stainless steel flange mount
- Low profile, only 25mm high
- 70mm round base for deck or bulkhead fixing
- Standard 1 inch by 14 TPI male thread
- Ideal for GPS, radar and marine TV antennas
- Suits shorter antennas up to 5 feet
- Rigid fixed mount for permanent installation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Physical
| Material | Stainless steel |
| Mount Type | Low profile flange, fixed |
| Height | 25mm (1 inch) |
| Base Diameter | 70mm (2.75 inch) |
| Antenna Thread | 1 inch by 14 TPI male |
General
| Maximum Antenna Length | 5 feet |
| Typical Use | GPS, radar, marine TV and shorter VHF antennas |
