Shakespeare

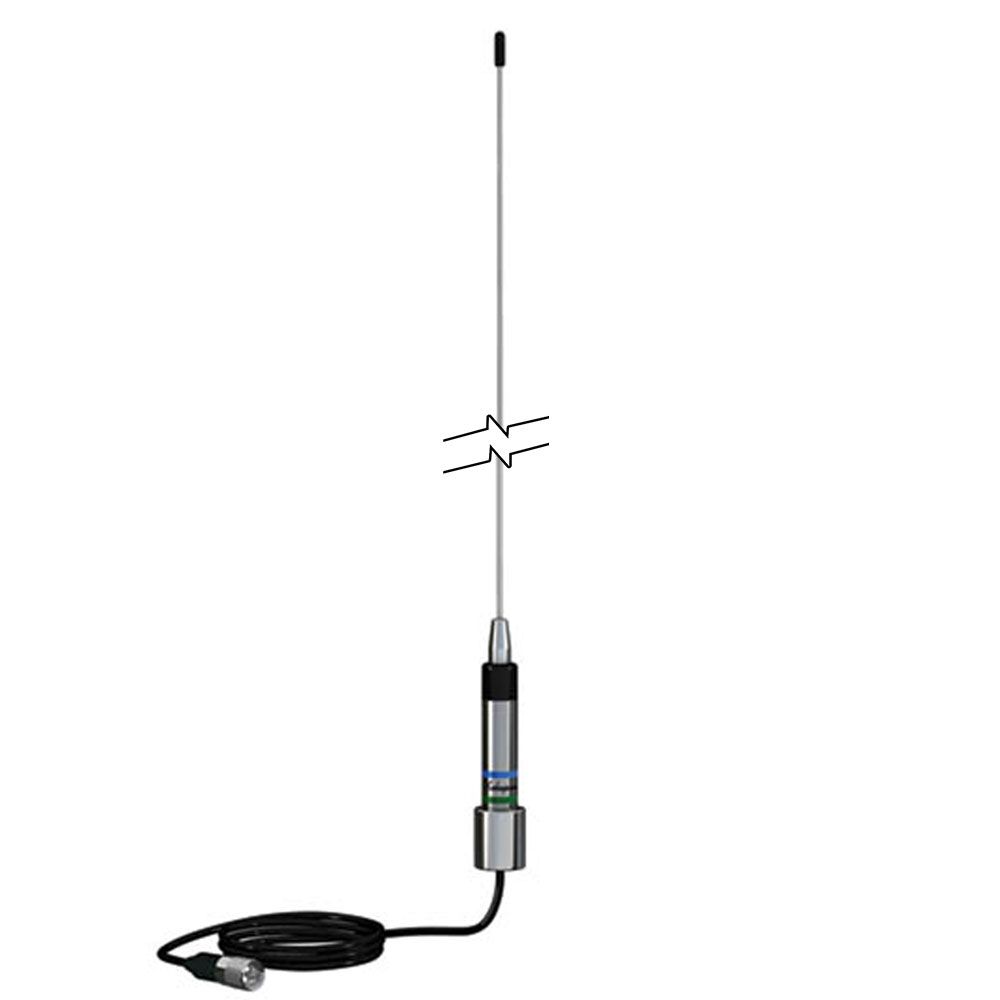

Shakespeare Skinny Mini 3dB Stainless Steel VHF Whip Antenna - 0.9m
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Shakespeare Skinny Mini is a compact, lightweight 0.9m stainless steel VHF whip antenna delivering 3dB gain across the marine band. Its slim profile makes it well suited to bass boats, sailing yachts, RIBs and other vessels where a full-length antenna would be impractical.
The chrome-plated brass ferrule seals a tin-plated copper wire coil and carries a standard 1 inch by 14 thread to fit common marine mounts. It is supplied with 4.5m of RG-58 coaxial cable terminated in a PL-259 connector, and handles up to 50 watts of input power.
PRODUCT DETAILS
- Compact 0.9m stainless steel VHF whip
- 3dB gain across the 156 to 162MHz marine band
- Slim profile for space-limited installations
- Chrome-plated brass ferrule sealing a tin-plated copper coil
- Standard 1 inch by 14 thread
- Supplied with 4.5m RG-58 cable and PL-259 connector
- 50 watt maximum input power
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Gain | 3 dB |
| Frequency Range | 156 to 162 MHz |
| VSWR | 1.5 nominal at 156.8 MHz |
| Maximum Input Power | 50 watts |
Physical
| Length | 0.9 m (3 feet) |
| Whip Material | Stainless steel |
| Ferrule | Chrome-plated brass, 1 inch by 14 TPI thread |
| Cable | 4.5 m RG-58 |
| Connector | PL-259 |
