Navico

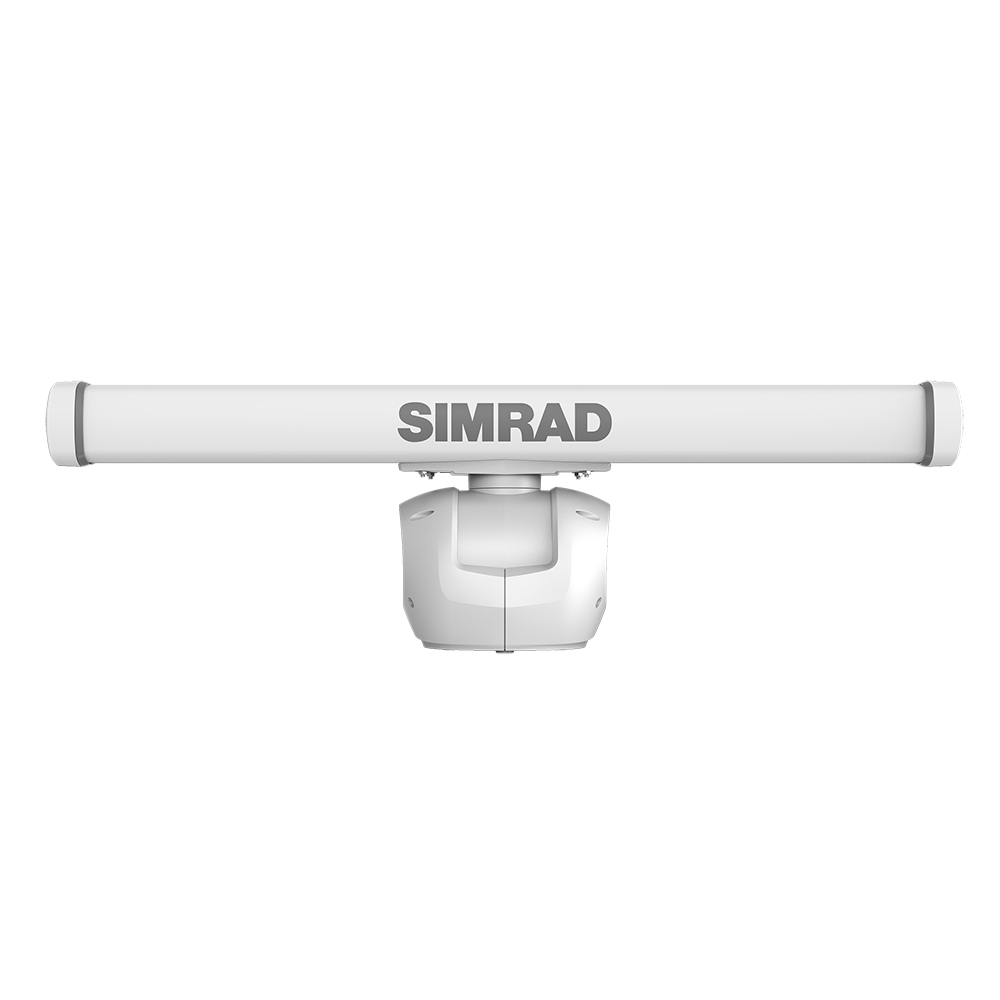

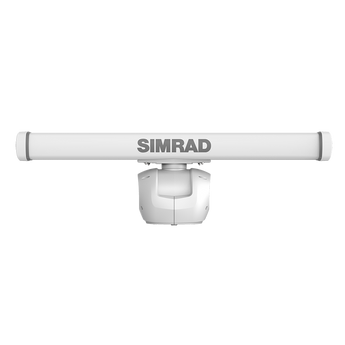

HALO® 2004 Open Array Radar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The HALO 2004 is the 4-foot open-array model in the Simrad HALO 2000 series of pulse-compression radars. Its 50W solid-state transceiver delivers performance comparable to a 12kW magnetron radar, detecting targets from around six metres out to 72 nautical miles with the clarity needed for confident navigation. Low-power pulsed transmissions make it safe to run in marinas, while features such as VelocityTrack Doppler colouring, ZoneTrack, Dangerous Target Alerts, and preset Harbour, Offshore, Weather, and Bird modes bring professional-grade situational awareness and collision avoidance to recreational boaters. Supplied with the RI-50 interface and pedestal for connection to a compatible Simrad multifunction display.
PRODUCT DETAILS
- 50W solid-state pulse-compression transceiver
- 4-foot open array with detection to 72 nautical miles
- Safe low-power operation in harbours and marinas
- VelocityTrack Doppler colouring for collision avoidance
- ZoneTrack tracking of up to 50 targets
- Preset Harbour, Offshore, Weather, and Bird modes
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Radar
| Radar technology | Pulse Compression |
| Array size | 4 ft open array |
| Transmit power | 50 W |
| Maximum range | 72 nm |
| Minimum range | 75 m (300 ft) |
| Horizontal beam width | 1.8 deg (1.3 deg with beam sharpening) |
| Rotation speed | 16 to 48 rpm (mode dependent) |
| Maximum wind speed | 80 knots |
Physical
| Dimensions (W x H x D) | 324 x 429 x 339 mm |
| Kit weight | 30 kg (66.1 lbs) |
| Waterproof rating | IPX6 |
Electrical
| Supply voltage | 12 or 24 V DC into the RI-50 |
| Peak power consumption | 235 W (peak, 12V) |
| Typical power consumption | 45 to 60 W (average) |
Environment
| Operating temperature | -25 to +55 C |
