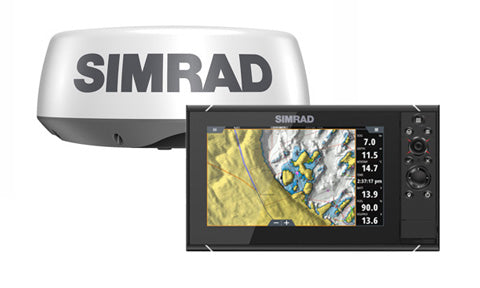

Simrad NSS9 EVO3S Halo 20+ Bundle
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This bundle pairs the 9-inch NSS9 evo3S multifunction display with a Simrad HALO20+ pulse-compression radar dome and a 10 m radar cable, giving a complete navigation, sonar and radar package from one box. The SolarMAX HD IPS screen stays clear in bright sun and through polarised sunglasses, and the iMX 8 processor keeps charts, sonar and radar running smoothly.
The display's built-in 1 kW CHIRP echosounder and two XSonic transducer ports support conventional 50/200 kHz, HDI, TotalScan and ForwardScan sonar, while built-in GNSS, Wi-Fi and NMEA 2000 allow standalone or networked operation. The HALO20+ dome adds short to mid-range radar coverage with fast target updates for situational awareness in traffic and poor visibility.
The system can be expanded with further HALO radar, additional sonar modules and a fully integrated Simrad autopilot, and mirrored to mobile devices through the Simrad app.
PRODUCT DETAILS
- Bundle of the NSS9 evo3S multifunction display and Simrad HALO20+ pulse compression radar
- SolarMAX HD IPS display with fast iMX 8 processor and ultra-wide viewing angles
- Hybrid all-weather touchscreen plus rotary dial and keypad
- HALO20+ dome radar with VelocityTrack Doppler and dual-range operation
- Built-in GNSS, 1 kW CHIRP echosounder, Wi-Fi, Bluetooth and NMEA 2000
- Complete with 10 m radar cable
- NSS9 evo3S display unit with sun cover, bezel and mounting hardware
- Simrad HALO20+ radar dome
- 10 m radar cable
- Power cable
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 9 inch |
| Resolution | 1280 x 720 px |
| Display type | High Visibility SolarMAX HD IPS optically bonded TFT |
| Brightness | 1200 nits |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right (typical at contrast ratio 10) |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 23 W (plus/minus 4 W) |
| Fuse rating | 5 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
| Humidity | IEC 60945 damp heat 66 C at 95% relative (48 hr) |
Connectivity
| GNSS receiver | Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS; SBAS (WAAS, EGNOS, MSAS, GAGAN) |
| Ethernet | 1 port (5-pin) |
| NMEA 2000 | 1 port (Micro-C), 1 LEN |
| NMEA 0183 | 1 talker/listener via optional adaptor cable |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | Internal Bluetooth 4.0 (Classic) |
| Video input | 2 ports composite video (RCA) via optional adaptor cable |
| Data card slots | 2 slots (microSD) |
Sonar
| Echosounder | Built-in 1 kW CHIRP, two 9-pin XSonic sonar ports (50/200 kHz, HDI, TotalScan, ForwardScan) |
Physical
| Dimensions (W x H x D) | 287 x 166 x 90 mm (display, including connector boss) |
| Weight (display only) | 1.41 kg |
| Compass safe distance | 50 cm |
| Mounting type | Supplied bracket or panel mount |
Approvals
| Warranty | 2 years |
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
