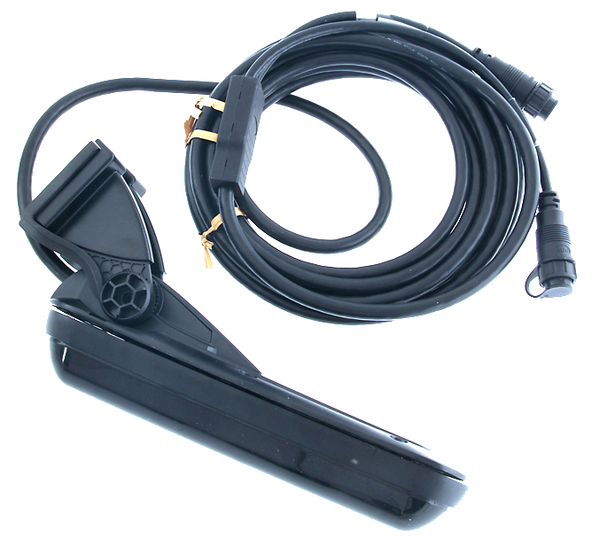

Lowrance, Simrad StructureScan 3D Transom Mount Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This StructureScan 3D transom-mount transducer produces three-dimensional scans of underwater terrain and fish-holding structure, creating a high-resolution, 180 degree view beneath the boat. Multi-beam sonar technology renders picture-like 3D views of structure and bottom contours and also boosts two-dimensional DownScan and SideScan imaging, with DownScan detail to around 300 ft (92 m) and SideScan coverage to around 600 ft (183 m) on each side.
The transom-mount skimmer body installs without drilling the hull, making it an easy upgrade for trailer boats and smaller craft. It feeds a StructureScan 3D module and uses a 6 m (20 ft) cable. A thru-hull version is available for permanent installations.
PRODUCT DETAILS
- StructureScan 3D: SideScan, DownScan and 3D Imaging
- Transom mount, no thru-hull drilling required
- 180 degree three-dimensional view beneath the boat
- DownScan detail to 300 ft and SideScan to 600 ft each side
- 6 m (20 ft) cable; requires a StructureScan 3D module
No exploded diagram available for this product.
No compatible transducers listed for this product.
Sonar
| Type | StructureScan 3D transom-mount transducer |
| Imaging | SideScan, DownScan and 3D Imaging |
Frequencies
| StructureScan | 455 and 800 kHz |
Beam
| 3D coverage | 180 degree scanning arc |
Power
| DownScan max depth | 92 m (300 ft) |
| SideScan range | 183 m (600 ft) left and right |
Cable
| Cable length | 6 m (20 ft) |
Physical
| Mounting | Transom mount |
| Housing | Plastic skimmer |
