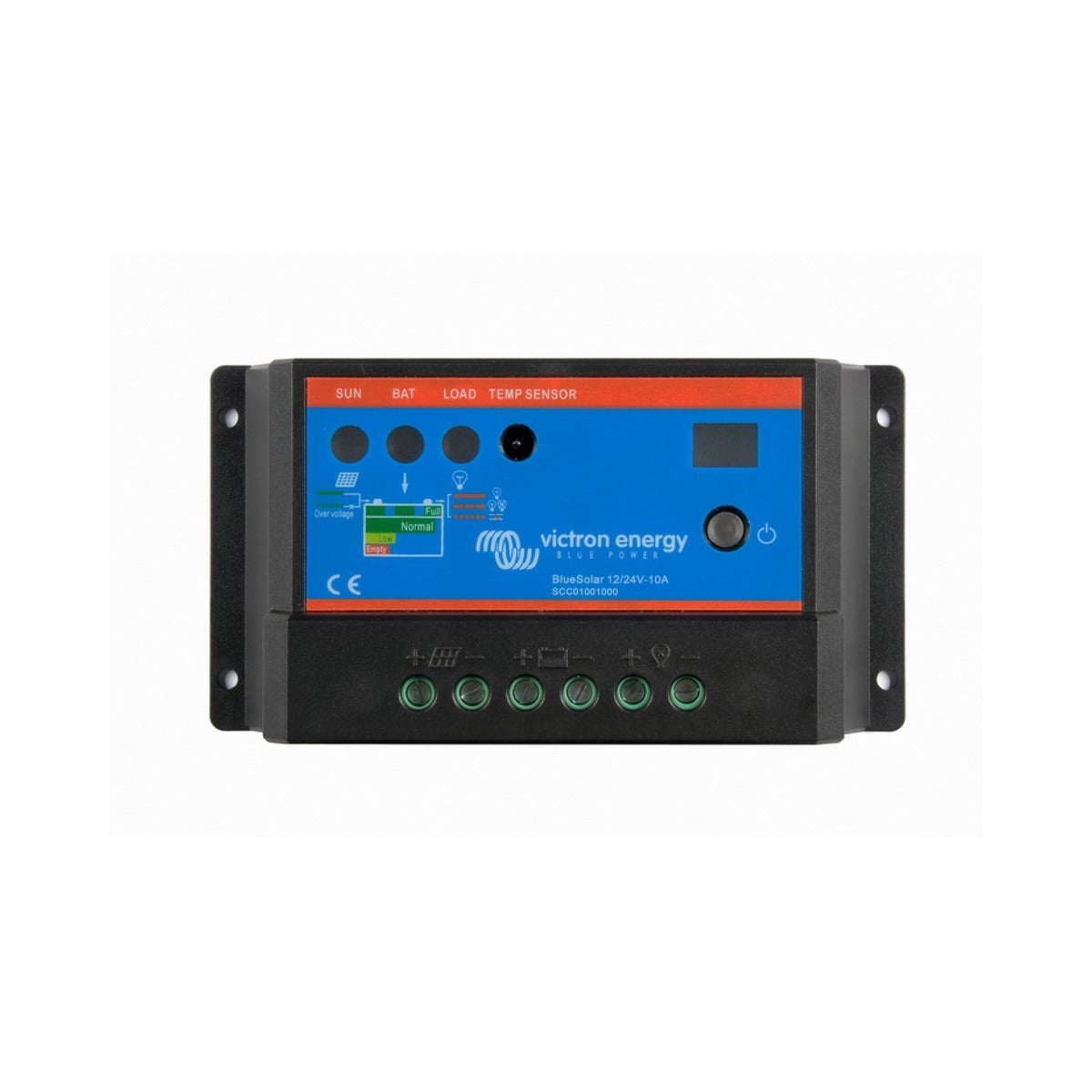

Victron BlueSolar PWM-Light 12/24V 10A

£24.00
Tax included. Shipping calculated at checkout.
SCC010010000
Compact 12/24V PWM solar charge controller rated 10A with automatic voltage detection, a seven-segment display and a load output with lighting timer. A simple, affordable choice for small solar and lighting systems.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

PRODUCT DETAILS

  • PWM charge controller for 12V and 24V systems (auto detect)
  • Rated charge current 10A; maximum solar voltage 28V/55V
  • Load output with low battery voltage disconnect
  • Lighting control function with timer
  • Two-digit seven-segment display for quick setup

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

TechnologyPWM (pulse width modulation)
Battery voltage12/24V with automatic system voltage detection
Maximum solar voltage28 V (12V) / 55 V (24V)
Rated charge current10 A

Charging

Charge voltage 'absorption'14.2 V / 28.4 V
Charge voltage 'float'13.8 V / 27.6 V
Charge algorithmThree stage (bulk, absorption, float), not programmable
Self-consumptionLess than 10 mA
Load outputManual control with low-voltage disconnect and lighting timer
Low voltage load disconnect11.2 V / 22.4 V
Low voltage load reconnect12.6 V / 25.2 V (manual), 13.1 V / 26.2 V (automatic)

Protection

ProtectionBattery reverse polarity (fuse), output short circuit, over temperature, overload

Environmental

Operating temperature-20 to +50°C (full load)
HumidityMax 95%, non-condensing

Physical

GroundingCommon positive
Power terminals5 mm² / AWG10
Protection categoryIP20
Weight0.15 kg
Dimensions (h x w x d)70 x 133 x 33.5 mm

Conformance

SafetyIEC 62109-1
