Garmin
ECU 14
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

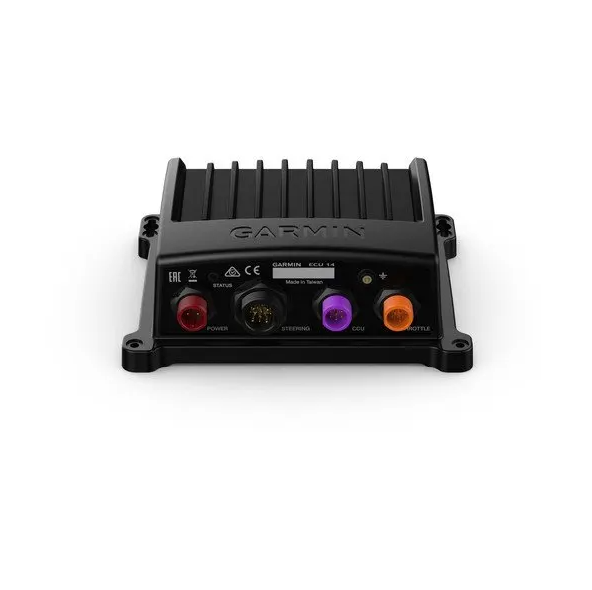

The Garmin ECU 14 is the electronic control unit for compatible Reactor hydraulic autopilot systems. It connects to and powers the course computer unit and the hydraulic pump, converting the autopilot heading commands into pump movement to steer the boat.
The ECU is fully gasketed and sealed to IPX7 and must be mounted close to the pump because the pump-to-ECU cables cannot be extended. It serves both as a core component of new installations and as a service or replacement part for existing Reactor hydraulic systems.
PRODUCT DETAILS
- Electronic control unit for compatible Reactor hydraulic autopilots
- Powers the course computer and the hydraulic pump
- Drives the pump from the autopilot heading data
- Fully gasketed aluminium alloy housing sealed to IPX7
- 40 A blade fuse protection
- Mounts close to the pump; pump cables cannot be extended
- Core component and service replacement part
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Control Unit
| Type | Electronic control unit (ECU 14) for compatible Reactor hydraulic autopilots |
| Function | Connects to and powers the course computer (CCU) and the hydraulic pump, driving the pump from CCU data |
| Mounting proximity | Mount within 0.5 m (19 in.) of the pump; pump-to-ECU cables cannot be extended |
Physical
| Dimensions (W x H x D) | 168 x 117 x 51 mm (6.6 x 4.6 x 2 in.) |
| Weight | 680 g (24 oz.) |
| Material | Fully gasketed, high-impact aluminium alloy |
| Water resistance | IEC 60529 IPX7 |
Electrical
| Input voltage | 11.5 to 30 Vdc |
| Fuse | 40 A, blade-type |
| Main power usage | 1 A (not including the pump) |
| Power cable length | 2.7 m (9 ft.) |
