Garmin

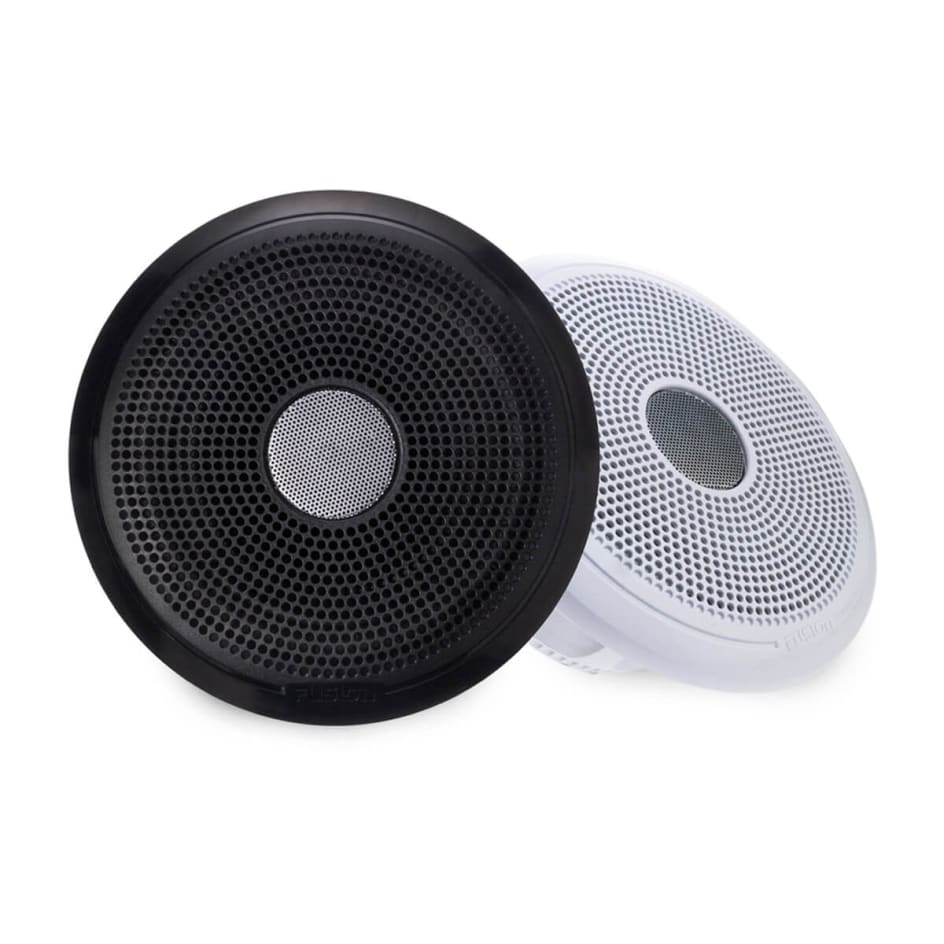

Fusion XS 7.7" Classic White & Black (No LED) 60w RMS
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Fusion XS Series 7.7 inch speakers step up the mid-range with a larger coaxial driver for greater output and low-end body, ideal for larger cockpits. Each speaker handles 60 W RMS (240 W peak) into 4 ohms, delivering full, clear sound that carries over engine and wind noise.
An aluminium dome tweeter and polypropylene cone with cloth surround keep the sound detailed and consistent, while the IP65 front rating protects against dust and water on deck. Interchangeable Classic White and Black grilles are supplied in the box, letting you tailor the look to your vessel. Sold as a pair.
PRODUCT DETAILS
- Fusion XS 7.7 inch coaxial drivers, 60 W RMS and 240 W peak per speaker
- Aluminium dome tweeter and polypropylene cone for clear, detailed sound
- True-Marine build with IP65 front rating resists dust and water on deck
- Wide 70 Hz to 18 kHz response with 92 dB sensitivity for efficient volume
- Interchangeable Classic White and Black grilles supplied, sold as a pair
- 2 x Fusion XS 7.7 inch speakers
- Classic White grilles
- Classic Black grilles
- Stainless steel mounting screws
- Mounting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Speaker size | 7.7 in |
| Power (RMS) | 60 W |
| Power (peak/max) | 240 W |
| Impedance | 4 Ω |
| Frequency response | 70 Hz to 18 kHz |
| Sensitivity | 92 dB (1 W/1 m) |
| Speaker type | 2-way coaxial |
| Tweeter | Aluminium dome |
| Lighting | None |
| Recommended amplifier power | 25 to 200 W RMS per channel |
Installation
| Mounting depth | 77 mm (3 in) |
| Cut-out diameter | 162 mm (6 3/8 in) |
| Overall diameter | 196 mm (7 11/16 in) |
| IP/marine rating | IP65 (front), True-Marine |
General
| Colour/finish | Classic White and Black grilles |
| Warranty | 2 years |
| Sold as | Pair |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
