Garmin
Fusion 7.7" Flush Mount, Round Black 50w RMS
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

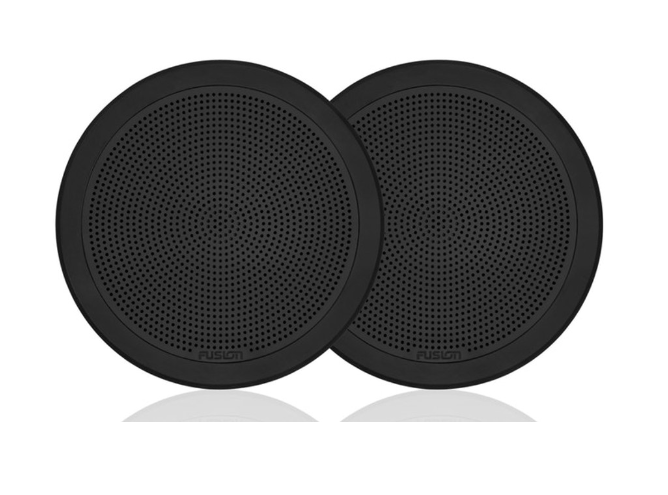

The Fusion FM Series 7.7 inch flush mount speakers deliver quality marine audio in a discreet, low-profile design that sits almost flush with the mounting surface. The larger 7.7 inch driver handles 50 W RMS (200 W peak) into 4 ohms, adding extra output and low-end body while pairing an aluminium dome tweeter with a polypropylene cone for clear, balanced sound.
A slim 2.5 mm mounting flange and internal tab fixings give a clean, screw-free appearance from the front, while the True-Marine build and IP65 front rating stand up to dust and water. This version has a round grille in black. Sold as a pair.
PRODUCT DETAILS
- Fusion FM 7.7 inch flush mount drivers, 50 W RMS and 200 W peak per speaker
- Low-profile design with a slim 2.5 mm flange for a near-flush finish
- Aluminium dome tweeter and polypropylene cone for clear, balanced sound
- True-Marine build with IP65 front rating resists dust and water on deck
- Round black grille, screw-free front appearance, sold as a pair
- 2 x Fusion FM 7.7 inch flush mount speakers
- Round black grilles
- Mounting hardware
- Mounting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Speaker size | 7.7 in |
| Power (RMS) | 50 W |
| Power (peak/max) | 200 W |
| Impedance | 4 Ω |
| Frequency response | 80 Hz to 18 kHz |
| Sensitivity | 91 dB (1 W/1 m) |
| Speaker type | 2-way coaxial, flush mount |
| Tweeter | Aluminium dome |
| Lighting | None |
| Recommended amplifier power | 20 to 150 W RMS per channel |
Installation
| Shape | Round |
| Mounting depth | 83 mm (3 1/4 in) |
| Cut-out diameter | 165 mm (6 1/2 in) |
| Overall diameter | 181 mm (7 1/8 in) |
| Panel thickness | 3 mm to 25 mm |
| IP/marine rating | IP65 (front), True-Marine |
General
| Colour/finish | Black |
| Warranty | 2 years |
| Sold as | Pair |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
