JL Audio® M6 Marine Speakers
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The JL Audio M6 7.7-inch marine speaker is a premium coaxial system engineered for demanding open-water audio. A long-excursion mica-filled polypropylene woofer pairs with a suspended 1-inch treated silk-dome tweeter to deliver wide, linear frequency response and high output. Marine-grade construction with UV-stable materials and stainless steel hardware meets ASTM salt-fog standards.
This model features a premium white Luxe grille and no LED lighting, and is supplied as a single speaker rather than a pair. Rated at 100 W continuous power into 4 ohms, the M6-770X is a clear upgrade in fidelity and volume over standard marine speakers.
PRODUCT DETAILS
- Oversized 7.7-inch coaxial with suspended 1-inch silk-dome tweeter
- 100 W continuous / 200 W peak power at 4 ohms
- Sensitivity 91 dB, frequency response 45 Hz - 25 kHz

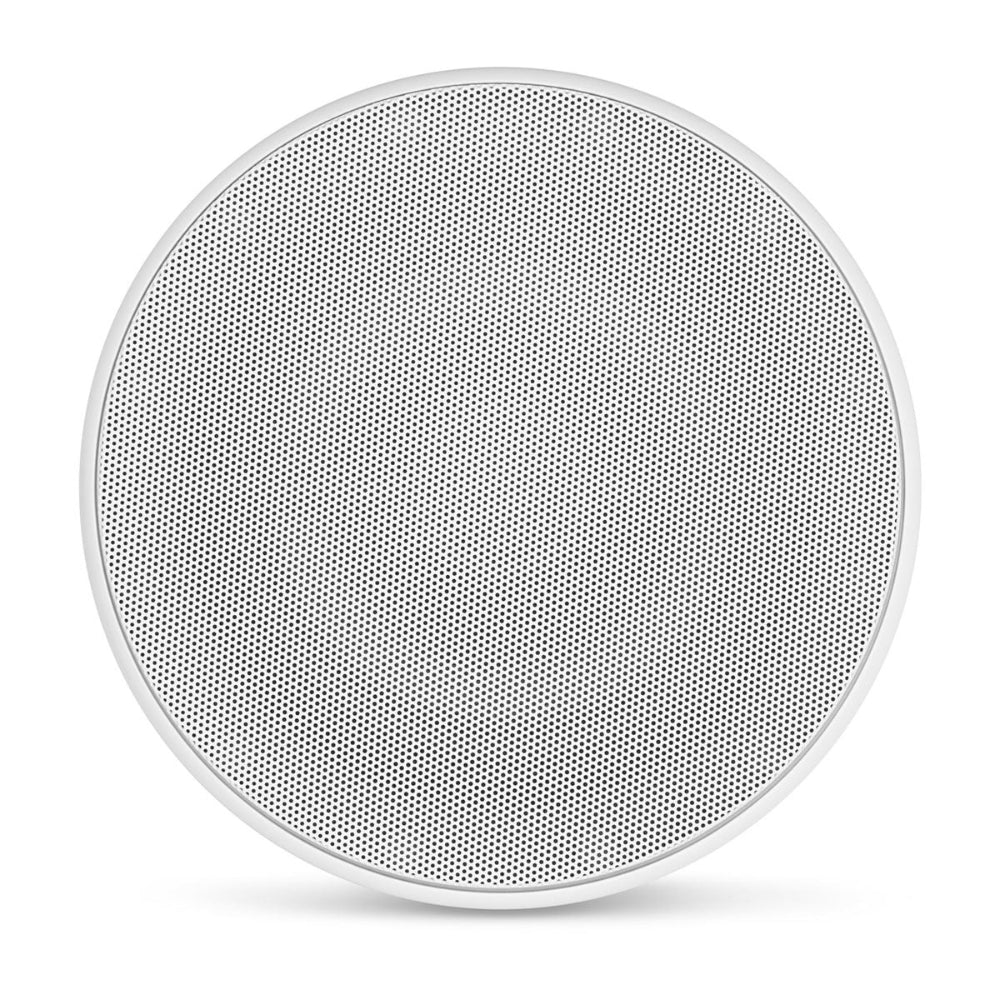

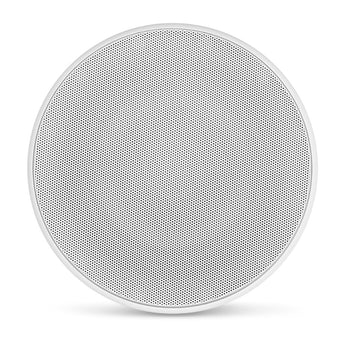

- Premium white Luxe grille finish
- Supplied as a single speaker; ASTM salt-fog rated
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Peak power | 200 W |
| Continuous power (RMS) | 100 W |
| Nominal impedance | 4 ohms |
| Sensitivity | 91 dB |
| Frequency response | 45 Hz - 25 kHz |
| Tweeter | 1-inch treated silk dome (suspended) |
General
| Type | 2-way marine coaxial speaker (single) |
| Cone material | Mica-filled polypropylene |
| Colour | Gloss white (Luxe grille) |
| LED lighting | None |
Installation
| Nominal size | 7.7 inch (196 mm) |
| Mounting cutout diameter | 7.47 inch |
| Mounting depth | 4.31 inch |
