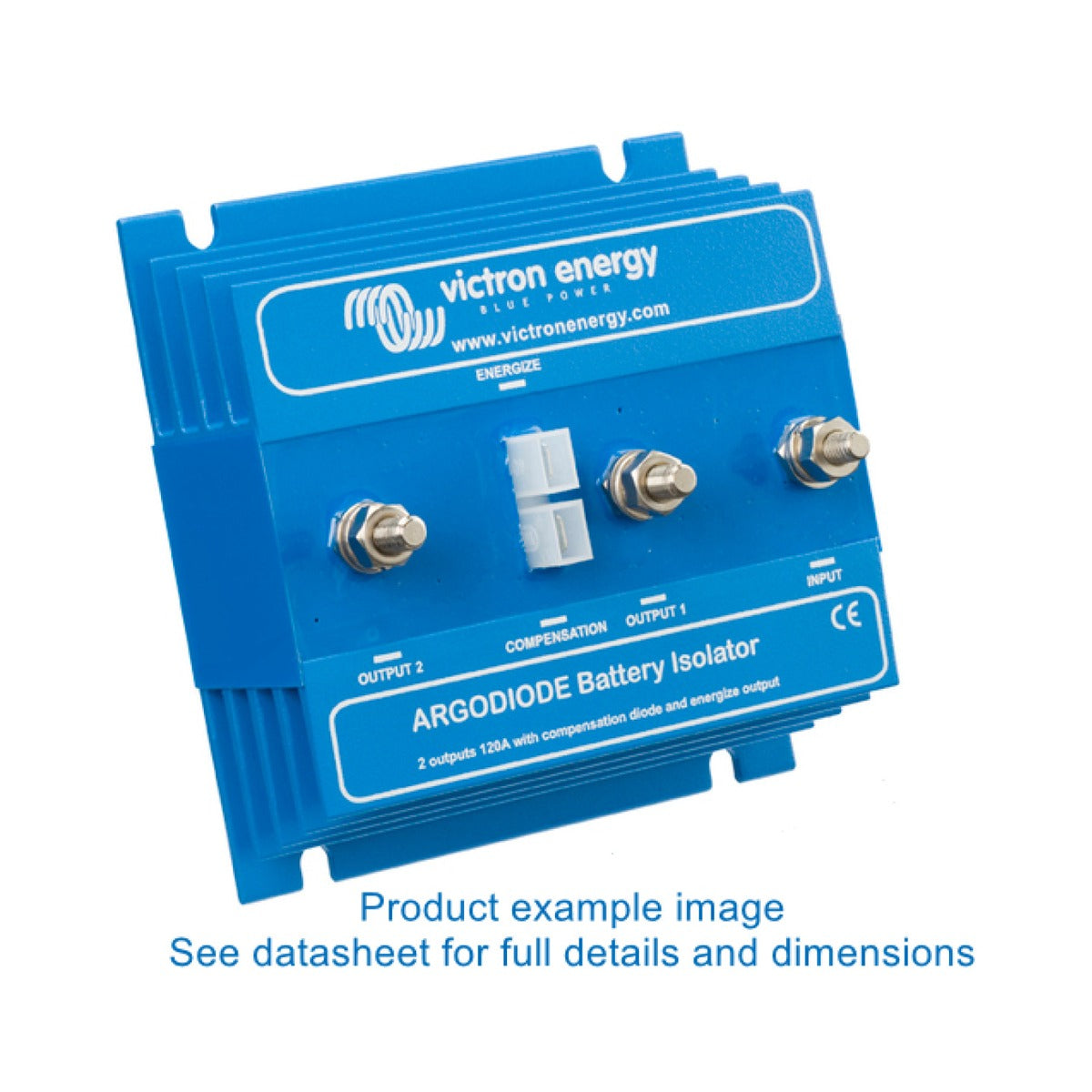

Victron Argo Diode Battery Isolator 120A (2 Outputs)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Argo Diode Battery Isolator 120A charges two independent battery banks from a single alternator or charger while keeping them fully isolated from one another. Discharging one bank, such as a domestic service battery, can never flatten the other, so the engine start battery is always protected and ready.
Isolation is achieved with Schottky diodes, giving a low forward voltage drop of roughly 0.3 V at light load and about 0.45 V at the rated output. A fitted compensation diode lets you nudge the alternator output voltage up slightly to offset this drop, and an alternator energize input supplies B+ when the engine run switch is closed so machine-sensing alternators start charging reliably.
The isolator adjusts automatically to 12 V or 24 V systems and requires no control wiring or maintenance. Heavy-duty M8 stud connections and a compact steel enclosure suit marine, motorhome and off-grid installations where two banks must share one higher-output charge source.
PRODUCT DETAILS
- Charges two isolated battery banks from a single alternator or charger
- Prevents cross-discharge between service and engine start batteries
- Low-loss Schottky diodes, approximately 0.3 V drop at low current and 0.45 V at rated output
- Compensation diode to raise alternator voltage and offset the diode drop
- Alternator energize input powers B+ when the engine run switch is closed
- Automatically suits 12 V and 24 V systems
- Heavy-duty M8 stud connections, no maintenance required
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge current | 120 A |
| Number of outputs | 2 |
| Nominal battery voltage | 12 V and 24 V |
| Technology | Schottky diode isolator |
Performance
| Maximum alternator current | 120 A |
| Voltage drop | Approximately 0.3 V at low current, 0.45 V at rated output |
| Compensation diode | Yes |
| Alternator energize input | Yes |
Physical
| Connection | M8 studs |
| Compensation diode and energize connection | 6.3 mm Faston |
| Dimensions (h x w x d) | 60 x 120 x 115 mm |
| Weight | 0.8 kg |
Conformance
| Warranty | 5 years |
