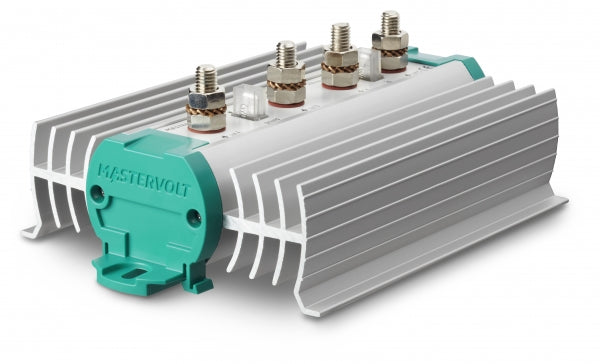

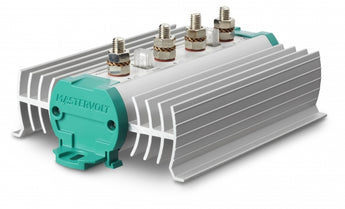

Mastervolt Battery Mate 2503 IG Mastervolt Battery Mate 2503 IG
Mastervolt Battery Mate 2503 IG

Mastervolt

Mastervolt Battery Mate 2503 IG

£342.10
Tax included. Shipping calculated at checkout.
83125035
High-capacity electronic MOSFET battery isolator that charges three batteries from one alternator or charger with negligible voltage drop.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Mastervolt Battery Mate 2503 IG is a high-capacity electronic battery isolator that charges three independent battery banks from a single alternator or battery charger. Unlike conventional diode splitters, its MOSFET technology compensates for the voltage drop, so charging continues at the correct voltage level and every battery charges quickly and fully without any adjustment to the alternator.

Because the voltage loss between the alternator and the batteries is negligible, the Battery Mate performs far better than a diode isolator. It is compatible with any type of alternator or battery charger, in both existing and new systems, even where the charge voltage cannot be adjusted. The 2503 IG is ideal for larger systems with alternators up to a 250 A charge current.

A LED on the unit indicates when the power input is active. The corrosion-proof construction uses aluminium heat sinks with the electronic components encased in synthetic material, and the synthetic end plates carry the connection lugs for fast, secure installation.

PRODUCT DETAILS

  • Electronic MOSFET isolator with negligible voltage drop
  • Charges 3 independent battery banks
  • Ideal for high-capacity systems up to 250 A alternator
  • Compatible with any alternator or battery charger
  • No alternator adjustment required for full charging
  • LED indicates active power input
  • Corrosion-proof casing with aluminium heat sinks
  • Connection lugs on end plates for fast installation

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Number of battery outlets3

Technical

Max. output battery charger200 A
Max. output alternator250 A

Physical

Dimensions (HxWxD)207 x 140 x 80 mm
Weight1 kg

No videos available for this product.

How is the Battery Mate different from a conventional diode battery isolator?
The Battery Mate uses electronic MOSFET technology that compensates for the voltage drop, so the voltage loss between the alternator and battery is negligible. A conventional BI diode splitter has a voltage drop of around 0.6 V that has to be compensated by adjusting the charger or alternator. The Battery Mate needs no such adjustment.
How many batteries can the Battery Mate 2503 IG charge?
It has three battery outlets, so it charges three independent battery banks from a single alternator or battery charger.
What size alternator is the 2503 IG suitable for?
The 2503 IG is the high-capacity model, rated for a maximum alternator charge current of 250 A and a maximum battery charger output of 200 A.
Is it compatible with my existing charging system?
Yes. The Battery Mate is compatible with any type of alternator or battery charger in both existing and new systems, even where the charge voltage cannot be adjusted.
Does it show whether it is working?
Yes. A LED display on the unit indicates whether the power input is active.
