Scanstrut PTM-R2-SL Starlink & Furuno Radar Tapered Mast
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The PTM-R2-SL is a taller tapered mast in the Scanstrut Starlink range, standing 820.4mm (32.30 inch) high and made from marine-grade aluminium. A remake of the classic Scanstrut tapered mast, it is designed to raise the Starlink Flat High-Performance antenna and a radar well clear of the deck on a single mounting platform, while making installation as simple as possible.
Access panels under each wing give easy reach for cable routing, and the mast is shaped so NMEA connectors pass through without being removed. Pre-drilled mounting holes let a compatible radar fasten straight to the mast with its own bolts, and the antenna mounts directly to the top plate.
With a Scanstrut DS30 cable seal the installation is fully watertight, with no need to cut the radar or Starlink connectors and no marine sealant required. The finish is applied using the unique Scanstrut four-step marine paint system for lasting durability.
PRODUCT DETAILS

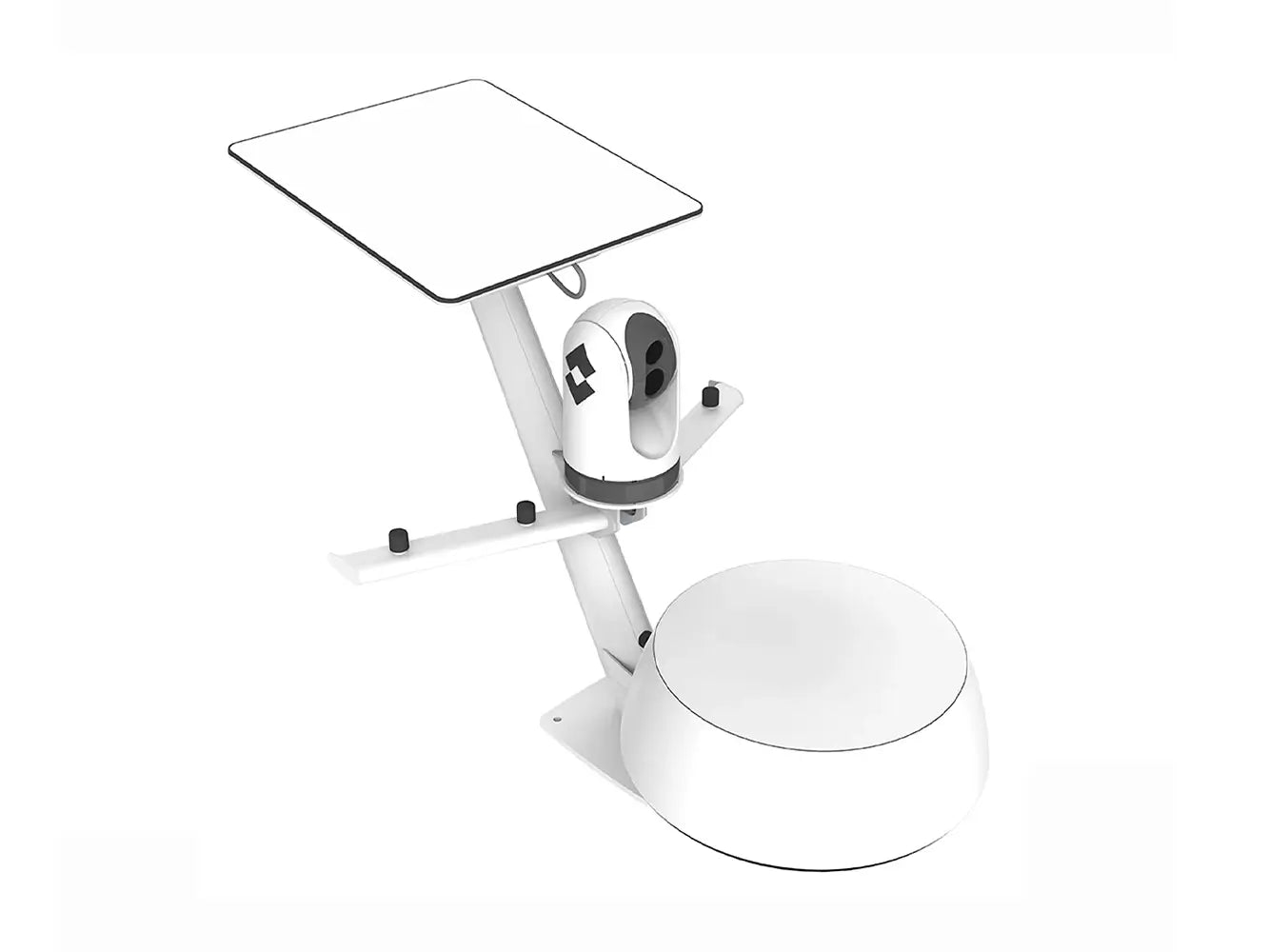

- Tapered mast that combines radar, a thermal camera, Starlink High-Performance and aerials in one sleek unit
- Compatible with Furuno radars; supplied with a FLIR M100/M200 camera plate
- Pre-drilled holes let the radar fasten straight to the mast with its own bolts
- Internal cable runs and underside wing access panels keep NMEA connectors intact for a watertight install
- Powder-coated marine-grade aluminium, IP68 rated and tested to 30G shock (Starlink not included)
- PTM-R2-SL tapered mast x1
- Left and right PTM wings x1 each
- Starlink mounting wedge x1
- FLIR M100/M200 camera plate and riser kit x1
- Base seal and grommets
- Mounting bolts, washers, nuts and nut covers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Tapered mast for Starlink, thermal camera and radar |
| Mast height | 808mm (31.83in) |
| Environmental rating | IP68; tested to 30G shock, salt spray and PROP65 compliant |
Compatibility
| Fits antenna | Starlink Flat High-Performance (not included) |
| Radar compatibility | Furuno radars |
| Camera compatibility | FLIR M100/M200 series (camera plate supplied) |
| Aerial mounts | GPS / VHF / Navtex on each wing (1in x 14 TPI), small and medium antennas only, max 1.5kg per wing |
Materials
| Construction | Powder-coated marine-grade aluminium |
Fixing
| Mounting | Pre-drilled holes; radar fastens straight to the mast with its own bolts. Base plate Ø10mm (0.41in) x4 fixings |
Dimensions
| Base plate | 446 x 393.2mm (17.56 x 15.48in) |
