B&G, Simrad NAC-3 Autopilot Core Pack B&G, Simrad NAC-3 Autopilot Core Pack
B&G, Simrad NAC-3 Autopilot Core Pack

B&G

B&G, Simrad NAC-3 Autopilot Core Pack

£2,410.00
Tax included. Shipping calculated at checkout.
000-13336-001

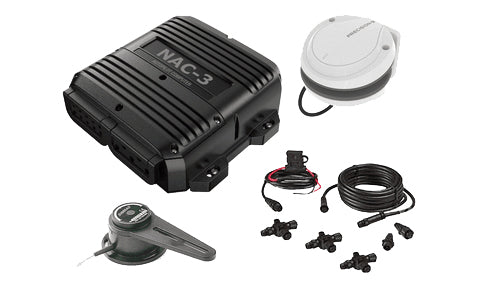

The B&G and Simrad NAC-3 Autopilot Core Pack combines the high-current NAC-3 computer with a Precision-9 compass, an RF25N rudder feedback unit and a NMEA 2000 starter kit. It provides the core sensors to commission a pilot on boats over 10 metres with heavy-duty drives. Add a drive unit and controller to finish the system.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

Simrad NAC-3 Core Pack With Rudder Feedback

Pack consists of:

000-13250-001 NAC-3 Autopilot Computer
000-12607-001 Precision-9 Compass
000-10756-001 RF25 Rudder Feedback
000-10760-001 Micro-C Backbone Kit

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

PRODUCT DETAILS

  • NAC-3 Core Pack with rudder feedback: NAC-3 autopilot computer, Precision-9 compass, RF25 rudder feedback and Micro-C backbone kit
  • Designed for boats 10 metres (33 feet) or greater in length
  • Rated for high-current hydraulic drives, mechanical drive units and solenoid valves: 30 amps continuous (50 amps peak)
  • Supports Simrad RF25 and RF300 rudder feedback units
  • Virtual rudder feedback option for outboard and sterndrive boats
  • NMEA 2000 connectivity and NMEA 0183 input
  • 1 x NAC-3 Autopilot Computer (000-13250-001)
  • 1 x Precision-9 Compass (000-12607-001)
  • 1 x RF25 Rudder Feedback (000-10756-001)
  • 1 x Micro-C Backbone Kit (000-10760-001)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pack ContentsNAC-3 autopilot computer, Precision-9 compass, RF25 rudder feedback unit and Micro-C backbone kit
Recommended Boat Length10 metres (33 feet) or greater
Warranty2 years

Electrical

Computer Drive OutputReversible motor 30 A continuous, 50 A peak (1s); or on/off solenoid 12/24 V DC
Computer Supply Voltage12/24 V DC +/- 10-30%

Connectivity

NetworkNMEA 2000 and NMEA 0183

No videos available for this product.

What is included in the NAC-3 Autopilot Core Pack?
The pack contains the high-current NAC-3 autopilot computer, the Precision-9 compass, an RF25 rudder feedback unit and a Micro-C backbone (NMEA 2000 starter) kit.
What size of boat is this pack for?
It is intended for boats 10 metres (33 feet) or greater, with the NAC-3 rated to drive high-current hydraulic pumps, linear rams, mechanical drives and solenoid valves at up to 30 amps continuous.
Do I still need to buy a drive unit?
Yes. The pack supplies the computer, compass, rudder feedback and network backbone. A compatible high-current drive unit is required to suit your steering system.
What is the difference between this pack and the VRF pack?
This pack includes an RF25 physical rudder feedback unit. The NAC-3 VRF pack omits the rudder feedback and uses Virtual Rudder Feedback for outboard and sterndrive boats.
