Raymarine Evolution EV-300 Solenoid Autopilot Pack

Raymarine

Raymarine Evolution EV-300 Solenoid Autopilot Pack

Name: Raymarine Evolution EV-300 Solenoid Autopilot Pack
Brand: Raymarine
SKU: T70160
Price: 2795.00 GBP
Availability: InStock

£2,795.00

Tax included. Shipping calculated at checkout.

T70160

Complete Evolution autopilot for vessels with solenoid-controlled electro-hydraulic steering. The EV-300 pack combines the EV-1 Sensor Core, ACU-300 with included rudder reference sensor, p70Rs rotary head and cabling kit, and works with constant-running hydraulic drives.

Quantity

✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £251.55
+2 years (up to 5 years total) £503.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Raymarine Evolution EV-300 Solenoid Pilot (T70160) brings Evolution autopilot control to vessels whose steering is operated by solenoids and constant-running hydraulic pumps, an arrangement common on commercial hulls, larger motor yachts and hydraulically steered workboats. The ACU-300 actuator control unit interacts directly with the boat's steering gear solenoids, switching up to 5 A, and works with Raymarine and third party constant-running drive systems. A remote rotary rudder angle reference sensor is included with the ACU-300 and is essential to the system.

The pack contains the EV-1 Sensor Core, ACU-300, p70Rs rotary control head and the Evolution SeaTalkng cabling kit. The 9-axis sensor commissions without calibration and the system accepts 12 or 24 volt supplies. Pilot control is also available from a compatible Axiom chartplotter on the same SeaTalkng network.

PRODUCT DETAILS

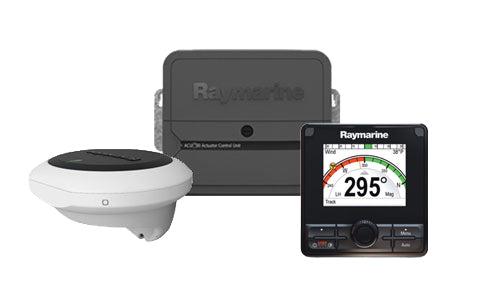

Complete solenoid pilot pack: EV-1, ACU-300, p70Rs and cabling kit
For solenoid-controlled electro-hydraulic steering systems
Works with Raymarine and third party constant-running hydraulic drives
Remote rotary rudder reference sensor included with the ACU-300
12 / 24 V dc operation, no commissioning calibration
Pilot control also available from compatible Axiom chartplotters

EV-1 Sensor Core (E70096)
ACU-300 actuator control unit (E70139)
p70Rs control head (E70329)
Evolution cabling kit (R70160)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 Pro 12 S

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 24 Chartplotter

System

Autopilot type	Evolution EV-300 Solenoid Autopilot
Suitable steering system	Solenoid-controlled electro-hydraulic steering, including constant-running hydraulic pumps
Control head	p70Rs control head (E70329)
Heading sensor	EV-1 Sensor Core (E70096)
Actuator control unit	ACU-300 actuator control unit (E70139)
Drive unit	Not included (choose a compatible drive for your steering system)
Cabling	Evolution cabling kit (R70160)
Controller alternatives	Compatible Raymarine Axiom family chartplotter (LightHouse 4 v4.4.70 or later for Axiom 2 Pro / Axiom 2 XL)

Which Evolution pack suits my boat?

Match the pack to your steering system: EV-100 Wheel or Tiller for cockpit-drive sailboats, EV-100, EV-150 or EV-200 Power for hydraulic steering depending on cylinder capacity, EV-200 Sail for below-decks mechanical steering, EV-300 for solenoid-controlled systems, EV-400 for Type 2 and Type 3 drives on larger vessels, and EV-DBW for drive-by-wire steering.

Does an Evolution autopilot need calibration?

No. Set-up is automatic: the rudder gain, rudder damping, counter rudder and compass calibration routines required by earlier autopilots are no longer necessary, and the system keeps refining itself as you use the boat. This is documented in the EV-1 installation instructions (87472).

Do I need a rudder angle reference sensor?

Raymarine highly recommends the rudder angle reference transducer (M81105) on every Evolution system for optimum performance, and it is essential on ACU-300 solenoid installations. The EV-400 Sail and Power packs include a rotary rudder feedback unit, and the ACU-300 ships with one.

How do I check the displacement ratings?

Use the vessel's fully laden displacement, which Raymarine notes is often around 20 percent above the designed displacement, when comparing your boat against a drive or pack rating.

Can I control the autopilot from my chartplotter?

Yes. Compatible controllers include the Axiom, Axiom+, Axiom Pro, Axiom 2 Pro, Axiom XL and Axiom 2 XL chartplotter families as well as the p70s and p70Rs pilot heads. Axiom 2 Pro and Axiom 2 XL need LightHouse 4 v4.4.70 or later; earlier families are supported per the compatibility tables in document 87472.
