Scanstrut CAM-MM-02 Camera Mast Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

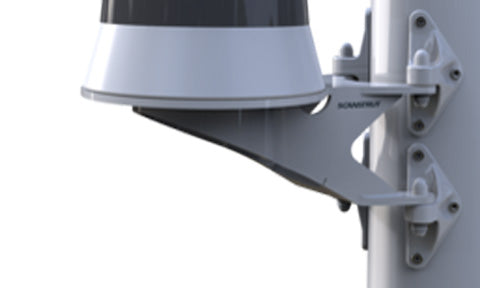

The Scanstrut CAM-MM-02 Camera Mast Mount provides secure, compact placement for your thermal or vessel camera, holding it safely and snugly against the mast in the optimum position for clear all-round vision.
It is designed to fit leading vessel cameras from FLIR, Raymarine, IRIS, ACR and more. Adjustable swivel feet suit any mast size and use a 12-point fixing with high-quality Monel rivets, while pre-drilled holes mean no marine sealant is required for a fast, clean install.
Constructed from premium marine-grade aluminium and finished with Scanstrut's unique 4-step marine paint system, it is built to last in the marine environment.
PRODUCT DETAILS
- Mounts a marine camera to a mast for an elevated view
- Suits aluminium masts from 65mm diameter with 2 to 5mm wall
- 174mm PCD plate for thermal and day cameras
- Stainless steel fixings with safety lanyard
- Camera mast mount with 4 feet
- 4x M6 stainless steel Nyloc nuts
- 8x 6mm stainless steel washers
- 8x nut covers
- M6 stainless steel bolts
- 4.8mm rivets
- Lacing eye
- Stainless steel safety lanyard
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Camera mast mount |
Dimensions
| Mounting plate diameter | 188mm (7.40") |
| Overall height | 171mm (6.73") |
| Width | 95mm (3.74") |
Fixing
| Camera fixing PCD | 174mm (6.85") |
| Camera fixing hole diameter | 6mm (0.24") |
| Minimum mast diameter | 65mm (2.56") |
| Rivet drill size | 4.8mm (3/16") |
Compatibility
| Suitable masts | Aluminium masts with 2mm to 5mm wall thickness |
